Features

  • Provides installation flexibility with 4-way convertibility to fit virtually all applications

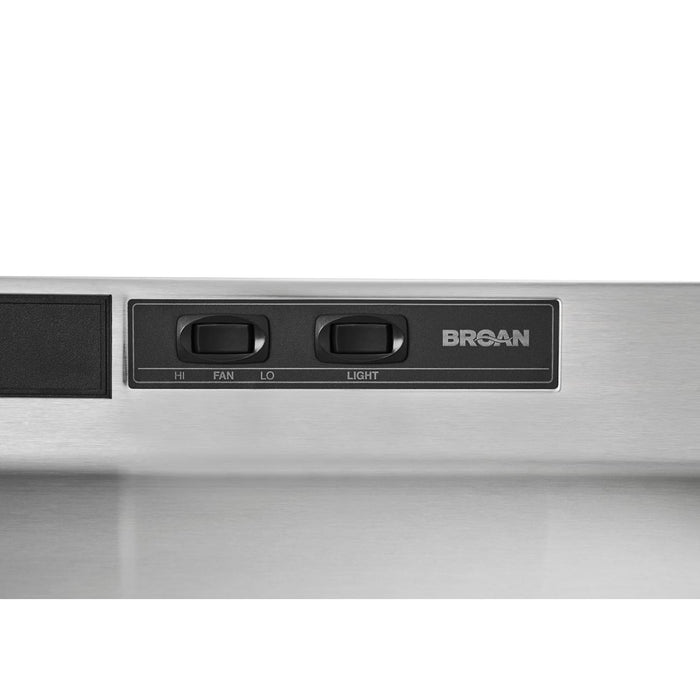

  • Simple to use rocker switches let you adjust the fan speed and the light setting separately
  • Two fan speeds help you tackle a variety of venting jobs
  • 160 - 190 CFM blower helps quickly remove smoke and other cooking odors from the air
  • Vertical and horizontal exhaust option lets you connect the ductwork to the top or rear of the range hood

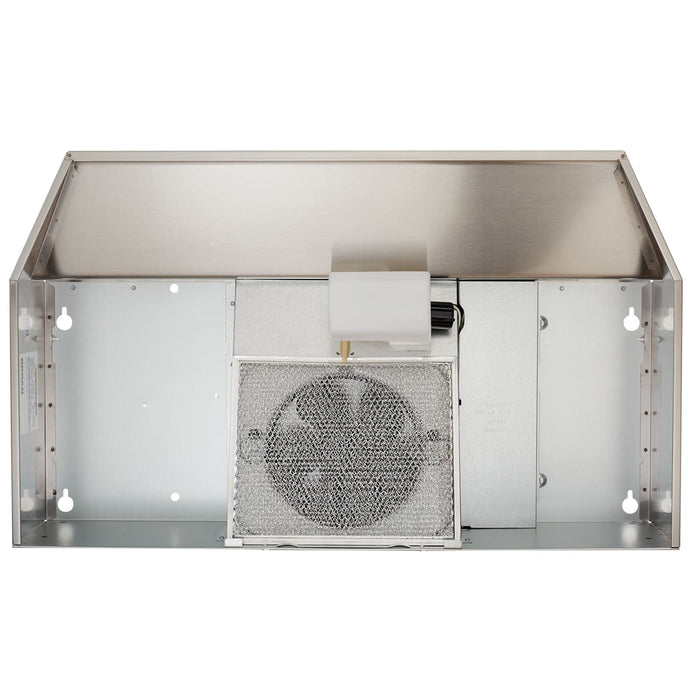

  • Removable, reusable, dishwasher-safe aluminum mesh filter for easy cleaning and maintenance; supports ductless filtration via non-ducted filter (purchase separately)
  • Uses up to a 75-Watt in incandescent light to brightly illuminate the cooking area (bulb sold separately)
  • Includes a 3-1/4 in. x 10 in. damper/adapter and a 7 in. round adapter for easy installation (7 in. damper sold separately)
  • Enclosed light and fan/filter assemblies, mitered corners and hemmed edges for good looks and easy cleaning
  • One year limited warranty
  • UL listed and HVI 2100 certified

Downloads

Broan F403004 Spec Sheet

Broan F403004 Installation Guide

Broan F403004 ADA Wiring Guide


Broan F403004 30" Convertible Under-Cabinet Range Hood, 160 CFM, Stainless Steel

  • $139.23

Free Shipping
on All Orders!

Ships within 1 - 2 business days
Free Shipping on All Orders!
No Sales Tax Outside of PA!


The F40000 series provides installation flexibility with 4-way convertibility to fit virtually all applications. The hood is designed for under cabinet use and installs as 3-1/4 in. x 10 in. ducted opening with vertical or horizontal ducting; or 7 in. round vertical ducting or as non-ducted with air recirculation. The hood features a fan designed for years of trouble free service, an easy to clean grease filter, a protective lamp lens that distributes light evenly over the cook-top and control switches for fan speed and light activation.

Specifications

  • Filter Type - Aluminum
  • Heat Sentry - No
  • HVI Certified - Yes
  • Lighting Type - Incandescent
  • UL Listed - Yes
  • ADA Compliance - Yes
  • Damper Included - No
  • ENERGY STAR certified - No
  • Light Bulb Wattage - 75
  • Light Levels - 1
  • Material - Steel
  • Nightlight Or Nightlight Setting - No
  • Ductless Recirculation Capable - Yes
  • Ductless Filter Or Kit Included - No
  • Remote Operation Capable - No
  • Speed Levels - 2
  • Switch Control Type - Rocker
  • Rated Voltage - 120
  • Color/Finish - Stainless Steel
  • Rated Amps - 2.5
  • Product Depth - 17.5"
  • Product Height - 6"
  • Product Width - 30"
  • Built-In Timer - No
  • CFM - 160 Diameter - 7"
  • Round Vent Type - Convertible Built-in
  • Duct Direction - Horizontal/Vertical
  • Wattage - 300
