Back-to-Back Toilet Installations: TOTO recommends the use of a nationally listed, double sanitary tee-wye only, in vertical waste stacks, in accordance with the stipulations noted in the majority of nationally recognized plumbing codes.
  • To maintain adequate wall gap between the back of the tank and wall, mount the floor flange at a nominal 12" rough-in distance.
  • Ultra-low high efficiency toilets require a system with adequate supplemental flows from other water usage fixtures and a 4" ID drainline with minimum 2% slope and maximum linear runs of 60ft.
  • Will comply with ADA when installed per Section 604 Water Closets and Toilet Compartments of the ADA 2010 Accessible Design Standard with seat height between 17" to 19", trip lever on approach side and flush actuation force of less than 5lbs.
  • Will comply with CSA B651 when installed per Clause 6.2.6 Toilets of the CSA 2012 Accessible Design Standard with seat height between 17" to 19", trip lever on approach side and flush actuation force of less than 5lbs.

    TOTO MS604124CUFG#01 UltraMax II Toilet Codes Compliance

    • Meets and exceeds ASME A112.19.2/CSA B45.1
    • Certifications: IAPMO(cUPC), EPA Watersense, State of Massachusetts , City of Los Angeles, and others
    • Code compliance: UPC, IPC, NSPC, NPC Canada, and others
    • Legislative Compliance: California AB715, CALGreen Title 24, City of Los Angeles Water Efficiency Ordinance, California Energy Commission Standards
    • BAA Buy American Act Compliant
    • ADA compliant (when installed with trip lever located on the approach side)
    • Complies with CA Prop 65 warning requirements.

    TOTO MS604124CUFG#01 UltraMax II Toilet Documentation

    Installation Manual - MS604124CUFG
    Spare Parts Manual - MS604124CUFG
    CAD Drawing - MS604124CUFG
    Spec Sheet - MS604124CUFG


    • TOTO MS604124CUFG#01 UltraMax II 1G One-Piece Toilet, Elongated Bowl, 1.0 GPF, Washlet+ Connection - Cotton White

    • Save $197
    Free Shipping
    on All Orders!
    Ships within 1 - 2 business days
    Free Shipping on All Orders!
    No Sales Tax Outside of PA!

    The TOTO MS604124CUFG#01 is an elongated toilet from the UltraMax II collection. This transitional, one-piece design makes the installation process much easier compared to the two-piece toilets. Comes in cotton white finish that offers a sleek and sophisticated look.

    This upgraded elongated toilet is designed to replace the TOTO MS604114CEFG#01 toilet. The DynaMax Tornado Flush 360-degree cleaning action ensures that there is no trace of any form of debris or clogging. It is designed with the TOTO T40 WASHLET electronic bidet seat compatibility configuration to easily upgrade your system whenever you are ready. A channel is engineered on the bowl surface to run your WASHLET water supply line and power cord.

    The TOTO MS604124CUFG#01 has an elongated front bowl with SoftClose seat (SS114), which increases comfort and prevents annoying noise from slamming and damaging the cover. This toilet also comes ready for installation in a 12" rough-in but can be modified with an adapter (sold separately) for a 10" or 14" rough-in.

    This ADA-compliant toilet has a right-hand chrome trip lever and meets the standards for EPA WaterSense and the CEC and CALGreen specifications of California. Covered under TOTO's one-year limited warranty, this toilet bowl will give you peace of mind for any manufacturing defects.

    TOTO MS604124CUFG#01 UltraMax II Toilet Features

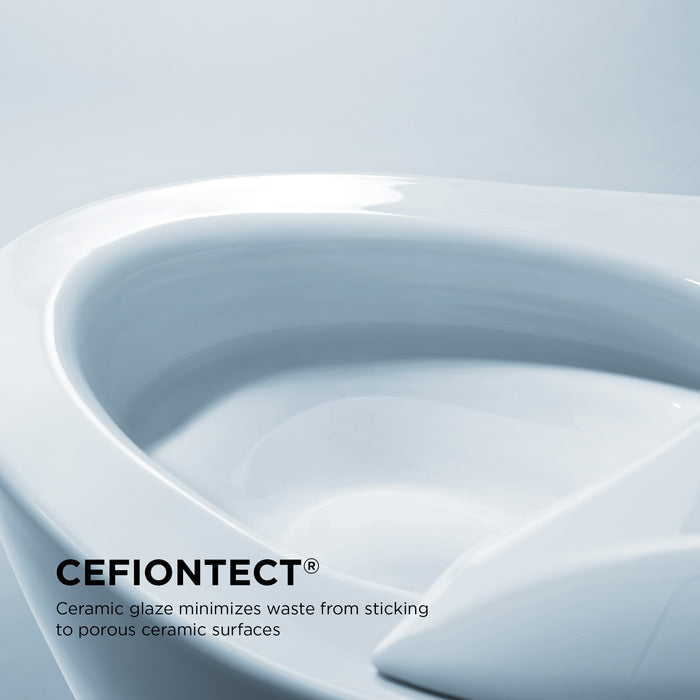

    • CEFIONTECT Glaze prevents debris from sticking to ceramic surfaces, making them easier to clean

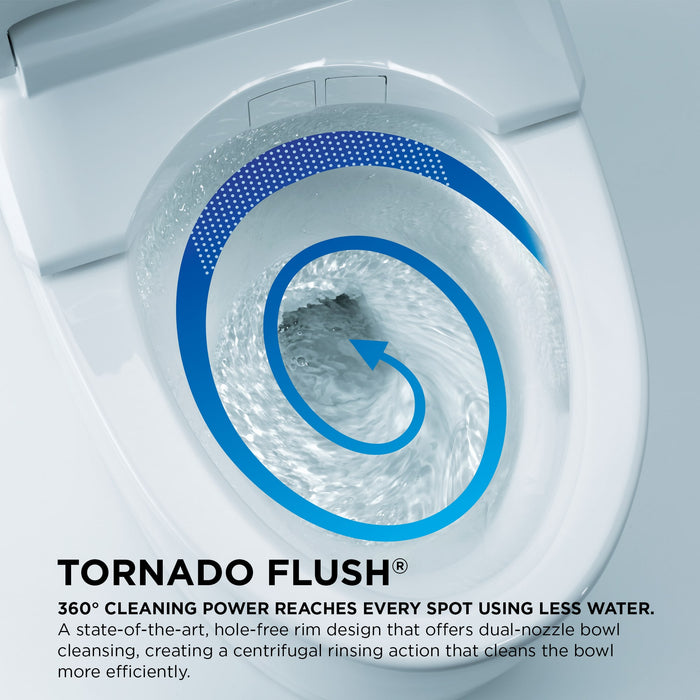

    • Tornado Flush Flushing System, which siphons water with two powerful nozzles, harnessing the power of water and gravity to maximize cleaning and use water more efficiently.
    • Computer Designed, Fully Glazed Trapway
    • Elongated Bowl with SoftClose Seat

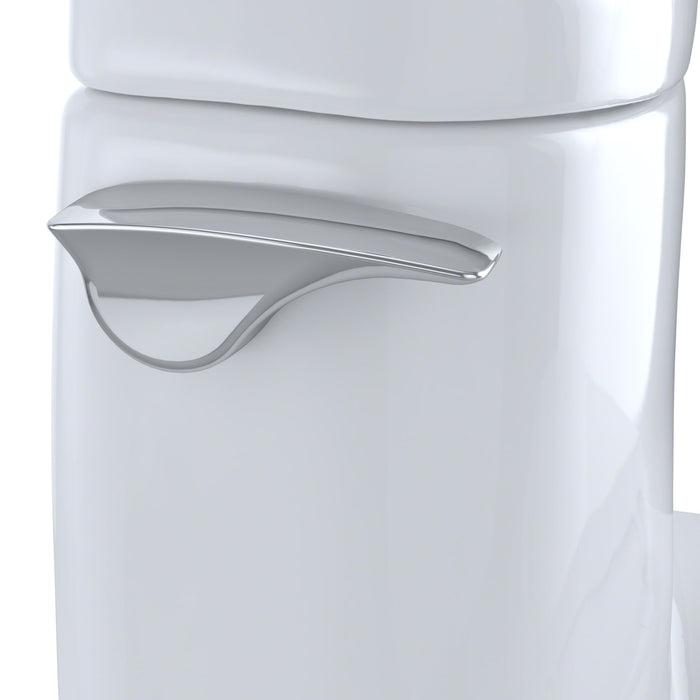

    • Chrome Trip Lever Included
    • Universal Height
    • ADA Compliant
    • 12" Rough-In
    • Wax ring, seat, and supply lines sold separately

    TOTO MS604124CUFG#01 UltraMax II Toilet Specifications

    • Water Use 1.0 GPF/3.8LPF
    • Flush System TORNADO FLUSH
    • Min. Water Pressure 8 psi (static)
    • Water Surface 7-1/8" x 9-1/8"
    • Trap Diameter 2-1/8"
    • Rough-in 12"
    • Trap Seal 2-1/8"
    • Warranty One Year Limited Warranty
    • Material Vitreous china
