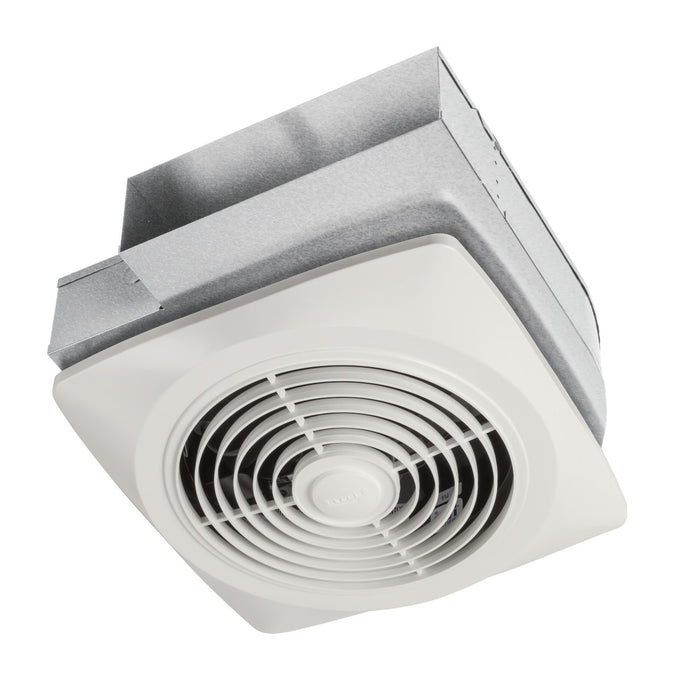

The Broan 160 CFM Side-Discharge Exhaust Fan can be mounted on either the ceiling or the wall to eliminate humidity and smoke from recreation rooms and workshops or to help remove cooking odors from kitchens. The fan is 8 in. in diameter and features a low-profile white grille that can be painted to match your decor. A built-in damper helps prevent back drafts.

Broan 503 8" 160 CFM Side Discharge Ventilation Fan Features

  • 160 CFM, Powerful ventilation designed for larger rooms or master baths, eliminates moisture, pollutants, and odors form larger rooms
  • 5.0 Audible Sones for privacy while using in any room
  • Built-in damper minimizes backdrafts for energy efficiency
  • Fits 3-1/4" x 10" duct

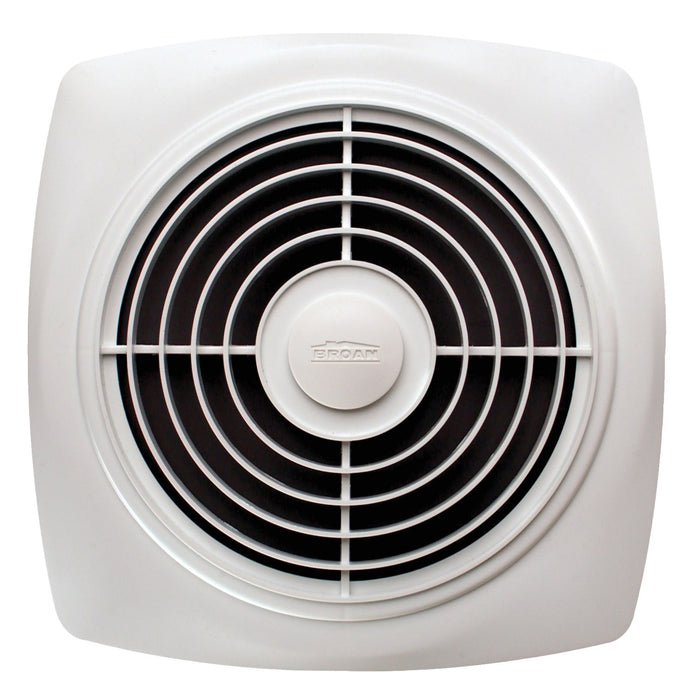

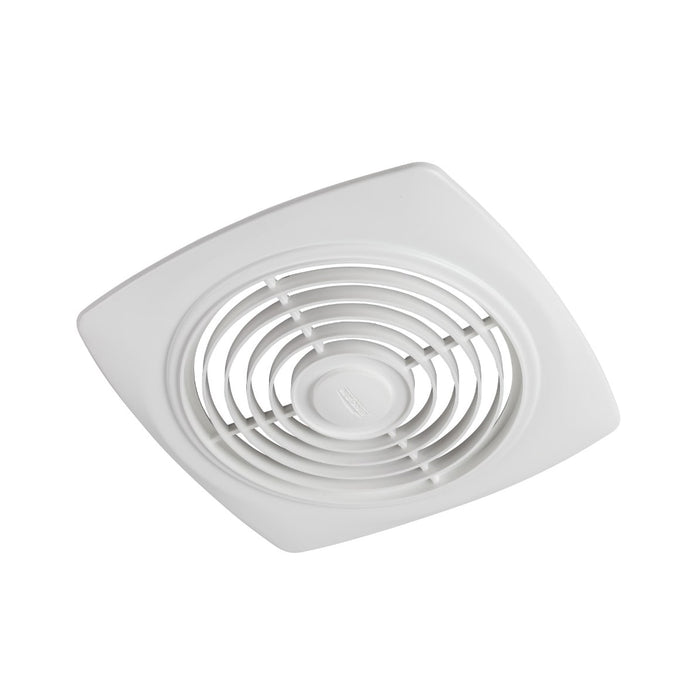

  • Paintable white grilles blends in with any decor
  • UL Listed
  • Compatible with Overture Connected IAQ System
  • Galvanized steel housing for superior durability

Broan 503 8" 160 CFM Side Discharge Ventilation Fan Documentation


Broan 503 8" 160 CFM Side Discharge Ventilation Fan with White Square Plastic Grille, 5.0 Sones

  • $130.97

Free Shipping
on All Orders!

Ships within 24 hours
Free Shipping on All Orders!
No Sales Tax Outside of PA!


Broan 503 8" 160 CFM Side Discharge Ventilation Fan Specs

CFM 160
Color Finish White
ENERGY STAR certified No
Grille Length 11.5
Grille Width 11.5

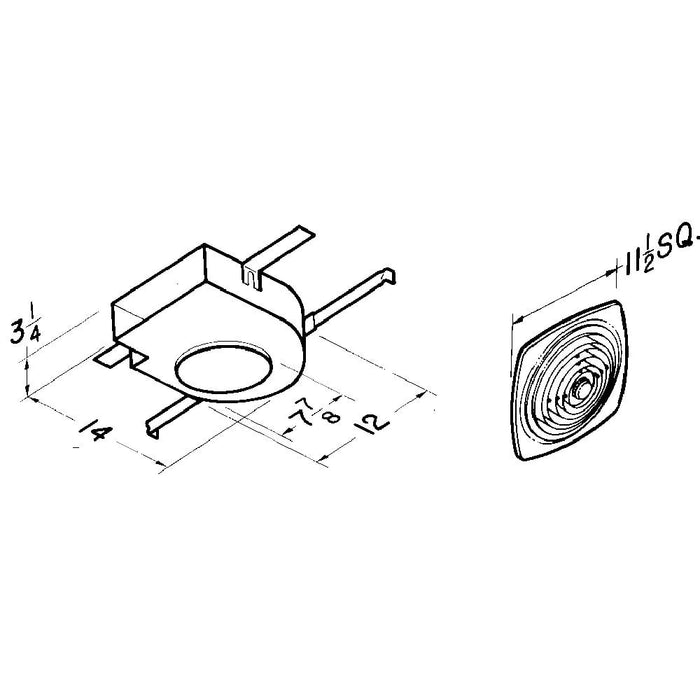

Housing Dimensions 14" x 12" 3-1/4"
Sound Level (Sones) 5
UL Listed Yes
Grille Finish White
Humidity Sensing No
Motion Sensing No
Motor Engineered For Continuous Operation No
Night Light No
Radiation Damper Available No
Room Side Installation No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit No
Heater Wattage 0
Rated Amps 1.5
Voltage 120
Can Be Used To Comply With Title 24 No
Minimum Construction Space Required 2" x 4"
Manufacturer Warranty 1 Year
High Efficiency Luminaire No

Broan NuTone
