The Broan Flex Series Ventilation fan with CleanCover grille clears the air with a low profile, streamline design. Say good-bye to unsightly standard grilles that catch dust and debris and can be a hassle to clean. With CleanCover, your fan cover stays cleaner for longer with fewer vent slots to clean and design that coordinates with any decor.
Designed for retrofit, remodel and replacement, this fan features hassle-free installation from the room side, for spaces with no attic access. The SnapFit Flange Kit, EzDuct connector and FoldAway mounting ears make it flexible to almost any installation challenge, especially for rooms on the first floor or basement floor of the home.
Each carton comes complete with a precise template for accurate housing opening ceiling cut. The SnapFit Flange Kit provides a self-trimming finish to cover a rough cut.
Broan NuTone AE110K Exhaust Fan Features
- 110 CFM, Powerful ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 1.0 Sones for whisper quiet operation
- Broan Flex Series ventilation fans easily install from the room side, which makes it possible to retrofit to spaces with no attic access

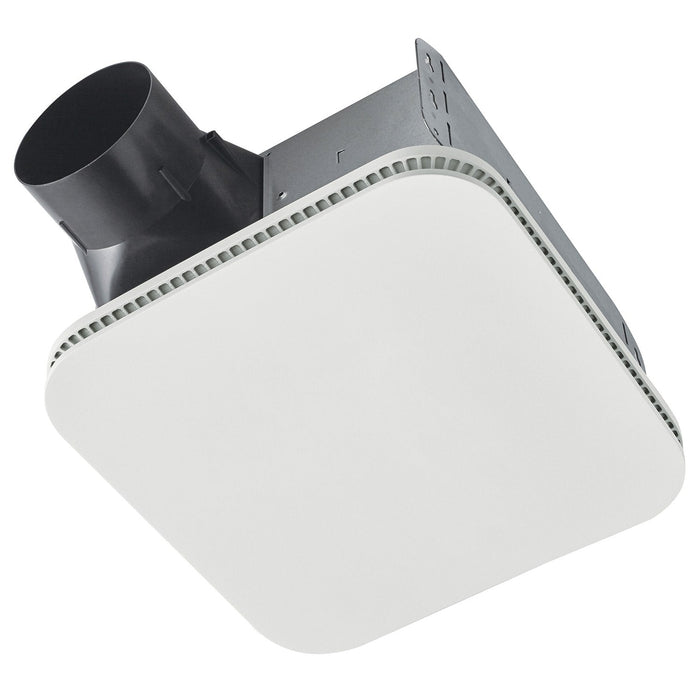

- CleanCover grille stays cleaner longer with fewer vent slots to collect dust
- FoldAway mounting ears precisely positioned the fan for new construction applications or fold flat for retrofit installations with no attic access
- EZDuct connector creates an air tight seal while connecting to the duct from below the ceiling
- 30% more airtight installed performance vs standard ventilation fans
- SnapFit flange kit offers flexible installation for new construction or retrofit upgrades
- ENERGY STAR certified
- 4 in. duct connector with damper
- Fits 2 in. x 6 in. ceiling construction
- UL listed for use in insulated ceilings (type I.C.) and HVI-2100 certified for safety
- UL listed for use over bathtubs or showers when connected to GFCI-protected branch circuit (not included)
- Compatible with Overture Connected IAQ System
Broan NuTone AE110K Exhaust Fan Documentation
Broan NuTone AE110K - 110 CFM Bathroom Exhaust Fan with CleanCover Grille, ENERGY STAR
No Sales Tax Outside of PA!
| CFM | 110 |
|---|---|
| Color Finish | White |
| Duct Size | 4 |
| ENERGY STAR certified | Yes |
| Grille Length | 12.25 |
| Grille Width | 12.25 |

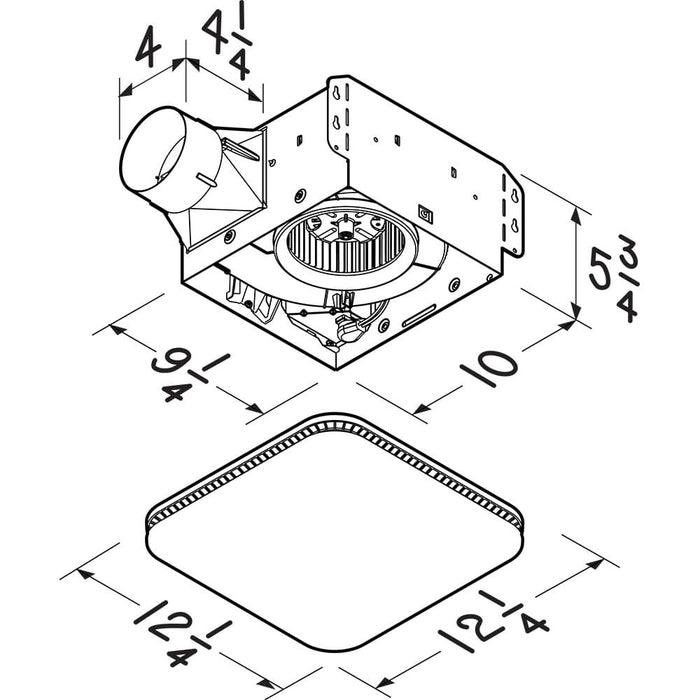

| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Sound Level (Sones) | 1 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 105 |
| Rated Amps | 0.3 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2" x 6" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
