The LP110 LoProfile fan is designed for installations where conventional ventilation simply won't fit. When a multi-family application requires it, the LoProfile fan is narrow enough to be installed in a wall between 2 x 4 studs. When plumbing or electrical obstructions are found behind the drywall in ceiling remodel applications, the LoProfile fan can still fit without having to move anything, and that means most any room with space constraints can have powerful, quiet, efficient ventilation.

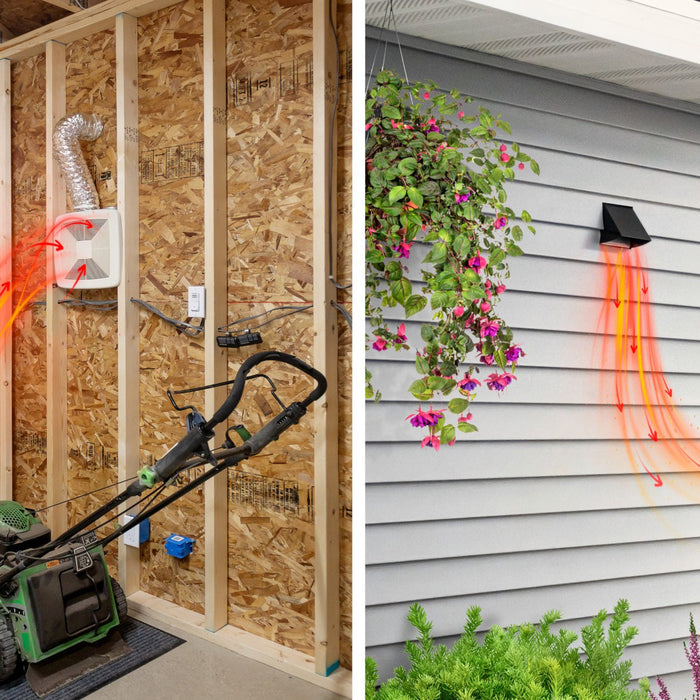

In residential garage applications, use the LP110 to get rid of heat, humidity and unwanted smells. Mount in the wall between 2 x 4 studs and easily duct to a wall cap. (Wall cap and ducting not included.)
Broan Nutone LP110 Ceiling/Wall Exhaust Fan Features
- 110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 1.5 Sones for Quiet performance, enough sound to know your fan is on.
- 4" oval duct connection for installation flexibility, allows for ceiling or wall mounting
- ENERGY STAR Certified efficient operation for lower utility bills
- UL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only)
- Manages moisture in bathrooms up to 100 sq. ft.
- Brighter white grilles blend in to match most common ceiling paint
- Fight heat, humidity buildup and unwanted smells inside the garage
- Ventilate a one car garage, either attached or detached from the home
- Use for spot ventilation in a larger garage near a work bench, car, garbage can, lawn mower, or other spaces within the garage
- Tested and approved for extreme hot and cold weather
Broan Nutone LP110 Ceiling/Wall Exhaust Fan Documentation

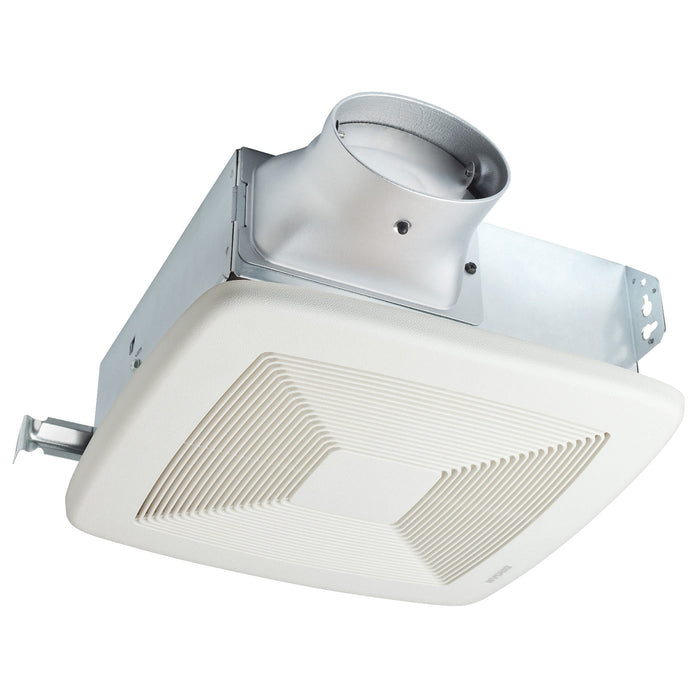

Broan Nutone LP110 LoProfile 110 CFM Ceiling/Wall Exhaust Fan for Bathroom or Garage with 4" Oval Duct
No Sales Tax Outside of PA!
CFM | 110 |
---|---|
Color Finish | White |
Duct Size | 4 |
ENERGY STAR certified | Yes |
Grille Length | 13 |
Grille Width | 14 |

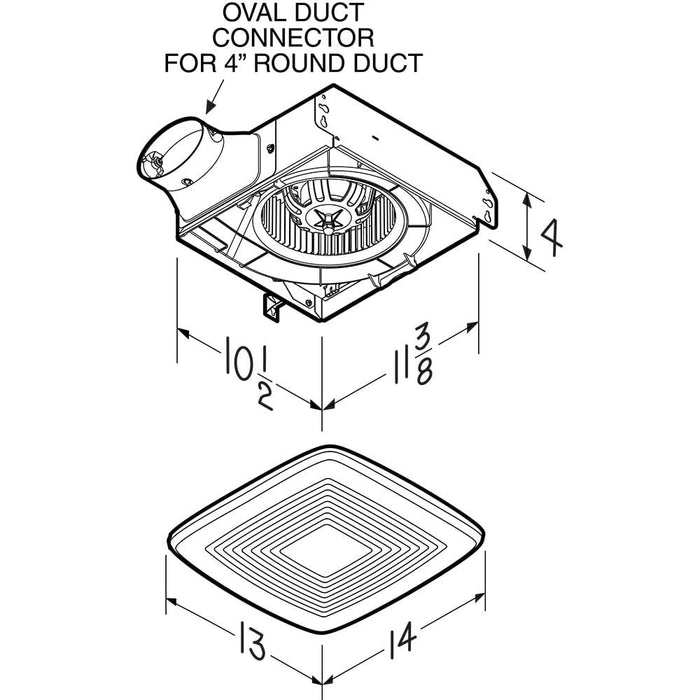

Housing Dimensions | 10-1/2" x 11-3/8" x 4" |
Sound Level (Sones) | 1.5 |
UL Listed | Yes |
Grille Finish | White |
Humidity Sensing | No |
Motion Sensing | No |
Motor Engineered For Continuous Operation | Yes |
Night Light | No |
Radiation Damper Available | Yes |
Room Side Installation | No |
UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
Heater Wattage | 0 |
Recommended Room Size (Sq Ft) | 105 |
Rated Amps | 0.3 |
Voltage | 120 |
Can Be Used To Comply With Title 24 | No |
Minimum Construction Space Required | 2" x 4" |
Manufacturer Warranty | 1 Year |
High Efficiency Luminaire | No |
