This under-cabinet convertible range hood features a clean, contemporary shape to complement nearly any kitchen design. Equipped with the exclusive Broan Captur system, which combines advanced blower design with new filter technology, this 450 Max Blower CFM-rated hood provides 98.4% removal of smoke and odor to protect your home and family from airborne pollutants caused from cooking.
The quiet-running Glacier is also designed with smooth flow technology, which streamlines the path of air for improved efficiency and noise reduction. The luxury of an LCD display and deluxe micro-mesh filters will make any meal preparation delightful.
Broan Nutone BCDJ130WH Range Hood Overview
- The Captur system's advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Three-speed blower control exhausts at a strong 450 Max Blower CFM
- Smooth-flow blower wheel design and high flow filters ensure quiet, less than 0.5 Sones operation at normal speed
- Three-speed electronic pushbutton control incorporates an LCD display to show hood status for fan and light setting, filter clean reminder, Heat Sentry and delay off
- Bright 3-level LED modules are supported by a 3-year warranty, illuminate evenly and are tested in cooking environments to ensure long life without dimming. Color Temperature 3000 K
- Broan Heat Sentry detects excessive heat and adjusts the blower speed to prolong the life of the product and provide proper ventilation

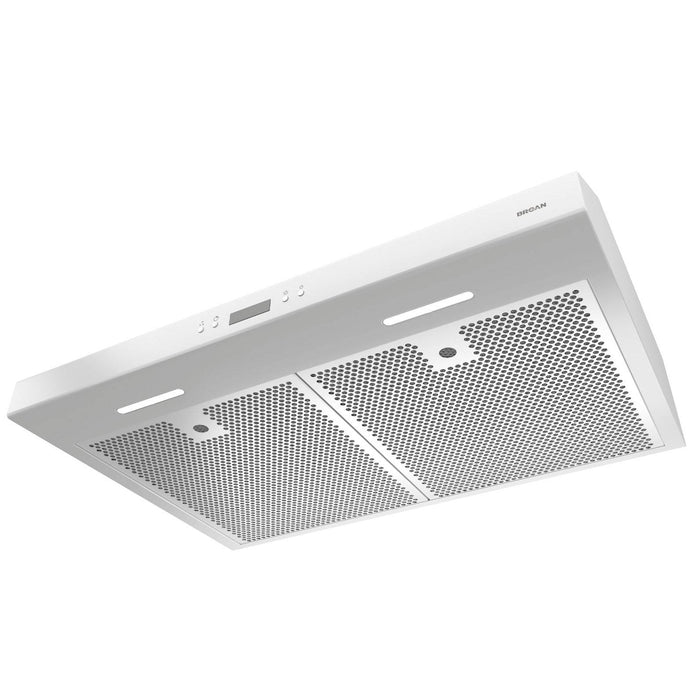

- Dishwasher-safe, deluxe micro-mesh filters provide highly efficient grease removal and patterned cover provides a decorative complement to the hood design.
- The filter clean reminder ensures they will always maintain a high level of efficiency
- EZ1 system makes it easy for single-person installation in less than half the time of traditional methods
- ADA compliant, remote operation is possible using a standard UL approved wall switch (not included)
- Compatible with optional Broan Make-up Air Dampers (sold separately) to fit 6", 8" or 10" ducting and help to balance the air pressure when the range hood is in use, keeping your environment comfortable and meeting local codes
- Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
- Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
Broan Nutone BCDJ130WH Range Hood Documentation

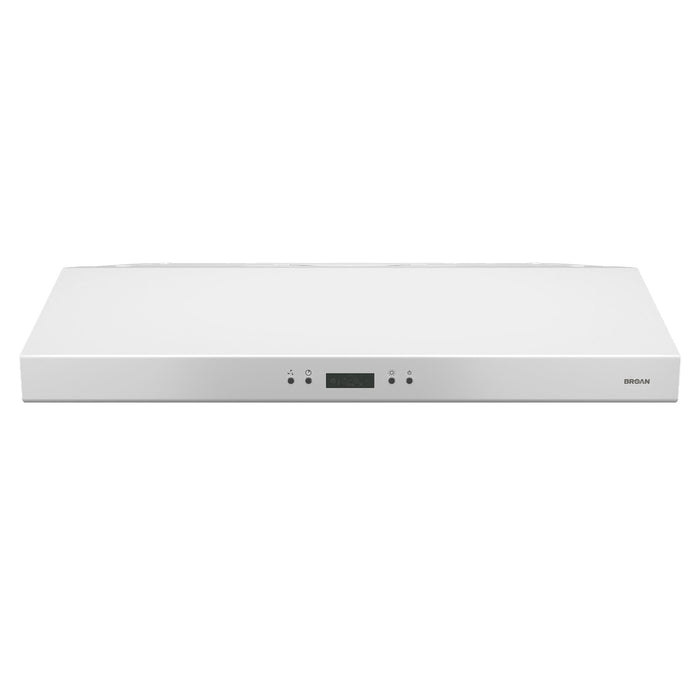

Broan Nutone BCDJ130WH Glacier 30" 450 CFM 5.5 Sones White Under-Cabinet Convertible Range Hood
Free Shipping!
Frequently Asked Questions
• What if my order arrives damaged?
While we take great care in the packaging and handling of orders, we ask that customers inspect all shipments within 48 hours of delivery, and in the rare event that your order arrives damaged, please send us an email with a photo showing the damages (so we can file a claim with the carrier), and let us know whether you prefer a free replacement or a refund.
• What if I need to return something?
We accept returns within 30 days of delivery. Customers are responsible for return shipping unless we sent the wrong item, the product is defective, or it was damaged during transit. All returns are subject to a 15% restocking fee unless we sent the wrong item, the product is defective, or it was damaged during transit. The restocking fee is what we get charged by the manufacturer – it is not to discourage returns. To return an item, email us, and we'll guide you through the process.
• Why do you ask for phone numbers during checkout?
Some shipping carriers, especially those handling freight, require a phone number to coordinate your delivery. We respect your privacy and guarantee that any information you provide will never be shared with third parties, except for shipping purposes.
| Filter Type | Deluxe Micro Mesh |
|---|---|
| Heat Sentry | Yes |
| HVI Certified | Yes |
| Lighting Type | LED |
| Sound Level (Sones) | 0.5 |
| UL Listed | Yes |
| ADA Compliance | Yes |
| Damper Included | No |
| ENERGY STAR certified | No |
| Light Bulb Wattage | 4.5 |
| Light Bulbs Included | Yes |
| Light Levels | 3 |
| Material | Steel |
| Nightlight Or Nightlight Setting | No |
| Ductless Recirculation Capable | Yes |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Speed Levels | 3 |
| Switch Control Type | Push Button with LCD |
| Rated Voltage | 120 |
| Boost Mode | Yes |
| Color Finish | White |
| Rated Amps | 1.4 |

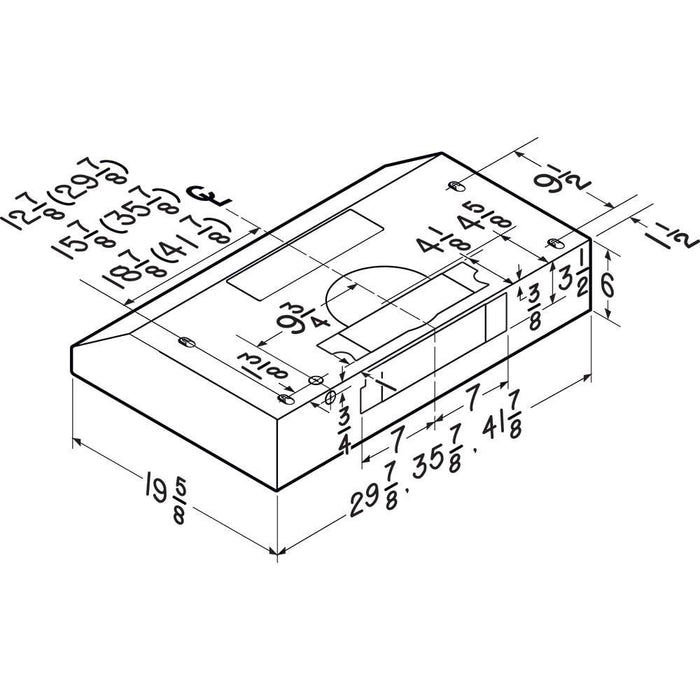

| Product Depth | 19.625" |
| Product Height | 6" |
| Product Width | 30" |
| Built-In Timer | No |
| Capture Efficiency | 98.5 |
| CFM | 450 Max |
| Diameter | 7" Round |
| Vent Type | Convertible Built-In |
| Duct Direction | Horizontal/Vertical |
| Bulb (Recommended Type) | Integrated LED Module |
| Light Color Temp | 3000 |
| Manufacturer Warranty | 1 Year, 3 Year LED module |
| Wattage | 168 |
