Broan AE50110DC Flex DC Series Exhaust Bath Fan, ENERGY STAR offers easy, room side installation, with "No Attic Access Required". Ceiling mounted ventilation fan features foldable mounting ears and EZ Duct connector for easy installation. New duct damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts. This energy efficient fan operates at a selectable CFM range of 50-80-110 at a quiet operation of <0.3-0.4-0.9 sones.
Broan AE50110DC Bathroom Exhaust Fan Features
- FlexFlow technology, select between 50, 80 or 110 CFM
- Quiet operation at <0.3-0.4-0.9 sones
- Powerful ventilation reduces humidity to quickly eliminate fogged mirrors and manage moisture, so your vision will always be clear and your surroundings will always be comfortable
- Retrofit installations can be done entirely from the room-side – no attic access required. This means a faster, easier installation, so you can move on to something else
- Flex DC fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts
- Plug in, permanently lubricated, brushless DC motor – engineered for continuous operation
- Can be installed in a wall if mounted 8-ft. or more above the floor
- UL Listed for use over tubs and showers with a GFCI circuit; so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
- ENERGY STAR certified product
- Compatible with Overture Connected IAQ System
Broan AE50110DC Bathroom Exhaust Fan Downloads
Broan AE50110DC Bathroom Exhaust Fan, ENERGY STAR, 50-110 CFM
Free Shipping!
Frequently Asked Questions
• What if my order arrives damaged?
While we take great care in the packaging and handling of orders, we ask that customers inspect all shipments within 48 hours of delivery, and in the rare event that your order arrives damaged, please send us an email with a photo showing the damages (so we can file a claim with the carrier), and let us know whether you prefer a free replacement or a refund.
• What if I need to return something?
We accept returns within 30 days of delivery. Customers are responsible for return shipping unless we sent the wrong item, the product is defective, or it was damaged during transit. All returns are subject to a 15% restocking fee unless we sent the wrong item, the product is defective, or it was damaged during transit. The restocking fee is what we get charged by the manufacturer – it is not to discourage returns. To return an item, email us, and we'll guide you through the process.
• Why do you ask for phone numbers during checkout?
Some shipping carriers, especially those handling freight, require a phone number to coordinate your delivery. We respect your privacy and guarantee that any information you provide will never be shared with third parties, except for shipping purposes.
Broan AE50110DC Bathroom Exhaust Fan Specs
| CFM | 50-80-110 |
|---|---|
| Color Finish | White |
| Duct Size | 4 |
| ENERGY STAR certified | Yes |
| Grille Length | 11.5 |
| Grille Width | 12 |

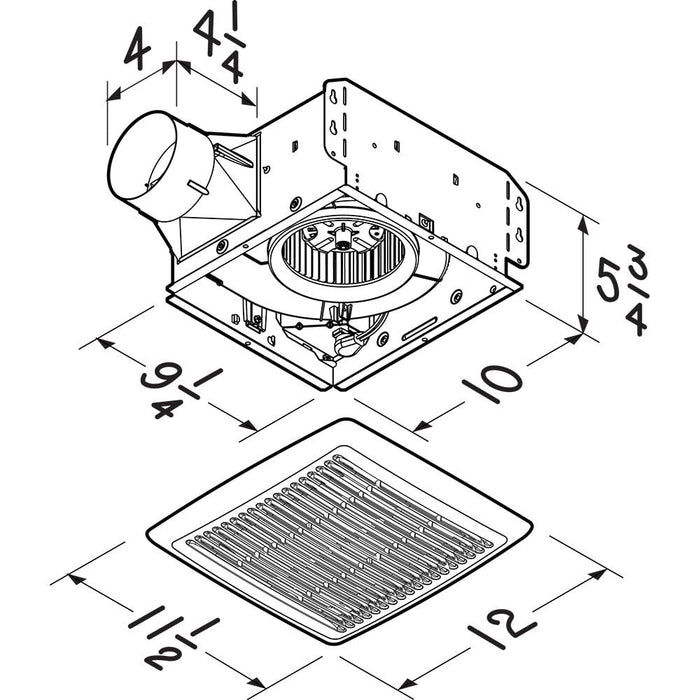

| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Sound Level (Sones) | 0 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 105 |
| Rated Amps | 0.3 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2" x 6" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
