The luxury of an LCD display and deluxe micro-mesh filters will make any meal preparation delightful. And, the Glacier range hood's contemporary shape complements any kitchen design. The Captur system's advanced blower design features a forward positioned centric inlet to remove smoke and odor faster. Three-speed blower control exhausts at a strong 400 CFM.
  • Smooth-flow blower wheel design and high flow filters ensure quiet, less than 0.5 sones operation at normal speed
  • Three-speed electronic pushbutton control incorporates an LCD display to show hood status for fan and light setting, filter clean reminder, Heat Sentry and delay off
  • Broan Heat Sentry detects excessive heat and adjusts the blower speed to prolong the life of the product and provide proper ventilation

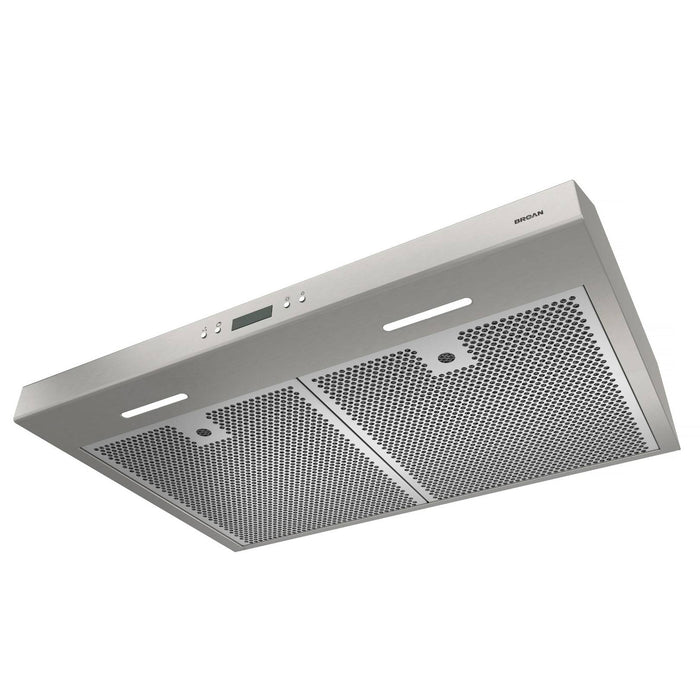

  • Dishwasher-safe, deluxe micro-mesh filters provide highly efficient grease removal and patterned cover provides a decorative complement to the hood design.
  • The filter clean reminder ensures they will always maintain a high level of efficiency
  • EZ1 brackets make it easy for single-person installation in less than half the time of traditional methods
  • ADA compliant, remote operation is possible using a standard UL approved wall switch
  • Compatible with optional Broan Make-up Air Dampers (sold separately) to fit 6", 8" or 10" ducting and help to balance the air pressure when the range hood is in use, keeping your environment comfortable and meeting local codes
  • Non-duct capable with use of charcoal filters, sold separately. Hidden louvers on top of hood exhaust away from cabinetry
  • Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)

 Broan Nutone BCDJ136SS Range Hood Documentation

Download Spec Sheet
Download Installation Guide


Broan Nutone BCDJ136SS 36-Inch Convertible Under-Cabinet Range Hood with Heat Sentry, 400 CFM, Stainless Steel

  • $506.51 Save $160

Free Shipping
on All Orders!

Ships within 1 - 2 business days
Free Shipping on All Orders!
No Sales Tax Outside of PA!


Filter Type Deluxe Micro Mesh
Heat Sentry Yes
HVI Certified Yes
Lighting Type LED
Sound Level (Sones) 0.5
UL Listed Yes
ADA Compliance Yes
Damper Included No
ENERGY STAR certified No
Light Bulb Wattage 4.5
Light Bulbs Included Yes
Light Levels 3
Material Steel
Nightlight Or Nightlight Setting No
Ductless Recirculation Capable Yes
Ductless Filter Or Kit Included No
Remote Operation Capable No
Speed Levels 3
Switch Control Type Push Button with LCD
Rated Voltage 120
Boost Mode No
Rated Amps 1.4

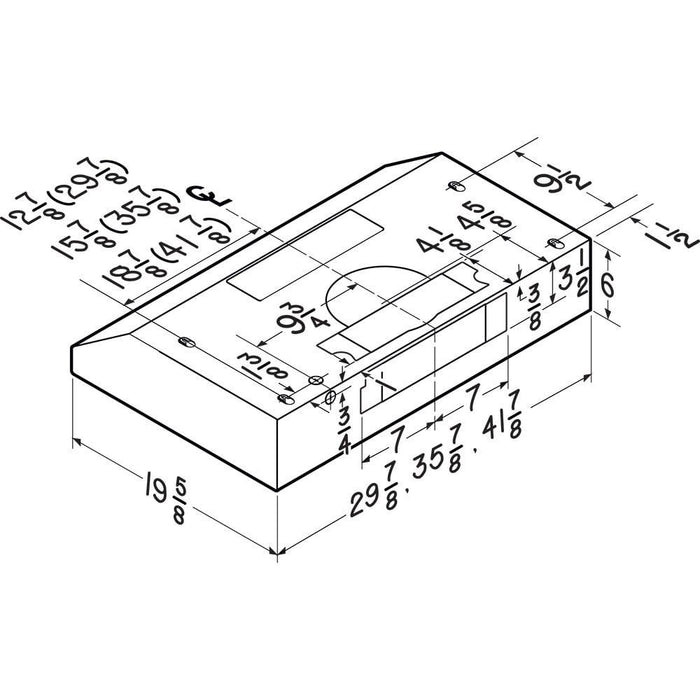

Product Depth 19.625"
Product Height 6"
Product Width 36"
Built-In Timer No
Capture Efficiency 98.5
CFM 400
Diameter 7" Round
Vent Type Convertible Built-In
Duct Direction Horizontal/Vertical
Bulb (Recommended Type) Integrated LED Module
Light Color Temp 3000
Manufacturer Warranty 1 Year, 3 Year LED module
Wattage 168

Broan NuTone
