Broan Technology
Permanently Lubricated: This fan features a motor that is permanently lubricated. The result is a product with a long service life and lower maintenance costs. Incandescent Lighting: We know that a comfortable and well-lit space is important to you as your prepare for your day. Illuminate your bathroom with the warm light of an incandescent bulb. High Sones: We know that comfort and ambience matter in your bathroom. This fan produces 4.5 sones of sound output while the fan is in operation. Mid CFM Capacity: This fan has an ample 100 CFM (cubic feet per minute) of clearing capacity designed for medium sized bathrooms. Controlling humidity in your bathroom extends the life of your decor and makes for a more hospitable space to prepare for the day ahead.
Product Variations:
- HFL695: 100 CFM Fan, Heater, Light
- 696 (This Model): 100 CFM Fan, Light

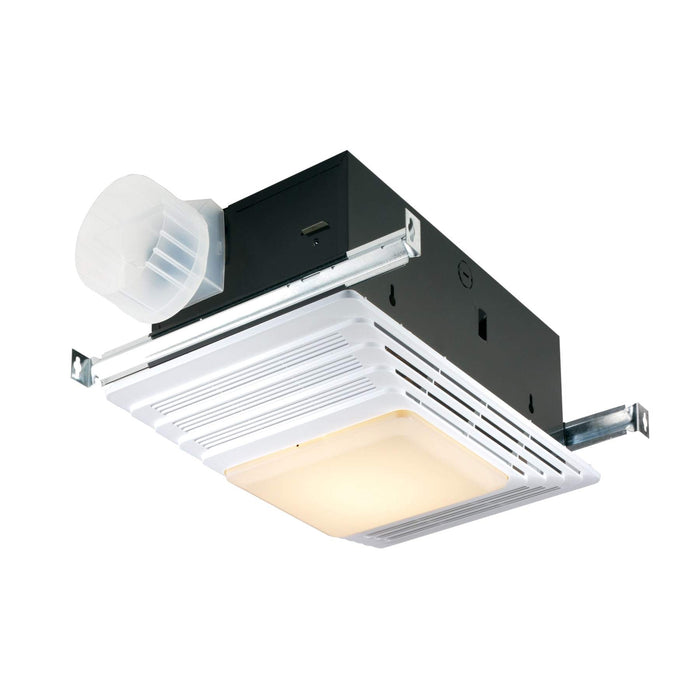

Broan Nutone 696 Ceiling Fan/Light Documentation
Broan Nutone 696 Ceiling Fan/Light, Same As Model 657 Except 100 CFM 4.5 Sones, Includes Acoustic Insulation
No Sales Tax Outside of PA!
Broan Nutone 696 Ceiling Fan/Light Specifications
| CFM | 100 |
|---|---|
| Color Finish | White |
| Duct Size | 4 |
| ENERGY STAR certified | No |
| Grille Length | 16.75 |
| Grille Width | 10.625 |

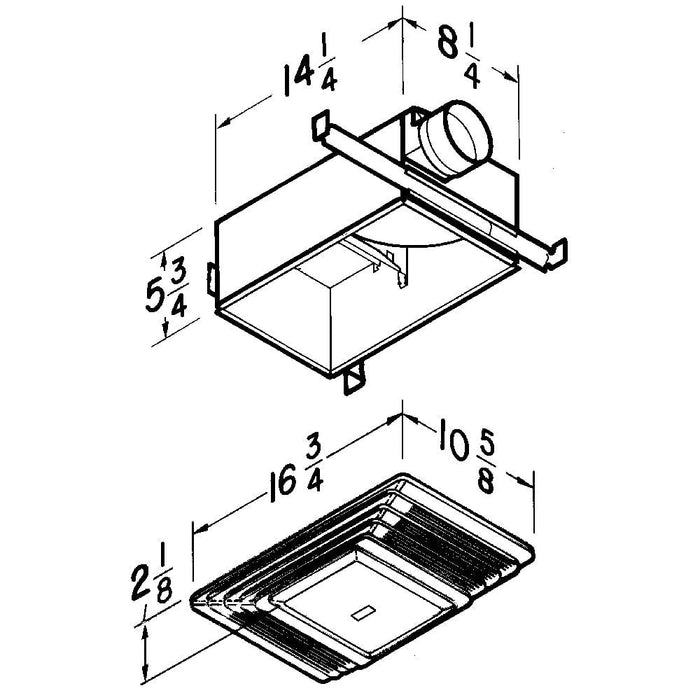

| Housing Dimensions | 14-1/4" x 8-1/4" x 5-3/4" |
| Sound Level (Sones) | 4.5 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Light Bulb Quantity | 1 |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | No |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | No |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 90 |
| Rated Amps | 2 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Bulb (Recommended Type) | 100W bulb |
| Minimum Construction Space Required | 2" x 6" |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
