TOTO designs simple elegant solutions for fundamental human needs such as basic hygiene. That means a TOTO bathroom is a clean efficient place where every innovation, every detail, is designed with you in mind. Now TOTO is also joining the movement for the conservation of energy, water, and other resources.

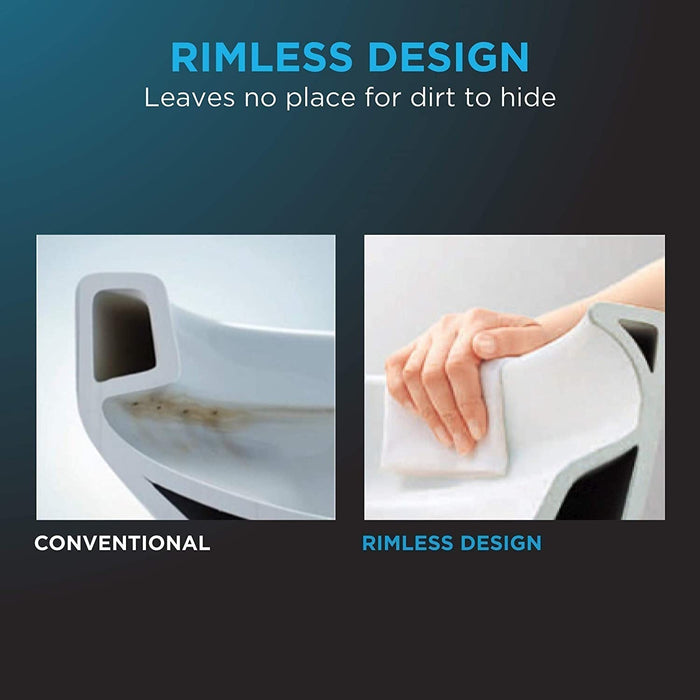

This TOTO Drake two-piece elongated toilet with 1.28 GPF Tornado Flush and CEFIONTECT glaze is a masterfully engineered high profile toilet. It features TOTO's Tornado Flush - a rimless, hole-free design with dual-nozzles that creates a centrifugal washing action that assists in rinsing the bowl more efficiently.
This version of the TOTO Drake also includes CEFIONTECT, a layer of exceptionally smooth glaze that minimizes waste from sticking to the ceramic. CEFIONTECT, coupled with Tornado Flush, assists in reducing the frequency of cleanings, minimizing the usage of water, chemicals, and time required for maintenance. Comes with a left-hand chrome trip lever, and meets the standards for EPA WaterSense, and California's CEC and CALGreen requirements.
TOTO CST786CEFG#01 Drake Two-Piece Toilet Specifications
- Total Height: 30.6875 in.
- Bowl Height: 16.125 in.
- Depth: 28.375 in.
- Flush Valve Size: 3 in.
- Gallons Per Flush: 1.28
- Product Weight: 91.5 lbs.
- Rough In: 10 in.
- Trap Diameter: 2.125 in.
- Width: 18.625 in.
- Seat Included: No
- Bowl Shape: Elongated
- Universal Height
- Installation Type: Floor Mounted
- Material: Vitreous China
- Trip Lever Placement: Left
- Water Efficient: Yes
- Flush Technology: Tornado Flush
- Approved for Commercial Use: Yes
- CA Drought Compliant: Yes
- Collection: Drake
- Manufacturer Warranty: 1 Year Limited
- TX Drought Compliant: Yes
- WaterSense Certified: Yes
- Finish: Cotton White
TOTO CST786CEFG.10#01 Drake Two-Piece Elongated 1.28 GPF Universal Height Toilet for 10" Rough in
No Sales Tax Outside of PA!
The Drake universal height bowl and tank set includes a tank to bowl gasket, tank to bowl hardware, and toilet bolt caps. Additional items needed for installation and use must be purchased separately: wax ring, toilet mounting bolts, water supply lines, and toilet seat.
Designed for 10" rough in installations.
Powerful Flushing System:
TOTO's Tornado Flush flushing system generates 360-degrees of cleaning power that reaches every spot, thus minimizing the time and resources needed for routine cleaning.
Advanced Clean Technology:
TOTO's CEFIONTECT ultra-smooth ceramic glaze minimizes waste from sticking to porous ceramic surfaces.
Improved Water Spot:
A large water spot that reduces the places where waste can cling to the bowl.
Water Conservation:
TOTO 1.28 GPF toilet models save approximately 5 gallons of water a day and 1,825 gallons or more per year! *An average American flushes five times a day at home. Assuming an average household of 3.2 people over 365 days.
Universal Height:
Universal Height offers toilets at a more manageable height, about an inch taller than the standard height, making it easier and more accessible for a wider range of users.
Water Conservation:
The 1.28 GPF WaterSense certified Drake enables you to save water without worrying about diminished performance. Additionally, the Drake features a wide 3 inch flush valve and a siphon jet bowl that gets the job done in one flush.
Stylish Modern Design:

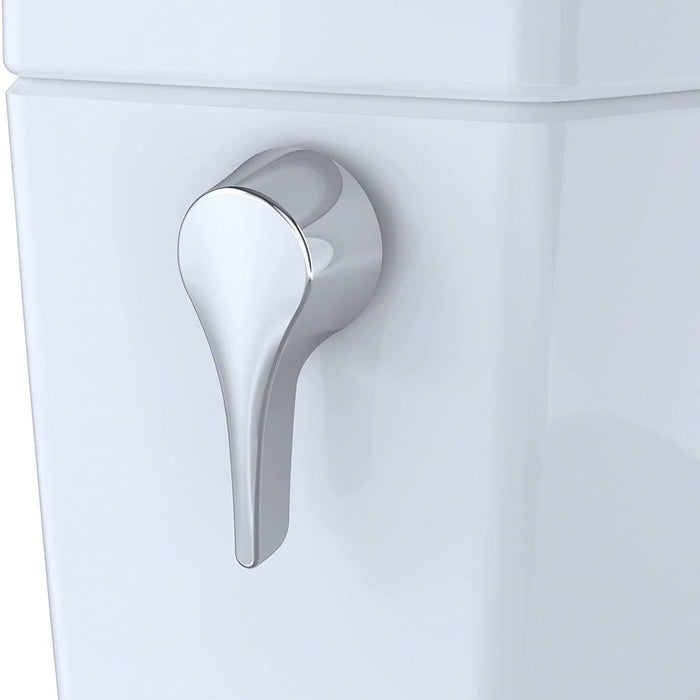

Update your bathroom oasis with this stylish design that couples well with any bathroom decor. The elongated bowl provides added space for comfort. The toilet fits into 10 inch rough-in installations and has a left-hand chrome plated trip lever.
Complete the Ensemble:
Finish your purchase with the addition of a TOTO SoftClose seat or upgrade to a WASHLET bidet seat. Drake tank and bowl with hardware included. Purchased Separately: Wax ring, flange bolts, and water supply lines.
- Designed with quality materials to ensure longevity and durability.
- Complete the set with a SoftClose seat or upgrade with an electronic Washlet bidet seat.
TOTO CST786CEFG.10#01 Drake Toilet Files & Documentation

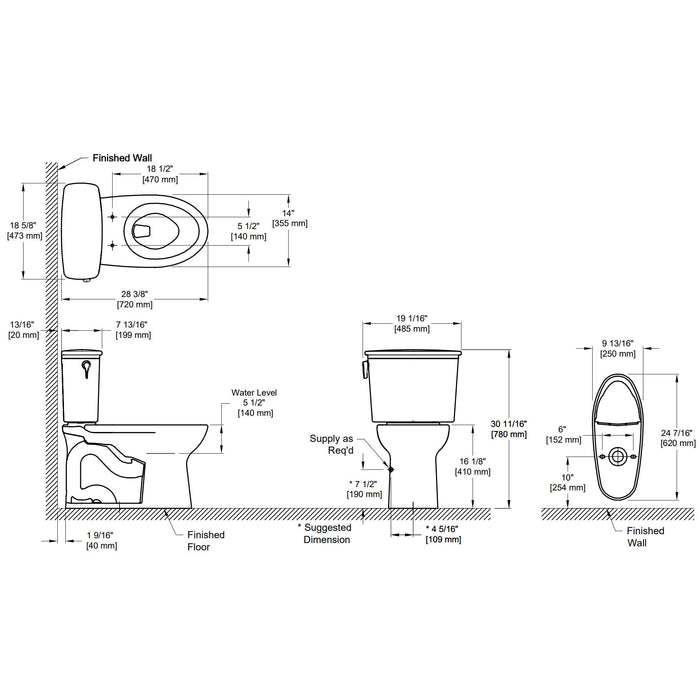

CAD Drawing - CST786CEFG.10#01Spec Sheet - CST786CEFG.10#01
Installation Manual - CST786CEFG.10#01
Spare Parts Manual - CST786CEFG.10#01
