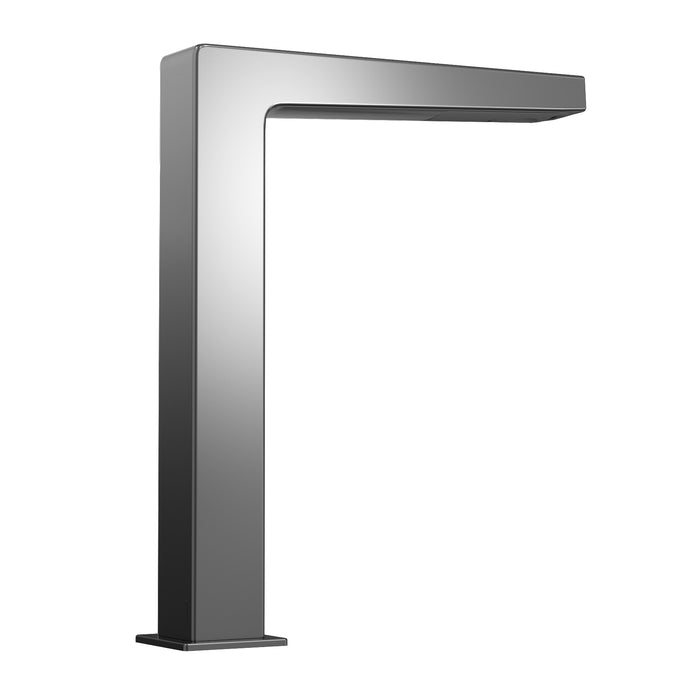

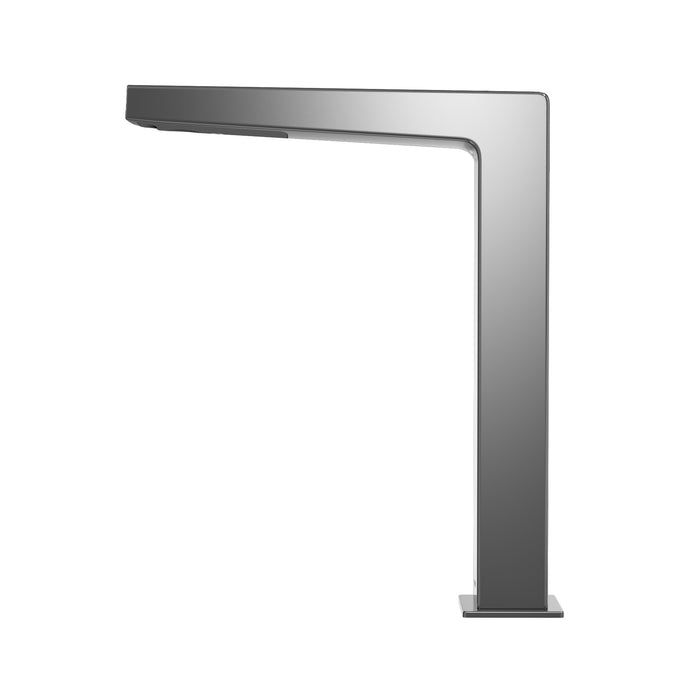

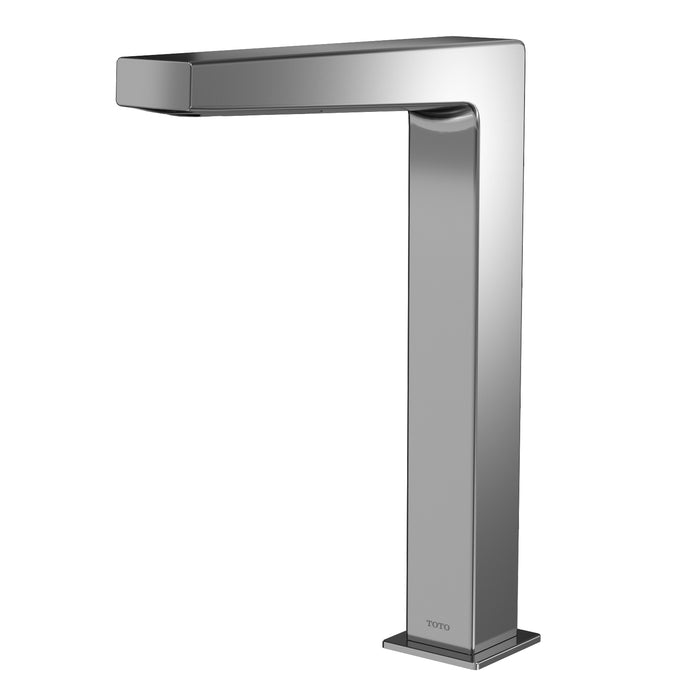

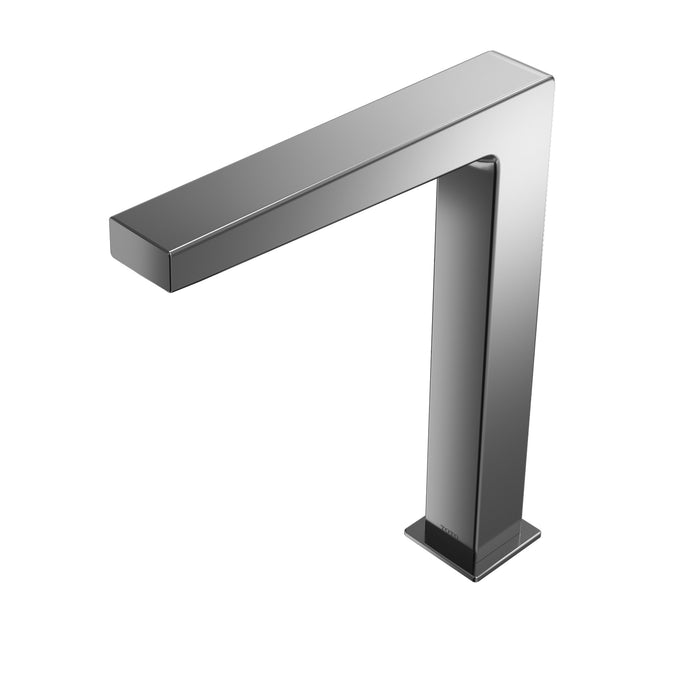

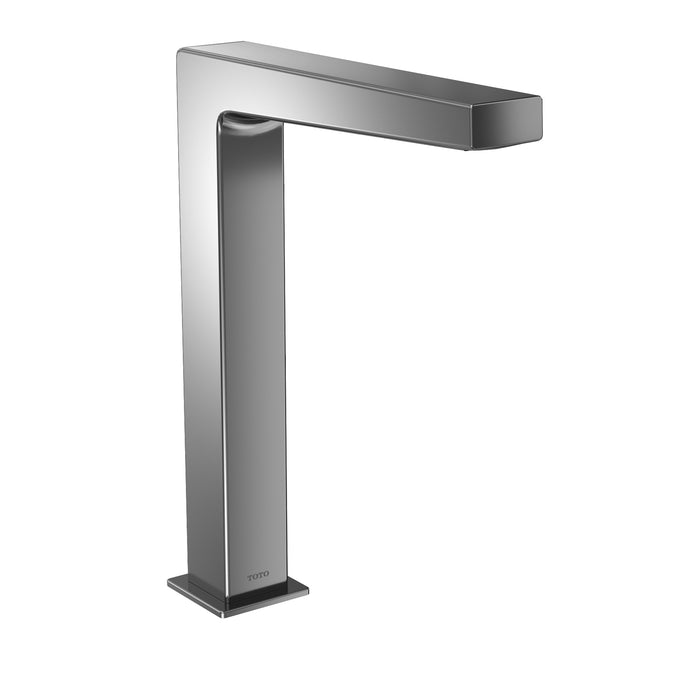

TOTO T25T53AT#CP Axiom Bathroom Faucet Features

• WATER FLOWS EASILY WITHOUT SEARCHING FOR THE SENSOR -

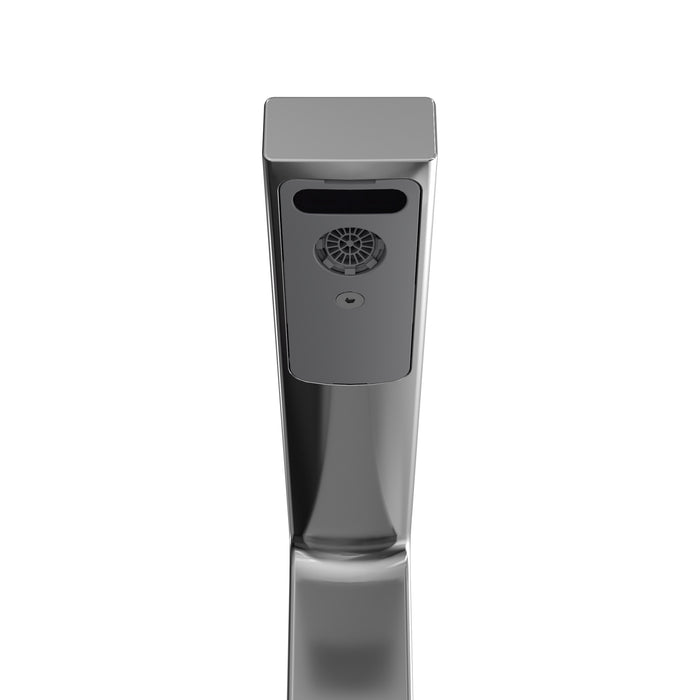

  The sensor is concealed within the spout body for a beautiful aesthetic.

• STOPS AUTOMATICALLY TO PREVENT WATER WASTE - The water will flow continuously for 20 seconds before automatically stopping. When hands are present, the water will flow. When hands are removed, the water will flow for 20 seconds before stopping.
• EXCELLENCE IN WATER SAVINGS - The 0.5 GPM 20 second continuous flow faucet uses only 0.17 gallons per cycle and is CEC and CALGreen compliant. The ECO CAP aerating technology balances the amount of air bubbles in the water for a comfortable experience while saving water.
• SAFE TEMPERATURE ADJUSTMENT TO PREVENT SCALDING WATER - The included thermostatic mixing valve allows fixed water temperature adjustment and prevents scalding.
• EASY INSTALLATION AND LOW-COST MAINTENANCE - Included items: spout, operating controller, thermostatic mixing valve, and mounting hardware included. Purchased separately: water supply line for G 1/2 inch connection.

TOTO T25T53AT#CP Axiom Bathroom Faucet Specifications

• Color/Finish: Polished Chrome
• Product Category: Commercial Faucets
• Material: Brass
• Components: TLE25008U3#CP, TLE01502U, TLE05701U
• Item Length (in.): 7.8125
• Item Width (in.): 1.3125
• Item Height (in.): 9.9375
• Item Weight (lb.): 8.520779
• Reach (in.): 6.3125
• Spout Height (in.): 9.125
• ADA Compliant: Yes
• CALGreen: Yes
• CEC: Yes
• Connection Size/Type: G 1/2
• Installation: Single-Hole
• Valve Included: Yes
• Mounting Type: Deck-Mount
• Number of Faucet Holes Required: 1
• Max Deck Thickness (in.): 2
• Drain Included: No
• Max Flow Rate (gpm): 0.5
• Warranty: Manufacturer Three Year Limited
• Model #: T25T53AT#CP

TOTO T25T53AT#CP Axiom Bathroom Faucet Documentation

• Specification Sheet
