TOTO TEL123-D20ET#CP Helix M ECOPOWER Bathroom Faucet Specifications

  • Component #1: TELS123#CP
  • Component #2: TELC103R-D20E
  • Component #3: TLT20
  • Length (in.): 6.3125
  • Width (in.): 2
  • Height (in.): 9.5
  • Weight (lb): 3
  • Reach (in.): 4.9375
  • Spout Height (in.): 6.5
  • ADA Compliant: Yes
  • CalGreen: Yes
  • CEC: Yes
  • Connection Size/Type: G 1/2
  • Battery Included: Yes
  • Battery Type: Lithium Ion
  • Valve Included: Yes
  • Mounting/Installation: Deck-Mount
  • Number of Faucet Holes: 1
  • Max Deck Thickness (in.): 2
  • Max Flow Rate (GPM): 0.35
  • Material: Brass
  • Warranty: Manufacturer Three Year Limited
  • Category: Commercial Faucets
  • Finish: Polished Chrome
  • UPC Code: 739268353794

TOTO TEL123-D20ET#CP Helix M ECOPOWER Bathroom Faucet Documentation


TOTO TEL123-D20ET#CP Helix M ECOPOWER Touchless Sensor Bathroom Faucet with Thermostatic Mixing Valve

  • $880.75 Save $474

Free Shipping
on All Orders!

Free Shipping on All Orders!
No Sales Tax Outside of PA!

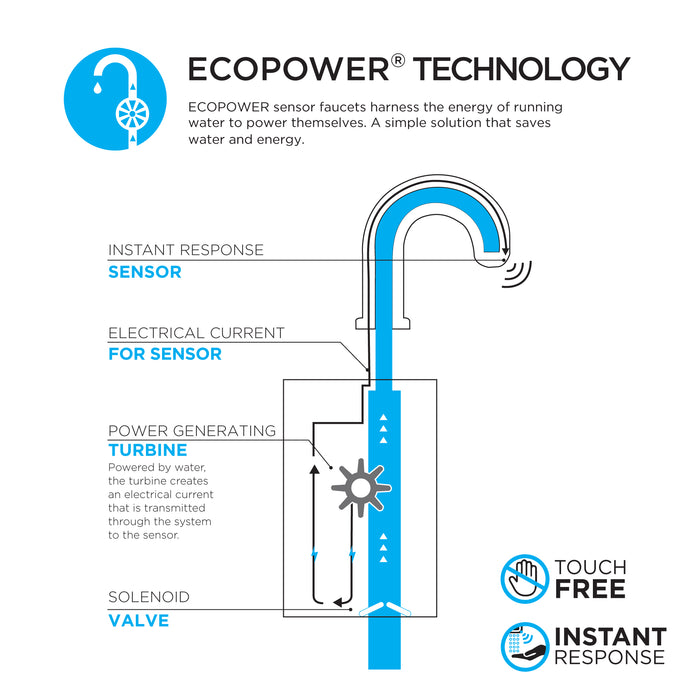

The ECOPOWER Helix M spout has a sleek and smooth body construction with a tall arching neck resulting in a tall water column for users. This ECOPOWER system creates cost effective solutions by harnessing the energy of running water to power itself, both creating and storing power for operation. Although this faucet system is ideal for high-traffic commercial spaces, it is highly efficient and can replenish power stores with no minimum daily usage. The durable, chrome plated spout features a micro-sensor positioned underneath the spout head that accurately detects the user. This self-adjusting sensor ensures a quick, smooth, and consistent water distribution, and the on-demand system means that water flows only when needed and cannot be accidentally left running. The 0.35 GPM faucet achieves a 0.11 GPC, 20 second on-demand flow rate that is CEC and CALGreen compliant. The included thermostatic mixing valve allows for fixed water temperature adjustment and prevents scalding. Easy installation, with no wiring and low-cost maintenance, makes this faucet practical, sustainable, and durable. TOTO creates a clean, relaxed, and refreshing lifestyle by designing for every part of the bathroom and striving to bring more to every moment you spend there. Included items: Helix M spout, controller valve, and thermostatic mixing valve. Purchased separately:: water supply line for G1/2 connection

TOTO TEL123-D20ET#CP Helix M ECOPOWER Bathroom Faucet Features

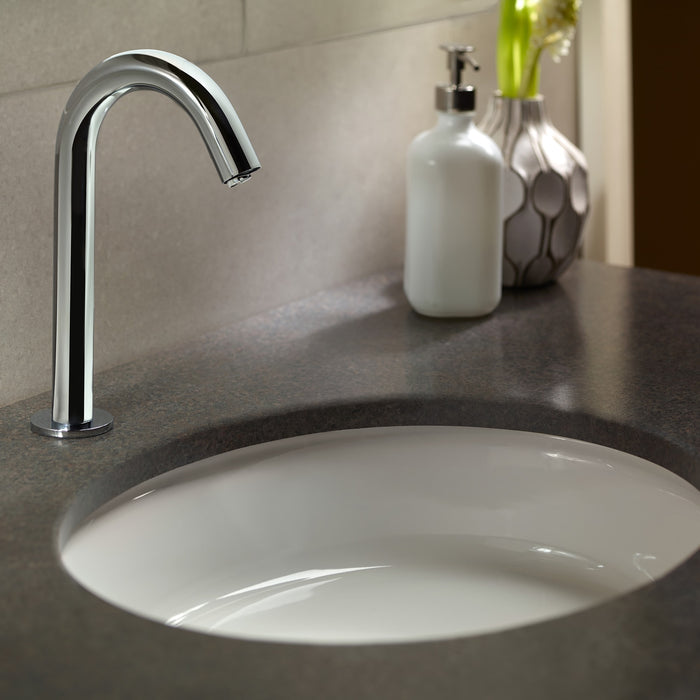

  • Seamless and smooth construction with a high arching neck design
  • Electronic touchless sensor faucet
  • Operated by ECOPOWER self-generating hydro-powered system
  • Easy, single-hole wall-mount installation with no wiring, and low-cost maintenance
  • Vandal resistant aerator housing
  • Durable chrome plated spout body
  • Equipped with a 0.35 GPM water-saving flow rate
  • CEC and CALGreen compliant
  • ADA compliant
  • Strategic location of sensor at tip of spout for instant response time
  • Manual mixing valve allows for conventional temperature adjustment
  • 0.11 GPC with 20 Seconds on-demand water flow

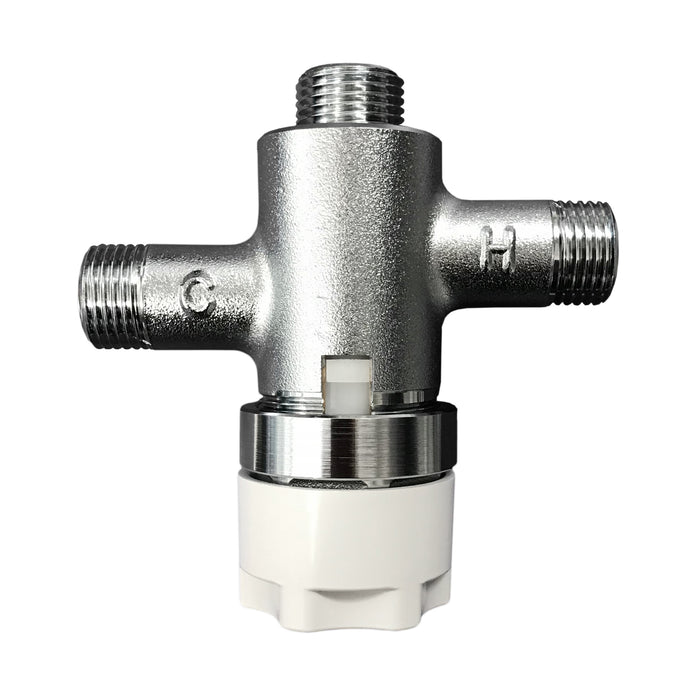

  • Thermostatic mixing valve allows for fixed water temperature adjustment and prevents scalding
  • Included items: ECOPOWER spout body, controller TELC103-D10E, and thermostatic mixing valve TLT20
