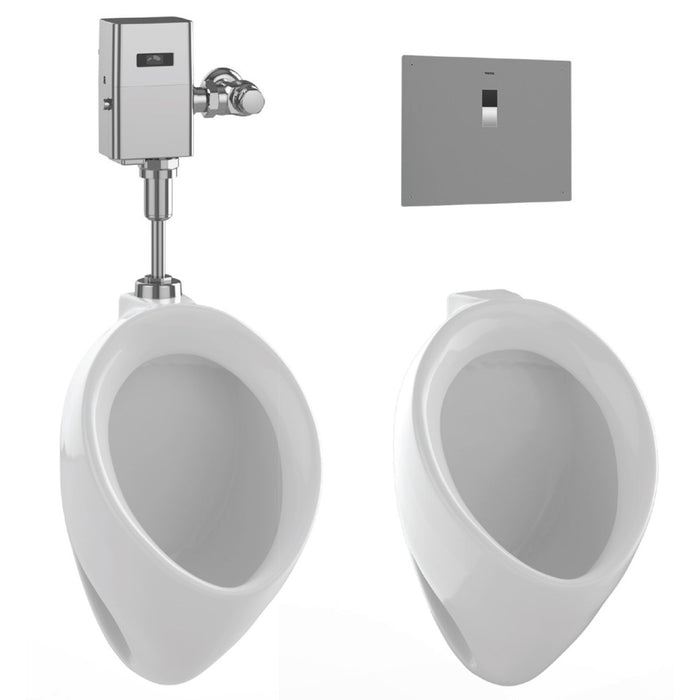

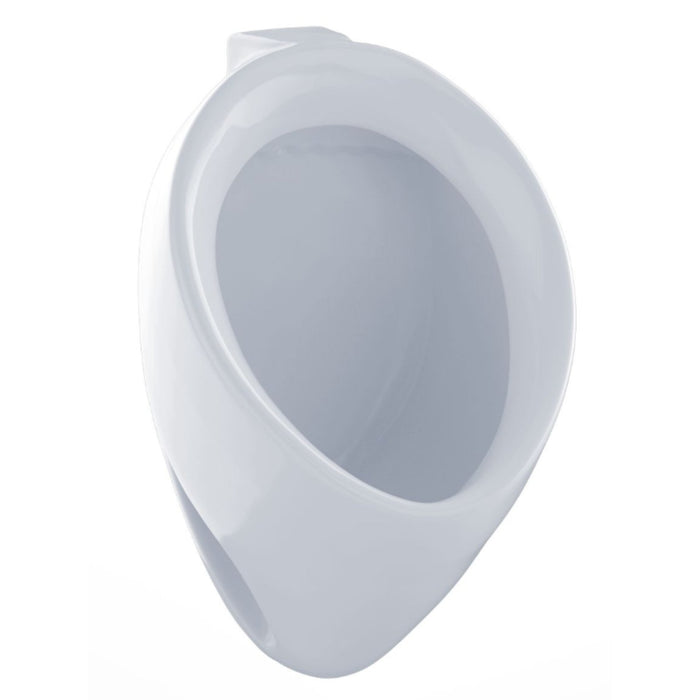

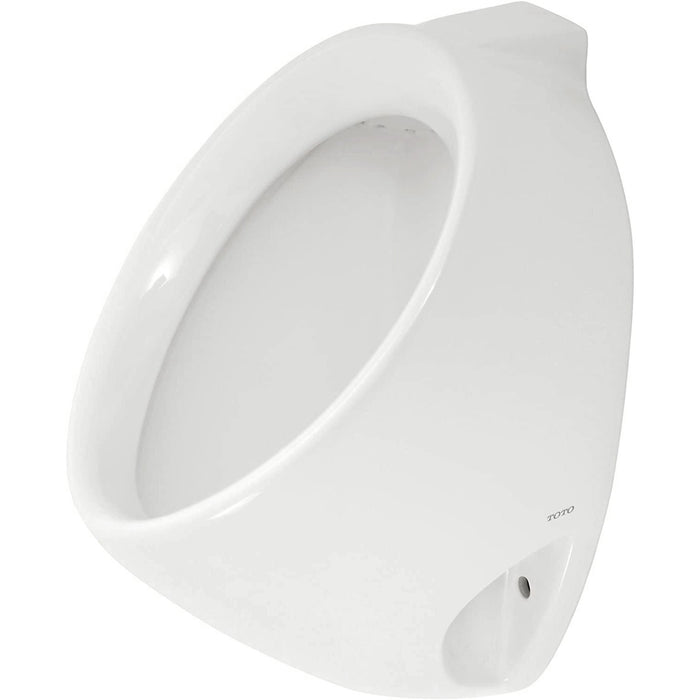

TOTO UT104EV#01 Commercial Washout High Efficiency Urinal with Back Spud, 0.5 GPF, Cotton White

TOTO's EcoPower flush valves don't need replacement batteries because they are powered by force of running water. They are a truly sustainable form of energy.

Adjust angle stop accordingly to prevent overflow. Confirm with local codes and standards for floor drain requirements.

TOTO UT104EV#01 Urinal Compliance and Standards

Meets and exceeds ASME A112.19.2/CSA B45.1
Certifications: IAPMO(cUPC), State of Massachusetts, City of Los Angeles
Code compliance: UPC, IPC, NSPC, NPC Canada, and others
ADA compliant

TOTO UT104EV#01 Urinal Documentation

Installation Manual - Commercial Urinals
Parts Manual - UT104EV
CAD Drawing - UT104EV
Revit Model - UT104EV
Spec Sheet - UT104E, UT104EV

TOTO UT104EV#01 Commercial Washout High Efficiency Urinal with Back Spud, 0.5 GPF, Cotton White

$230.81 Save $103

Ships within 1 - 2 business days

Free Shipping on All Orders!
No Sales Tax Outside of PA!

This commercial compact wall mounted urinal with integral trap is ADA compliant and features a 3/4" top spud inlet and a 2" I.P.S. outlet. Outlet connection and mounting set included.

TOTO continues to advance its leadership in eco-efficient fixtures and fittings with the introduction of four 0.5 GPF High Efficiency Urinals (HEUs). The HEUs and 0.5 GPF EcoPower Flush Valves are engineered to work together as a system to achieve the ultimate in water conservation and flushing performance.

TOTO UT104EV#01 Urinal Features

Flow Rate: 0.5GPF
Compact urinal with concealed integral trap
Washout flush action with 3/4" back spud inlet
2" I.P.S. outlet
Wall-mounted installation
Urinal only configuration with rear spud allows for you to select your desired flushometer
1 Year Warranty
Flush valve not included

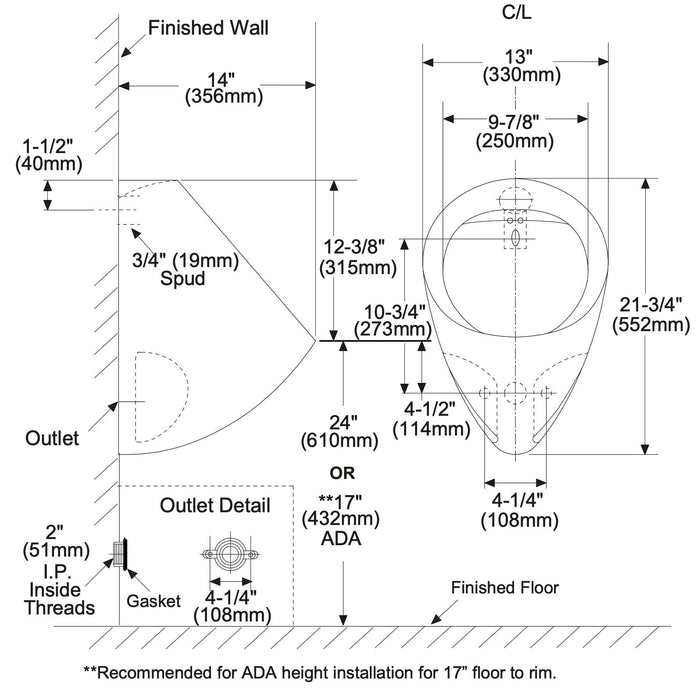

TOTO UT104EV#01 Urinal Specifications

Water Use: 0.5GPF/1.9LPF
Flush System: Washout flush action
Material: Vitreous china
Min. Water Pressure: 15 psi (flowing)
Height (Urinal Only): 21-3/4"
Width: 13"
Rim: 14"
Cotton white finish
