TOTO UT105UV#01 Commercial Urinal Standards & Compliance

  • Meets and exceeds ASME A112.19.2/CSA B45.1
  • Certifications: IAPMO(cUPC), State of Massachusetts , City of Los Angeles
  • Code compliance: UPC, IPC, NSPC, NPC Canada, and others
  • Legislative Compliance: California AB715, CALGreen Title 24, California Energy Commission Standards
  • ADA compliant

TOTO UT105UV#01 Commercial Urinal Documentation & Downloads


TOTO UT105UV#01 Commercial 0.125 GPF High-Efficiency ADA Washout Urinal with 3/4" Back Spud Inlet

  • $364.53 Save $175

Free Shipping
on All Orders!

Ships within 1 - 2 business days
Free Shipping on All Orders!
No Sales Tax Outside of PA!


This wall-mounted, ADA compliant, high-efficiency washout urinal delivers a sustainable 0.125GPF/0.47LPF when paired with a 0.125 GPF flushometer valve (not included).

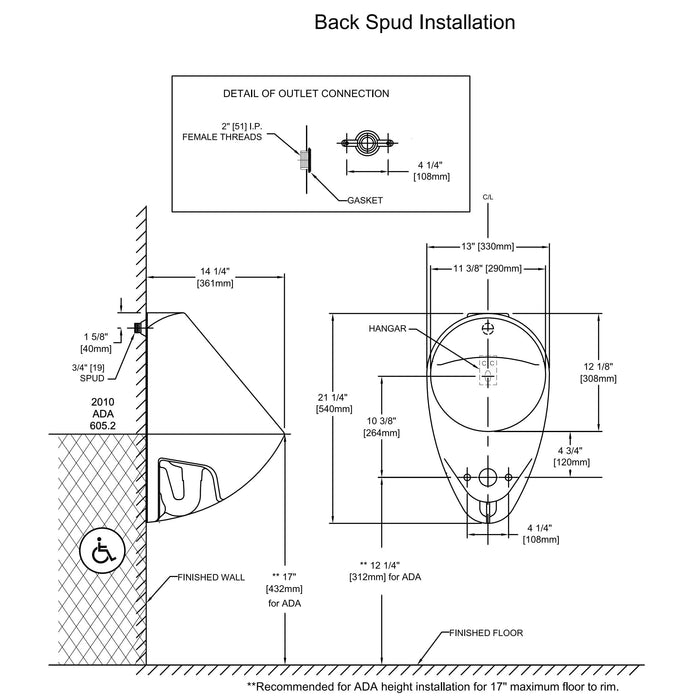

Will comply with ADA when installed per Section 605 - Urinals of the ADA 2010 Accessible Design Standard with maximum rim height of 17" and minimum depth of 13-1/2". Will comply with CSA B651 when installed per Clause 6.2.8 Urinals of the CSA 2012 Accessible Design Standard with maximum rim height of 17" and minimum depth of 13-1/2".

Ultra-low high efficiency urinals require a system with a minimum 2% slope. Maximum drainage capacity rated at 6.6 gal/min (25 L/min). Adjust angle stop accordingly to prevent overflow. Confirm with local codes and standards for floor drain requirement.

TOTO UT105UV#01 Commercial Urinal Features

  • Compact urinal with concealed integral trap
  • Washout flush action with 3/4" top or back spud inlet
  • Complete with low profile dome strainer

TOTO UT105UV#01 Commercial Urinal Specifications

  • Water Use: 0.125GPF/0.47LPF
  • Flush System: washout flush action
  • Warranty: 1 Year Limited Warranty
  • Material: Vitreous china
  • Min. Water Pressure: 15 psi (flowing)
  • Height (Urinal Only): 21-3/4"
  • Width: 12-1/4"
  • Rim: 14"
  • Flush valve not included
