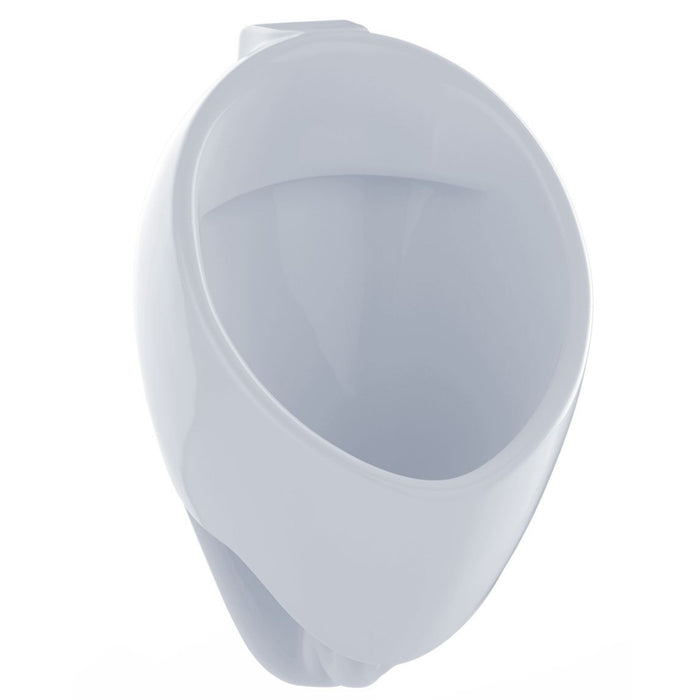

TOTO UT105UVG#01 Commercial 0.125 GPF High-Efficiency Washout Urinal with 3/4" Back Spud Inlet

The wall-mounted, ADA compliant, high-efficiency washout urinal delivers a sustainable 0.125GPF/0.47LPF when paired with a 0.125 GPF flushometer valve (not included). Features advanced CeFiONtect ceramic glaze.

Will comply with ADA when installed per Section 605 - Urinals of the ADA 2010 Accessible Design Standard with maximum rim height of 17" and minimum depth of 13-1/2". Will comply with CSA B651 when installed per Clause 6.2.8 Urinals of the CSA 2012 Accessible Design Standard with maximum rim height of 17" and minimum depth of 13-1/2". Ultra-low high efficiency urinals require a system with a minimum 2% slope. Maximum drainage capacity rated at 6.6 gal/min (25 L/min). Adjust angle stop accordingly to prevent overflow. Confirm with local codes and standards for floor drain requirement.

TOTO UT105UVG#01 Commercial Urinal Features

• Compact urinal with concealed integral trap

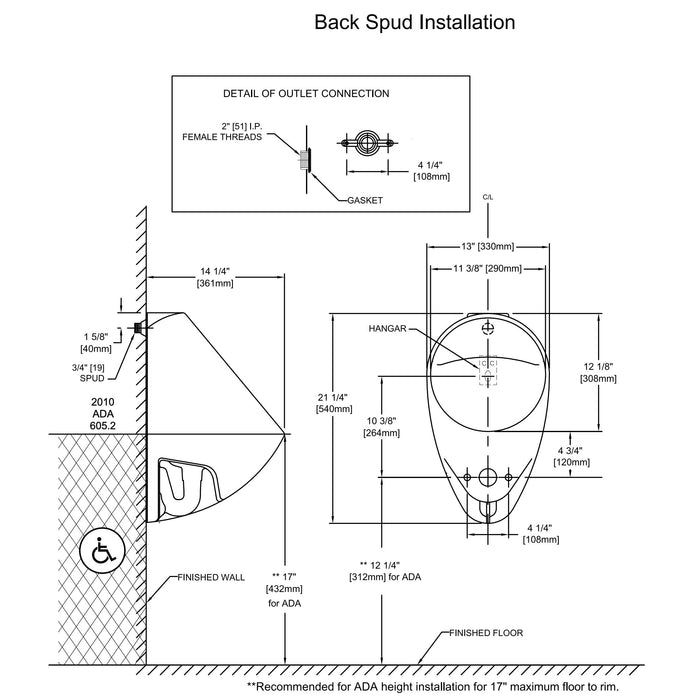

• Washout flush action with 3/4" top or back spud inlet
• Complete with low profile dome strainer
• Optional CeFiONtect ceramic glaze - CeFiONtect glaze prevents debris and mold from sticking to ceramic surfaces, leading to fewer chemicals.

TOTO UT105UVG#01 Commercial Urinal Specifications

• Water Use: 0.125GPF/0.47LPF
• Flush System: washout flush action
• Warranty: 1 Year Limited Warranty
• Material: Vitreous china
• Min. Water Pressure: 15 psi (flowing)
• Height (Urinal Only): 21-3/4"
• Width: 12-1/4"
• Rim: 14"
• Flush valve not included
