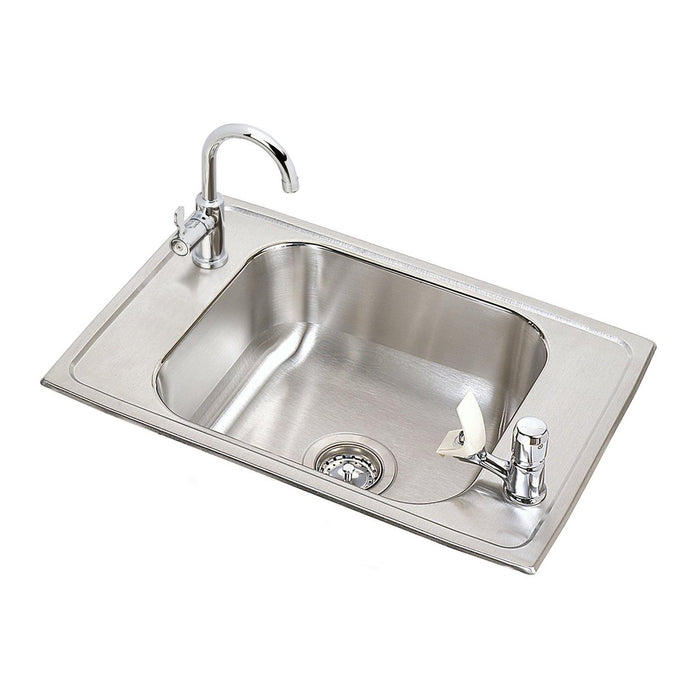

Elkay CDKRC2517C Celebrity 25 x 17 x 6-7/8" Top Mount Classroom Sink & Faucet / Bubbler Kit
No Sales Tax Outside of PA!
Elkay has been a trusted name in stainless steel since 1920. Through the years, their engineering and manufacturing methods have continued to evolve. Their expertise in forming, welding, trimming and polishing stainless steel have helped us to set the industry standard. Elkay is proud to be America's No. 1 selling kitchen sink company.
Product Features
- TOP MOUNT INSTALLATION: Sink is designed for drop-in installation to make the sink a focal point of your room.
- 20-GAUGE STAINLESS STEEL: Highest grade 20-gauge thickness and Type 304 stainless steel for everyday lasting durability, performance and finish.
- QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
- U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install.
- CENTER DRAIN: Drain is conveniently placed in the center of the sink.
- DRAIN OPENING: Sink drain opening measures 3-1/2".
- CABINET SIZE: Minimum cabinet size for this sink is 30".
- KIT INCLUDES: LKD20858C faucet, LKJ35 drain, LK1141A bubblers; save the time of having to purchase each item separately.
Technical Specifications
- Length: 25"; Width: 17"; Height: 6.875"
- Sink Depth: 6.875"
- Material: Stainless Steel
- Finish: Brushed Satin
- Intended Use: Classroom
- ADA: No
- Installation Type: Top Mount, Sink Kits
- Mounting Hardware Included: Part # 64090012 included for countertops up to 3/4" (19mm) thick
- Template Included: No
- Recommended Installation Hardware: LK364, LK463
- Space Designation: Classroom
- Number of Bowls: 1
- Bowl 1 Length: 15.75"; Bowl 1 Width: 14"; Bowl 1 Depth: 6.75"
- Drain Size (Bowl 1): 3.5"
- Soundproofing: Bottom only pads
- Faucet Holes Configuration: 2
- Minimum Cabinet Size: 30"
- Countertop Cutout: 24-3/8" x 16-3/8" (619mm x 416mm) with 1-1/2" (38mm) corner radius
- Included Parts: LKDC2085C, LKJ35, LK1141A
- Gauge: 20
- Base Material: 304
- Code Compliance: ASME A112.19.3/CSA B45.4, ASME A112.18.2/CSA B125.2, ASME A112.18.1/CSA B125.1, CEC, NSF 61, NSF 372 (lead free)ASME A112.18.2/CSA B125.2
