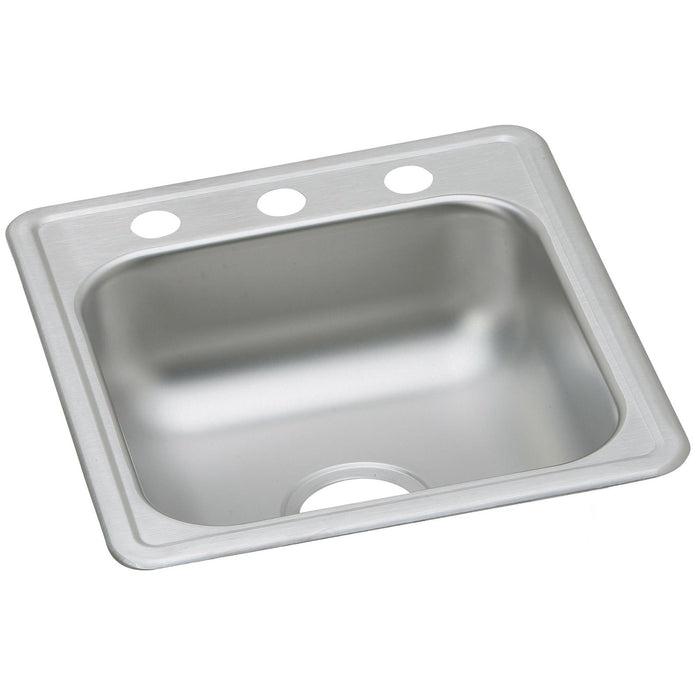

Elkay D117193 Dayton Stainless Steel 17" x 19" x 6-1/8", Single Bowl Top Mount Bar Sink

Dayton offers a complete line of sinks, drains and accessories. From top mount to undermount and dual mount styles, Dayton sinks come in an array of sizes and configurations and offer product lines and packages to meet every budget. Their products are backed with the quality assurance of domestic manufacturing and great customer care.

Product Features

• ADA COMPLIANT: Product is ADA compliant when properly installed.
• TOP MOUNT INSTALLATION: Sink is designed for drop-in installation to make the sink a focal point of your room.
• 300 SERIES STAINLESS STEEL: Designed for everyday use.
• QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
• U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install.
• MADE IN THE USA: This Elkay product is proudly made in the USA.
• DRAIN OPENING: Sink drain opening measures 3-1/2".
• CABINET SIZE: Minimum cabinet size for this sink is 21".

Technical Specifications

• Length: 17"; Width: 19"; Height: 6.1875"
• Sink Depth: 6.1875"
• Material: Stainless Steel
• Finish: Satin
• Intended Use: Residential/Multi-Family
• ADA: Yes
• Installation Type: Top Mount
• Mounting Hardware Included: Part # 64090012 included for countertops up to 3/4" (19mm) thick
• Template Included: No
• Recommended Installation Hardware: LK364, LK463
• Space Designation: Entertainment
• Number of Bowls: 1
• Bowl 1 Length: 14"; Bowl 1 Width: 14"; Bowl 1 Depth: 6"
• Drain Size (Bowl 1): 3.5"
• Soundproofing: Bottom only pads
• Faucet Holes Configuration: 3
• Minimum Cabinet Size: 21"
• Countertop Cutout: 16-3/8" x 18-3/8" (416mm x 467mm) with 1-1/2" (38mm) corner radius
• Optional Grid: GBG1414SS
• Optional Drain: D1125
• Gauge: 22
• Base Material: 301
• Code Compliance: ADA & ICC A117.1, ASME A112.19.3/CSA B45.4, BUY AMERICAN ACT, IAPMO (cUPC_sinks)
