Elkay DRKAD282255RC Product Specifications
- Classification: LUSTERTONE CLASSROOM
- Item Weight (lb.): 24.8
- Item Length (in.): 28
- Item Width (in.): 22
- Item Height (in.): 5.5
- Sink Depth (in.): 5.5
- Material: Stainless Steel
- Finish: Lustertone
- Application: Classroom
- ADA Compliant: Yes
- Installation Type: Top Mount, Sink Kits
- Mounting Hardware Included: Part # 64090012 included for countertops up to 3/4" (19mm) thick
- Template Included: No
- Recommended Installation Hardware: LK364, LK463
- Room Designation: Classroom
- Number of Bowls: 1
- Bowl 1 Length (in.): 19
- Bowl 1 Width (in.): 16
- Bowl 1 Depth (in.): 5.375
- Drain Placement: Rear Center
- Sound Insulation: Bottom only pads
- Faucet Holes Configuration: 3
- Minimum Cabinet Size (in.): 33
- Countertop Cutout Dimensions: 27-3/8" x 21-3/8" (695mm x 543mm) with 1-1/2" (38mm) corner radius
- Optional Sink Mate: LKSMHSL
- Gauge: 18
- Compliance Codes: ADA & ICC A117.1, ASME A112.19.3/CSA B45.4, BUY AMERICAN ACT, ASME A112.18.2/CSA B125.2, ASME A112.18.1/CSA B125.1, CEC, NSF 61, NSF 372 (lead free)ASME A112.18.2/CSA B125.2
Downloads & Documentation

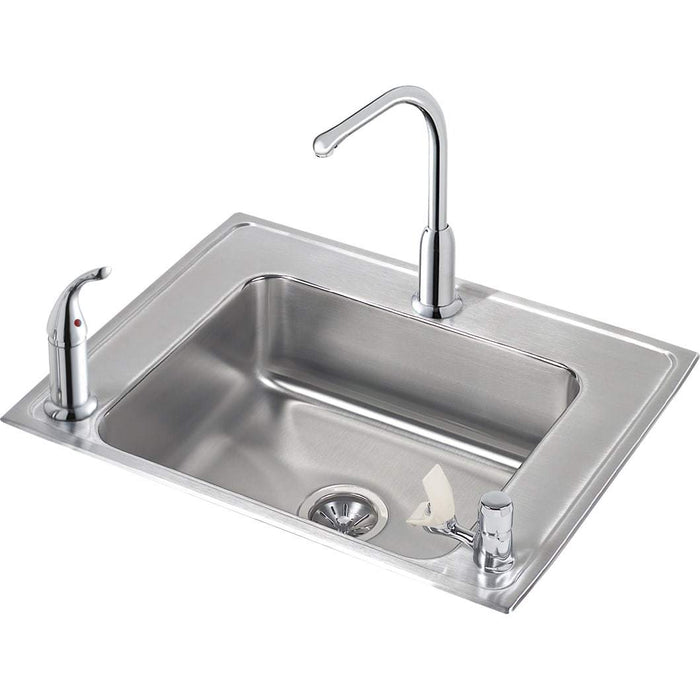

Elkay DRKAD282255RC Lustertone Stainless Steel 28" x 22" x 5-1/2" Single Bowl Top Mount Classroom ADA Sink with Faucet/Bubbler Kit
No Sales Tax Outside of PA!
An Elkay Lustertone sink looks as great on day 3,000 as it does on day one. Their signature finish is handcrafted with a rich, uniform grain that adds to the beauty of the sink. Light scratches, which occur with everyday use, naturally blend into the finish with time.
Elkay DRKAD282255RC Product Overview
- ADA COMPLIANT: Product is ADA compliant when properly installed.
- LUSTERTONE FINISH: Durable, handcrafted finish looks as great on day 3,000 as on day one. Light scratches naturally blend into sink finish with time.
- TOP MOUNT INSTALLATION: Sink is designed for drop-in installation to make the sink a focal point of your room.
- 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty.
- QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
- OFFSET DRAIN: Drain placement provides more usable space on the bottom of the sink and in the cabinet below.
- DRAIN OPENING: Sink drain opening measures 3-1/2".
- CABINET SIZE: Minimum cabinet size for this sink is 33".
- KIT INCLUDES: LKF413945RS faucet, LK1141A bubbler, LKAD35 strainer; save the time of having to purchase each item separately.
