Elkay EMASMB Product Specifications
- Classification: SURFACE MOUNT
- Item Weight (lb.): 22
- Item Length (in.): 17.875
- Item Width (in.): 6.25
- Item Height (in.): 25.875
- Material: Stainless Steel
- Finish: Stainless Steel
- Application: Schools, Hospitality, Indoor Gym/Fitness, Small Office Building, Large Office Building, Healthcare Facilities, Government/Municipal, Public Facilities
- ADA Compliant: Yes
- Made in the USA: Yes
- Installation Location: Indoor
- Bubbler Style: No Bubbler
- Chilling Options: Non-Refrigerated
- Mount Type: Wall Mount (On-Wall)
- Number of Stations: 1
- Voltage: No Electrical Required
- Full Load Amps: .007
- Fountain Features: Green Ticker, Laminar Flow, Antimicrobial, Real Drain
- Activation Type: Mechanical Bottle Filler Button
- Compliance Codes: ADA & ICC A117.1, Buy American Act, GreenSpec, NSF 61, NSF 372 (lead free)
Downloads & Documentation

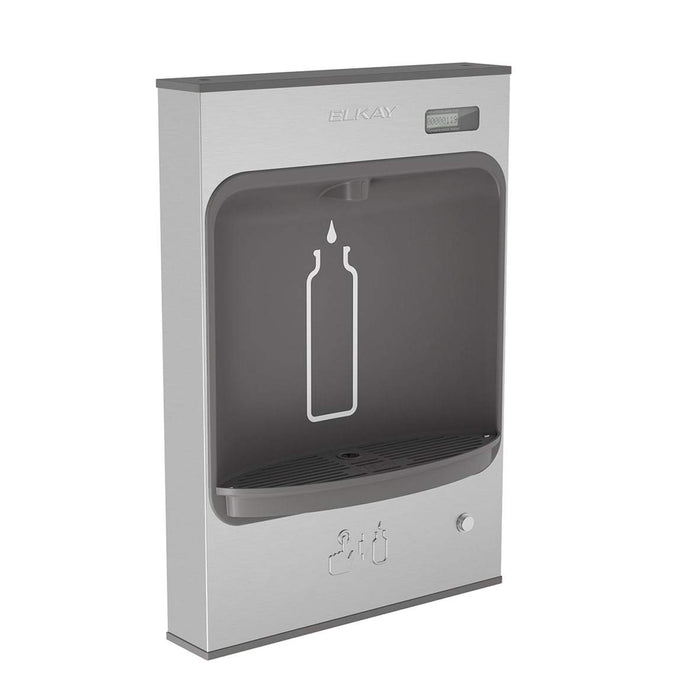

Elkay EMASMB EZH2O Mechanical Bottle Filling Station Surface Mount, Battery Powered Non-Filtered Non-Refrigerated Stainless
No Sales Tax Outside of PA!
The Elkay EZH2O Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Non-Electric Surface mount design - ideal for installations where electrical wiring is not easily accessible or locations looking to reduce electrical usage. Push-button activation delivers 1.0 gpm
Elkay EMASMB Product Overview
- Mechanical push button designed for use in limited wall depth applications, for areas where electric is not available.
- Fill rate is 1.5 GPM.
- Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste.
- Able to pair with a remote chiller.
- Laminar flow provides clean fill with minimal splash.
- Silver Ion Antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.
- Real Drain System eliminates standing water.
- Rated for indoor use.
