Elkay HTHB-HACDPV-NF Product Specifications
- Classification: BF/COOLER COMBO
- Item Weight (lb.): 52
- Item Length (in.): 17.875
- Item Width (in.): 18.5
- Item Height (in.): 39.75
- Finish: Platinum Vinyl
- Application: Schools, Hospitality, Indoor Gym/Fitness, Small Office Building, Large Office Building, Healthcare Facilities, Government/Municipal, Public Facilities
- ADA Compliant: Yes
- Made in the USA: Yes
- Installation Location: Indoor
- Bubbler Style: Double Bubbler
- Chilling Options: Non-Refrigerated
- Mount Type: Wall Mount (On-Wall)
- Number of Stations: 1
- Voltage: 115V/60Hz
- Rated Watts: 15
- Fountain Features: Mechanically-Activated, Sanitary Sensor Activated, Green Counter, Laminar Flow, Antimicrobial, Real Drain
- Activation Type: Electronic Bottle Filler Sensor With Mechanical Front And Side Bubbler Pushbar
- Compliance Codes: ADA & ICC A117.1, ASME A112.19.3/CSA B45.4, Buy American Act, CAN/CSA C22.2 No. 120, GreenSpec, NSF 61, NSF 372 (lead free), UL 399
Downloads & Documentation

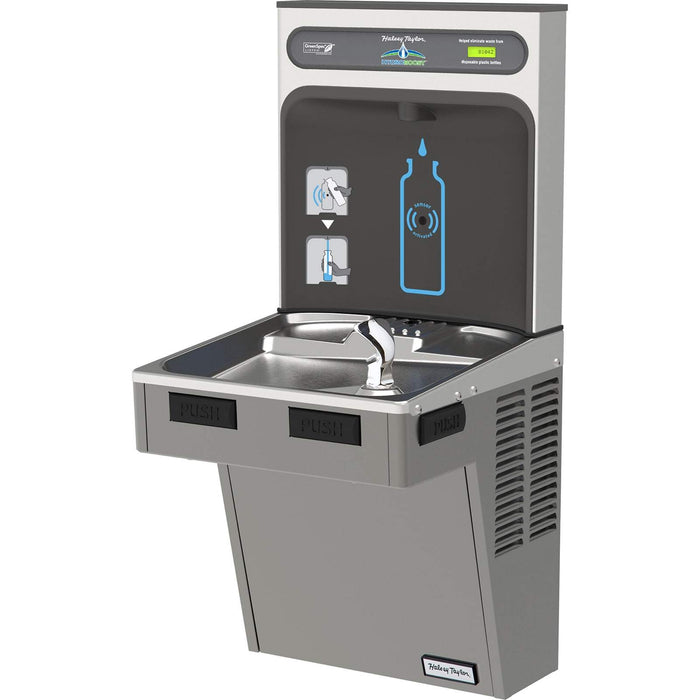

Elkay HTHB-HACDPV-NF Halsey Taylor HydroBoost Bottle Filling Station and Single ADA Cooler, Non-Filtered Non-Refrigerated Platinum Vinyl
No Sales Tax Outside of PA!
The Halsey Taylor HydroBoost Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Complete cooler and bottle filling station in a consolidated space saving ADA compliant design. Bottle Filler features sanitary no-touch sensor activation with automatic 20-second shut-off timer.
Elkay HTHB-HACDPV-NF Product Overview
- Touchless, sensor-activated bottle filler, designed for easy use; mechanically-activated bubbler continues to supply water in service disruptions.
- Fill rate is 1.5 GPM.
- Green Counter informs user of number of 20 oz. plastic water bottles saved from waste.
- Laminar flow provides clean fill with minimal splash.
- Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.
- Real drain system eliminates standing water.
- Exclusive Double Bubbler which projects two separate streams that converge to form a fuller, more satisfying drink.
- Rated for indoor use.
