Elkay LK535HA08T4 Product Specifications
- Classification: CLASSROOM
- Item Weight (lb.): 4.5
- Item Length (in.): 9.75
- Item Width (in.): 6.125
- Item Height (in.): 13
- Product Style: Traditional
- Material: Chrome Plated Brass
- Finish: Chrome
- Application: Classroom
- ADA Compliant: Yes
- Installation Type: Deck Mount
- Faucet Holes Required: 1
- Flow Rate (GPM): 1.5
- Faucet Deck Clearance (in.): 9.1250
- Spout Height (in.): 11.625
- Spout Reach (in.): 8
- Spout Type: High Arc
- Valve: Quarter Turn Ceramic Disc - Cold
- Valve Connection: 1/2"-14 NPSM
- Number of Handles/Levers: 1
- Handle Type: 4" Wristblade Handle
- Faucet Features: Low Flow, Solid Brass Construction, Spout swing restriction pin
- Faucet Material: Brass
- Compliance Codes: ADA & ICC A117.1, ASME A112.18.1/CSA B125.1, CEC, NSF 61, NSF 372 (lead free)
Downloads & Documentation

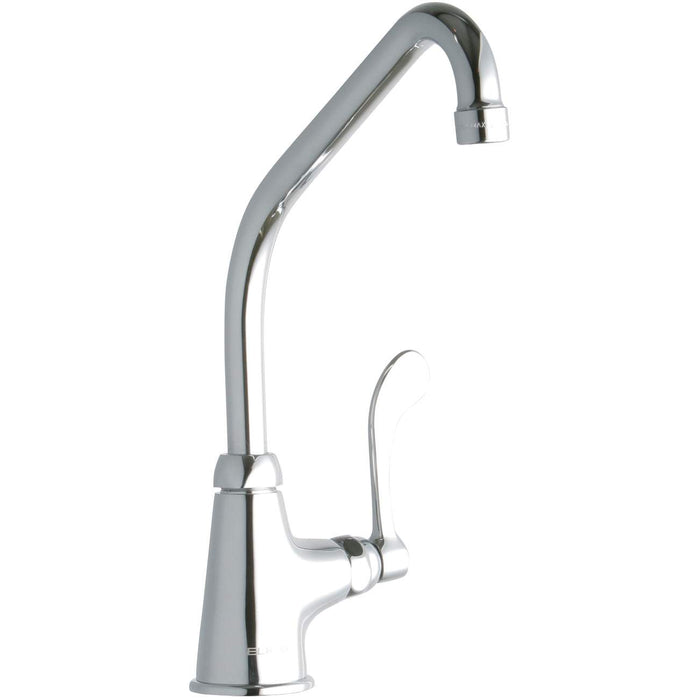

Elkay LK535HA08T4 Single Hole with Single Control Faucet with 8" High Arc Spout 4" Wristblade Handle Chrome
No Sales Tax Outside of PA!
Elkay commercial faucets combine performance and style. From the commercial kitchen to the classroom, we have faucets for a variety of applications. Select from options and styles that make it easier to take on the tasks you do every day.
Elkay LK535HA08T4 Product Overview
- ADA COMPLIANT: Faucet is ADA compliant.
- LEAD-FREE COMPLIANT: Certified to NSF/ANSI 61 and 372 to meet all federal and state regulations for low or no-lead products.
- LOW FLOW: Includes water-saving features.
- SOLID BRASS CONSTRUCTION: Built for long-term durability.
- INCLUDES VANDAL-RESISTANT AERATOR: Comes installed with 1.5 GPM water-saving, vandal-resistant aerator; 2.2 and .5 GPM aerator inserts included.
- SPOUT SWING RESTRICTOR PIN: Special pin locks faucet into stationary position for required applications.
- 1 FAUCET HOLE: Faucet designed to be installed using one faucet hole.
