Elkay DLR1919103 Single-Bowl Drop-In Sink Specifications
- Product Type: Single-Bowl Drop-In Sink
- Material: Stainless Steel
- Finish: Lustrous Satin
- Length (in.): 19.5
- Width (in.): 19
- Height (in.): 10.125
- Weight (lb.): 14.5
- Mounting Type: Drop-in
- Country of Origin: United States
- ADA Compliant: No
- Style: Traditional
- Room / Application: Laundry/Utility
- Sink Base Model: DLR191910
- Minimum Cabinet Size (in.): 24
- Number of Bowls: 1
- Sink Depth (in.): 10
- Faucet Hole Configuration: 3
- Mounting Hardware: Part # 64090012 included for countertops up to 3/4" (19mm) thick
- Mounting Hardware Quantity: 1
- Countertop Cutout Dimensions: 18-7/8" x 18-3/8" (479mm x 467mm) with 1-1/2" (38mm) corner radius
- Capacity to Overflow (gal.): 8.9
- Stainless Steel Gauge: 18
- Sound Deadening: Sides and Bottom pads
- Bowl 1 Shape: Rectangular
- Bowl 1 Length (in.): 16
- Bowl 1 Width (in.): 13.5
- Bowl 1 Depth (in.): 10
- Bowl 1 Drain Opening (in.): 3.5
- Bowl 1 Drain Placement: Center Center
- Intended Use: General Use
- Template Included: No
- Recommended Installation Hardware: LK364, LK463
- Optional Soap Dispenser: LKGT1054
- Optional Grid: LKWBG1316SS
- Optional Cutting Board: CB1613, CB1713, CBS1316
- Optional Rinsing Basket: LKWRB1316SS, LKWERBSS
- Optional Drain: LK99
- Optional Faucet: LKGT1041, LKGT2041
- Base Material: 304
- Code Compliance: ASME A112.19.3/CSA B45.4, BUY AMERICAN ACT, IAPMO (cUPC_sinks)
- Shipping weight: 21 lb.
Elkay DLR1919103 Single-Bowl Drop-In Sink Documentation
- Elkay DLR1919103 Single-Bowl Drop-In Sink Spec Sheet
- Elkay DLR1919103 Single-Bowl Drop-In Sink Use and Care Guide
- Elkay DLR1919103 Single-Bowl Drop-In Sink Installation Guide
- Elkay DLR1919103 Single-Bowl Drop-In Sink Product Warranty
- Elkay DLR1919103 Single-Bowl Drop-In Sink Installation Guide
Product Video
Elkay DLR1919103 Single-Bowl Drop-In Sink UPC Code: 094902006826
Elkay DLR1919103 Lustertone Stainless Steel 19-1/2" x 19" x 10-1/8" 1-Bowl Top Mount Laundry Sink
Frequently Asked Questions
• What if my order arrives damaged?
While we take great care in the packaging and handling of orders, we ask that customers inspect all shipments within 48 hours of delivery, and in the rare event that your order arrives damaged, please send us an email with a photo showing the damages (so we can file a claim with the carrier), and let us know whether you prefer a free replacement or a refund.
• Why do you ask for phone numbers during checkout?
Some shipping carriers, especially those handling freight, require a phone number to coordinate your delivery. We respect your privacy and guarantee that any information you provide will never be shared with third parties, except for shipping purposes.

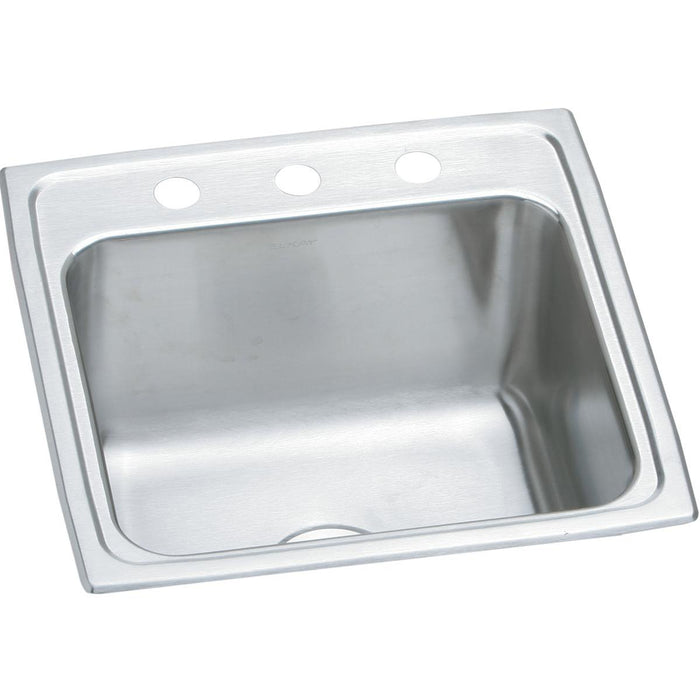

The Elkay DLR1919103 is a single-bowl drop-in sink in Lustrous Satin. The rich, uniform grain is scratch resistant for heavy-duty use, whether it's a kitchen sink or a prep, bar, laundry or commercial sink. Light scratches, which occur with everyday use, naturally blend into the finish of this durable sink with time.
Elkay DLR1919103 Single-Bowl Drop-In Sink Features
- Finish is scratch resistant, standing up to everyday use. Deep scratches are repairable. Grain radiates light for a luminous look.
- Drop-in installation places the finished rim above the countertop.
- Bowl gives you uninterrupted space for washing and stacking dishes or other household tasks.
- Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty.
- Sound-deadening pads reduce noise and vibration during use.
- Mounting clips slide into the U-channel before installation to simplify work beneath the sink.
- High-capacity bowl offers more room inside for washing larger items and other household tasks.
- This sink has a drain that works with standard garbage disposals, if space allows.
- Made in the USA.
- Large capacity: Straight sidewalls give the sink a flat bottom and offer more usable space for stacking, soaking and washing dishes; easy to clean.
