Elkay ELG1616WH0 Single-Bowl Dual-Mount Bar/Prep Sink Documentation
- Elkay ELG1616WH0 Single-Bowl Dual-Mount Bar/Prep Sink Spec Sheet
- Elkay ELG1616WH0 Single-Bowl Dual-Mount Bar/Prep Sink Use and Care Guide
- Elkay ELG1616WH0 Single-Bowl Dual-Mount Bar/Prep Sink Installation Guide
- Elkay ELG1616WH0 Single-Bowl Dual-Mount Bar/Prep Sink Product Warranty
- Elkay ELG1616WH0 Single-Bowl Dual-Mount Bar/Prep Sink Installation Guide
Product Video
Elkay ELG1616WH0 Single-Bowl Dual-Mount Bar/Prep Sink UPC Code: 094902080529
Elkay ELG1616WH0 Quartz Classic 15-3/4" x 15-3/4" x 7-11/16" Dual Mount Bar Sink, White
New to Bath4All? Email us with any questions or use the chat. Chat is loading. Please try again in a moment.
Frequently Asked Questions
• What if my order arrives damaged?
While we take great care in the packaging and handling of orders, we ask that customers inspect all shipments within 48 hours of delivery, and in the rare event that your order arrives damaged, please send us an email with a photo showing the damages (so we can file a claim with the carrier), and let us know whether you prefer a free replacement or a refund.
• Why do you ask for phone numbers during checkout?
Some shipping carriers, especially those handling freight, require a phone number to coordinate your delivery. We respect your privacy and guarantee that any information you provide will never be shared with third parties, except for shipping purposes.
The Elkay ELG1616WH0 is a single-bowl dual-mount bar/prep sink in White. Quartz Classic construction combines natural quartz with a smooth surface and UV-stable color.
Elkay ELG1616WH0 Single-Bowl Dual-Mount Bar/Prep Sink Features

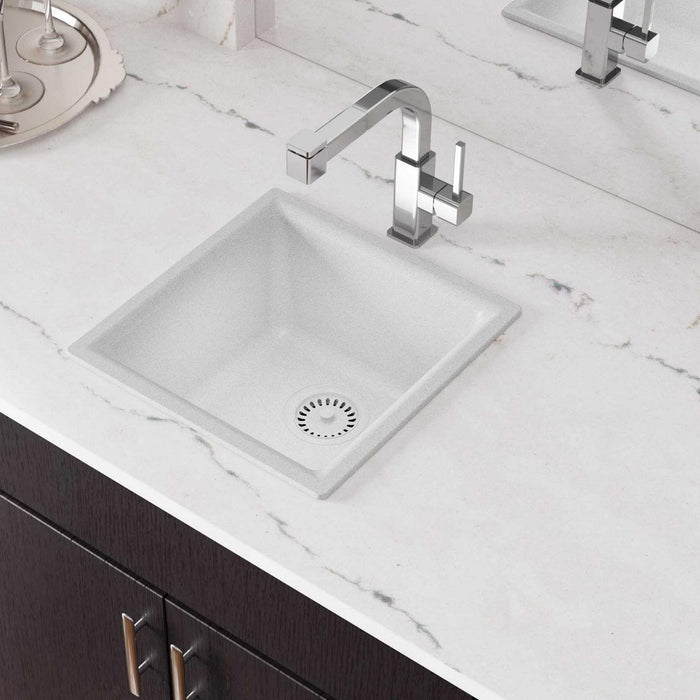

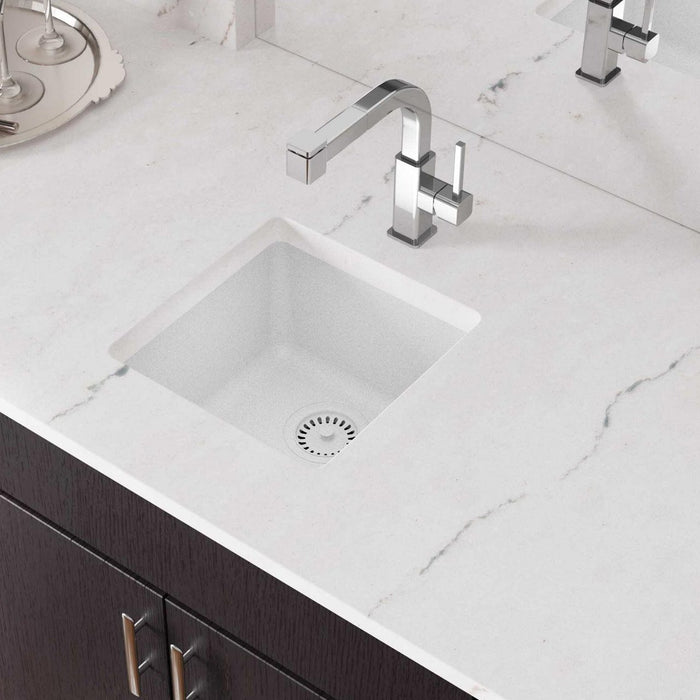

- Versatile design allows the sink to be installed as a drop-in or undermount.
- Coordinate your sink color with your décor and style; washes clean with soapy water; food and liquid won't stain.
- Molded from fine quartz sand to resist banging, chipping and scratches; heat safe up to 535° F.
- Subtle gray flecking adds a contemporary twist and warmth to this timeless classic.
- Material's ultrafine, nonporous structure means food and liquid won't stick to surface.
- Naturally sound-deadening quartz reduces noise and vibration during use.
- Drain placement provides more usable space on the bottom of the sink and in the cabinet below.
- This sink has a drain that works with standard garbage disposals, if space allows.
- Included accessories: LKWOBG1316SS,LKWOBG1418SS,LK99.
- White: A timeless classic that transcends style.
Elkay ELG1616WH0 Single-Bowl Dual-Mount Bar/Prep Sink Specifications
- Product Type: Single-Bowl Dual-Mount Bar/Prep Sink
- Material: Quartz
- Color: White
- Finish: White
- Length (in.): 15.748
- Width (in.): 15.748
- Height (in.): 7.675
- Weight (lb.): 16
- Mounting Type: Drop-in / Undermount
- Country of Origin: Germany
- ADA Compliant: No
- Style: Traditional
- Room / Application: Bar/Prep
- Sink Base Model: ELG1616
- Minimum Cabinet Size (in.): 21
- Number of Bowls: 1
- Sink Shape: Square
- Sink Depth (in.): 7.675
- Mounting Hardware: Part # 64090404 included for drop-in installation for countertops up to 1-3/4" (44mm) thick. Part # 54300404 included for undermount installation.
- Mounting Hardware Quantity: 1
- Countertop Cutout Dimensions: 15-1/8" x 15-1/8" (384mm x 384mm) with 3/8" (10mm) corner radius
- Capacity to Overflow (gal.): 19.4
- Bowl 1 Shape: Rectangular
- Bowl 1 Length (in.): 13.15
- Bowl 1 Depth (in.): 7.675
- Bowl 1 Drain Opening (in.): 3.5
- Bowl 1 Drain Placement: Rear Center
- Intended Use: Residential/Multi-Family
- Template Included: Yes
- Optional Soap Dispenser: LKGT1054
- Optional Grid: LKOBG1616SS
- Optional Rinsing Basket: LKWRB1209SS
- Optional Drain: LKQS35WH, LKQD35WH, LK99
- Optional Faucet: LKHA4032, LKGT3032, LKGT2042
- Code Compliance: CSA B45.5/IAPMO Z124IAPMO (through supplier)
