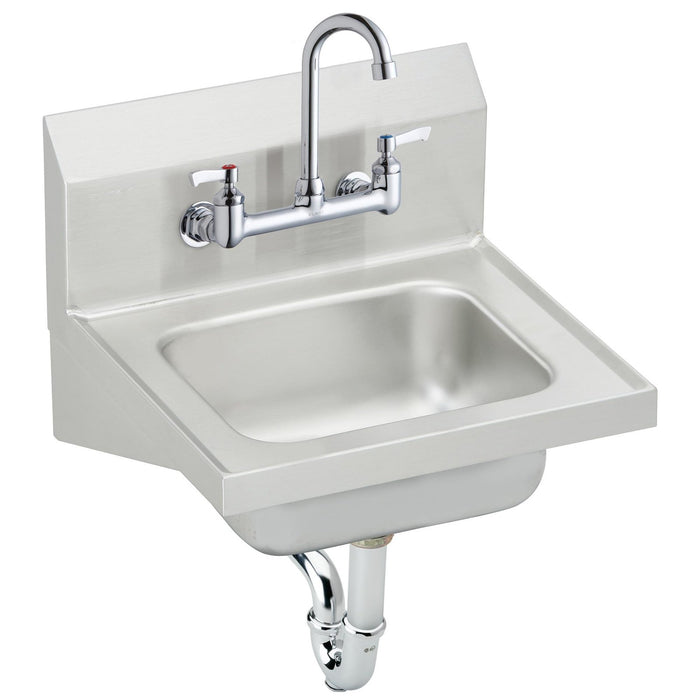

Elkay CHS1716C Stainless Steel 16-3/4" x 15-1/2" x 13", 1-Bowl Wall Hung Handwash Sink Kit

Elkay has been a trusted name in stainless steel since 1920. Through the years, their engineering and manufacturing methods have continued to evolve. Their expertise in forming, welding, trimming and polishing stainless steel have helped us to set the industry standard. Elkay is proud to be America's No. 1 selling kitchen sink company.

Product Features

• Type 304 stainless steel basin.
• 1-3/4" radius coved corners.
• 7" high, full-length backsplash with 45-degree angle sloped top.
• Exposed surfaces have a brushed finish.
• 2" drain opening.
• Easy to clean and sanitize.
• Furnished with hanger and integral stainless steel support brackets.
• KIT INCLUDES: CHS1716 sink, one LK940GN04L2H faucet, one LK8 drain fitting, and one LK500 P-trap; save time having to purchase each piece separately.

Technical Specifications

• Length: 16.75"; Width: 15.5"; Height: 13"
• Sink Depth: 13"
• Material: Stainless Steel
• Finish: Buffed Satin
• Intended Use: Scrub + Handwash
• ADA: No
• Number of Bowls: 1
• Bowl 1 Length: 12"; Bowl 1 Width: 9.25"; Bowl 1 Depth: 6"
• Faucet Holes Configuration: 2
• Minimum Cabinet Size: 0"
• Included Parts: LK940GN04L2H, LK8, LK500
• Base Material: 304
• Code Compliance: ASME A112.19.3/CSA B45.4, NSF 2, ASME A112.18.2/CSA B125.2, ASME A112.18.1/CSA B125.1, CEC, NSF 61, NSF 372 (lead free)ASME A112.18.2/CSA B125.2, NSF
