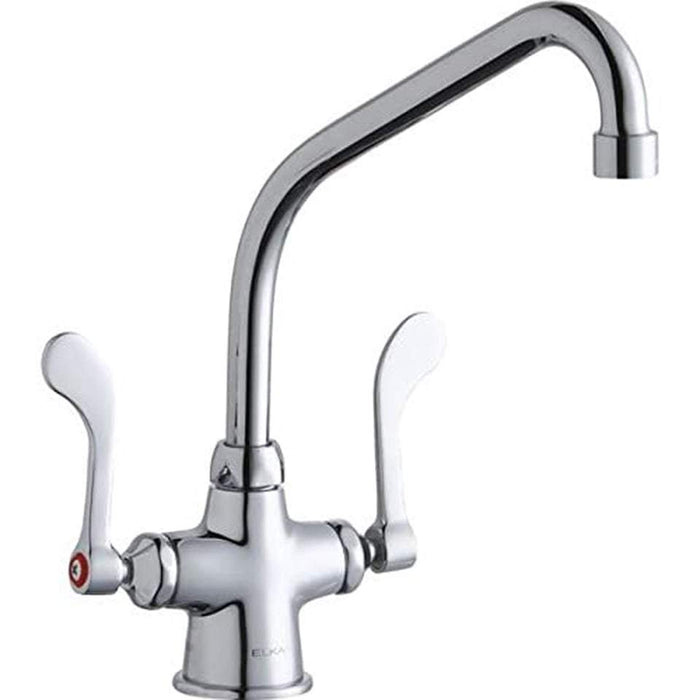

Elkay LK500HA08T4 Single Hole with Concealed Deck Faucet

Elkay LK500HA08T4 Product Specifications

Classification: FOOD SERVICE
Item Weight (lb.): 5.75
Item Length (in.): 7.8925
Item Width (in.): 9.6875
Item Height (in.): 14.125
Product Style: Traditional
Material: Chrome Plated Brass
Finish: Chrome
Application: Scrub + Handwash, Food Service
ADA Compliant: Yes
Installation Type: Deck Mount
Faucet Holes Required: 1
Flow Rate (GPM): 1.5
Faucet Deck Clearance (in.): 9.3750
Spout Height (in.): 11.625
Spout Reach (in.): 8
Spout Type: High Arc
Valve: Quarter Turn Ceramic Disc
Valve Connection: 1 1/8" Unified Screw Thread, Standard Series
Number of Handles/Levers: 2
Handle Type: 4" Wristblade Handle
Faucet Features: Low Flow, Solid Brass Construction, Spout swing restriction pin
Faucet Material: Brass
Compliance Codes: ADA & ICC A117.1, ASME A112.18.1/CSA B125.1, CEC, NSF 61, NSF 372 (lead free)

Downloads & Documentation

Elkay LK500HA08T4 Single Hole with Concealed Deck Faucet with 8" High Arc Spout 4" Wristblade Handles Chrome

$345.94 Save $76

Free Shipping on All Orders!
No Sales Tax Outside of PA!

Elkay commercial faucets combine performance and style. From the commercial kitchen to the classroom, we have faucets for a variety of applications. Select from options and styles that make it easier to take on the tasks you do every day.

Elkay LK500HA08T4 Product Overview

ADA COMPLIANT: Faucet is ADA compliant.
LEAD-FREE COMPLIANT: Certified to NSF/ANSI 61 and 372 to meet all federal and state regulations for low or no-lead products.
LOW FLOW: Includes water-saving features.
SOLID BRASS CONSTRUCTION: Built for long-term durability.
INCLUDES VANDAL-RESISTANT AERATOR: Comes installed with 1.5 GPM water-saving, vandal-resistant aerator; 2.2 and .5 GPM aerator inserts included.
SPOUT SWING RESTRICTOR PIN: Special pin locks faucet into stationary position for required applications.
1 FAUCET HOLE: Faucet designed to be installed using one faucet hole.
