TOTO MS614124CUFG#01 Carlyle II 1G Toilet Specifications

  • Length (in.): 28.25
  • Width (in.): 16.625
  • Height (in.): 28.75
  • Weight (lb): 115.3
  • Rim Height (in.): 16.125
  • Seat Height (in.): 17.5
  • ADA Compliant: Yes
  • WaterSense Certified: Yes
  • CalGreen: Yes
  • CEC: Yes
  • Battery Included: No
  • Mounting/Installation: Floor Mount/Floor Outlet
  • Water Consumption (GPF): 1.0
  • Flush Lever Location: Left
  • Rough-in Size (in.): 12
  • Flush Valve (in.): 3
  • Trapway Diameter (in.): 2.125
  • Shape: Elongated
  • Material: Vitreous China/Plastic
  • Warranty: Manufacturer One Year Limited
  • Category: One-Piece Toilets
  • Finish: Cotton White
  • UPC Code: 739268403994

TOTO MS614124CUFG#01 Carlyle II 1G Toilet Documentation

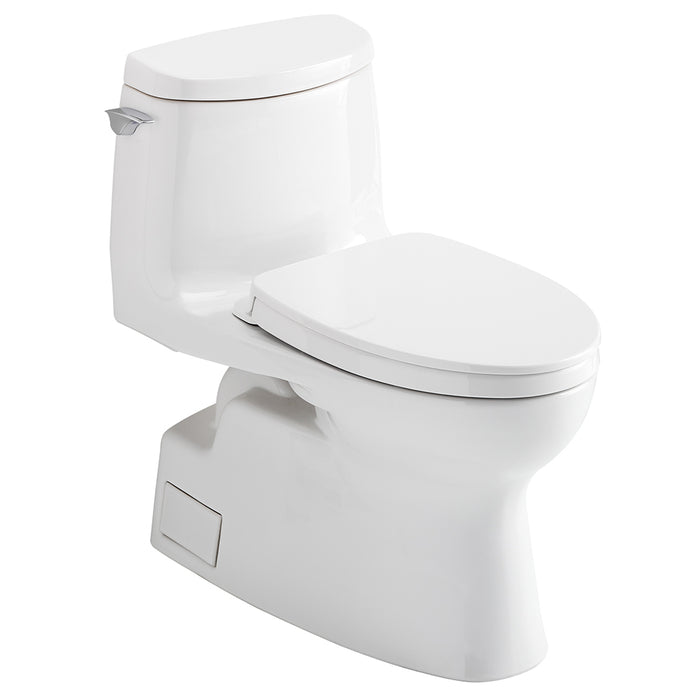

TOTO MS614124CUFG#01 Carlyle II 1G One-Piece Toilet with SS124 SoftClose Seat, WASHLET+ Ready, Cotton White

  • $747.51 Save $275

Free Shipping
on All Orders!

Ships within 1 - 2 business days
Free Shipping on All Orders!
No Sales Tax Outside of PA!


The TOTO Carlyle II One-Piece Elongated 1.28 GPF Universal Height Toilet with CEFIONTECT features a sleek, one-piece design that will enhance your bathroom. The TOTO Carlyle II 1G features TOTO's industry leading 1G technology, offering a powerful flush that flushes completely and fully with only one gallon of water. TOTO's TORNADO FLUSH is a hole-free rim design with dual-nozzles that creates a centrifugal washing action that assists in rinsing the bowl more efficiently. This version of the TOTO Carlyle II 1G includes CEFIONTECT a layer of ceramic glaze that minimizes waste from sticking to ceramic surfaces. This feature, coupled with TORNADO FLUSH, assists to reduce the frequency of toilet cleanings, minimizing the usage of water, harsh chemicals, and time required for cleaning.

The one-piece design is not only aesthetically pleasing, but also offers the benefit of being easier to clean versus a two-piece toilet. By removing the gap between the tank and bowl, we eliminate the hiding place for dirt and debris. An additional benefit of the one-piece toilet is that there is no threat of leaks from bolts or gaskets that can occur in two-piece toilets. Skirted Design toilets also eliminate the need to reach behind the bowl to clean the nooks and crannies of the exterior trapway. This version of the Carlyle II 1G offers TOTO T40 WASHLET+ compatibility for when you are ready to upgrade. WASHLET+ toilets feature a channel on the bowl surface to help conceal your WASHLET+ supply line and power cord for seamless integration. The TOTO Carlyle II is designed in TOTO's Universal Height, which allows for a more comfortable seat position across a wide range of users. The Carlyle II 1G is ADA compliant and meets the standards for EPA WaterSense, and California's CEC and CALGreen requirements.

The TOTO Carlyle II includes a tank to bowl gasket, tank to bowl hardware, toilet bolt caps and SoftClose toilet seat. Additional items needed for installation and use must be Purchased separately: wax ring, toilet mounting bolts, water supply lines, and optional T40 WASHLET+ electronic bidet seat.

TOTO MS614124CUFG#01 Carlyle II 1G Toilet Features

  • Elongated one-piece Skirted Design toilet, easier to maintain versus a two-piece toilet
  • 1.0 gallons per flush 1G technology with TORNADO FLUSH system for a powerful centrifugal rinse and water savings
  • TOTO's extraordinarily smooth CEFIONTECT glaze minimizes waste from sticking to porous, ceramic surfaces.
  • SoftClose seat included. No more slammed lids!
  • ADA, WaterSense, CALGreen, and CEC compliant

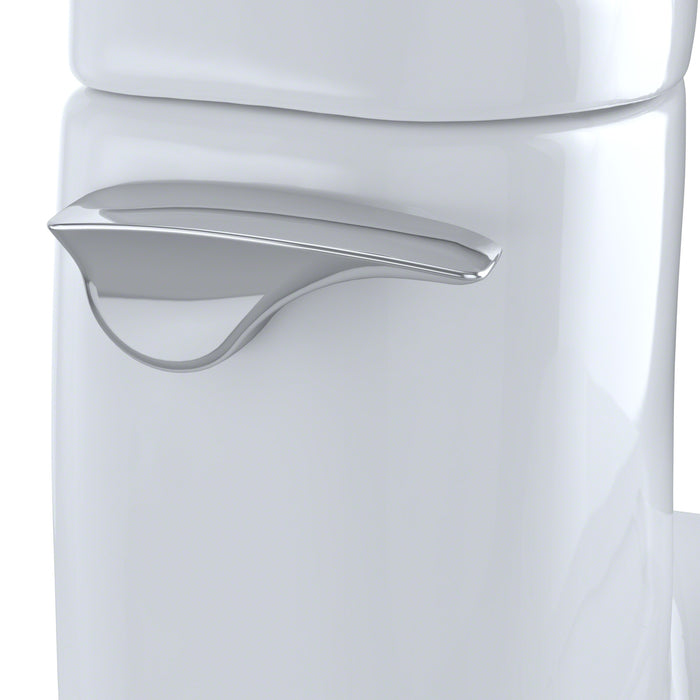

  • Left-hand chrome trip lever
  • Included parts: toilet tank, toilet bowl, SoftClose toilet seat, tank to bowl gasket, tank to bowl hardware, and toilet bolt caps
  • Purchased separately: wax ring, toilet mounting bolts, water supply lines, and optional T40 WASHLET+ electronic bidet seat.
  • May be adapted for 10" or 14" rough-in with optional TOTO parts: TSU01W.10R or TSU01W.14R (sold separately).
