TOTO MW4743084CUFG#01 Toilet Specifications
- Color/Finish: Cotton White
- Product Type: WASHLET+ Toilets
- TOTO Collection: WASHLET+
- Warranty: Manufacturer One Year Limited
- Material: Vitreous China, Plastic
- Shape: Elongated
- Component Parts SKUs: CT474CUFGT40#01, ST453UA#01, SW3084T40#01
- Item Length (in.): 28.5
- Item Width (in.): 16
- Item Height (in.): 30
- Item Weight (lb.): 119.5
- Rim Height (in.): 16.125
- Seat Height (in.): 17.5
- ADA Compliant: Yes
- WaterSense Certified: Yes
- CALGreen: Yes
- CEC Compliant: Yes
- Battery Included: Yes
- Battery Type: Alkaline
- Mounting Type: Floor Mount/Floor Outlet
- Water Consumption (GPF): 1.0

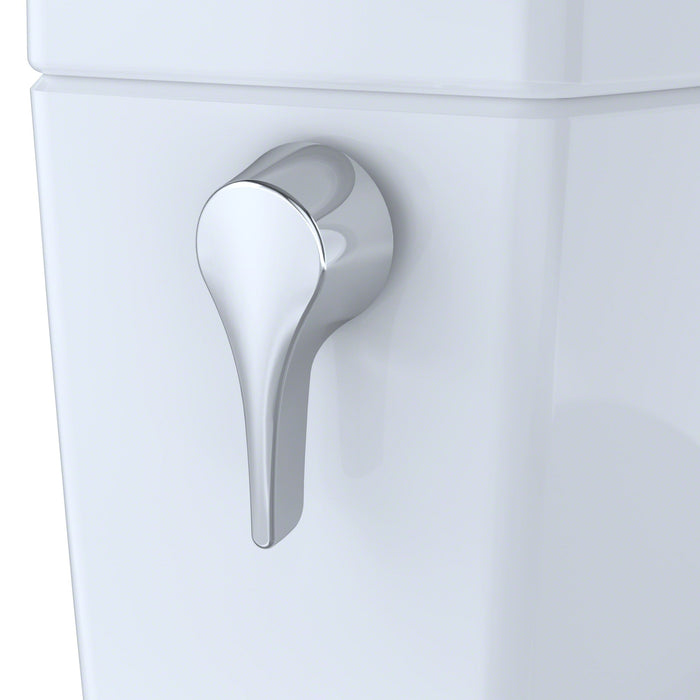

- Flush Lever Location: Left
- Rough-in (in.): 12
- Flush Valve Size (in.): 3
- Trapway Diameter (in.): 2.125
TOTO MW4743084CUFG#01 Toilet Support Documentation
TOTO MW4743084CUFG#01 Toilet Product Video
TOTO MW4743084CUFG#01 Washlet+ Vespin II 1G Two-Piece 1.0 GPF Toilet and Washlet+ C5 Bidet Seat
No Sales Tax Outside of PA!

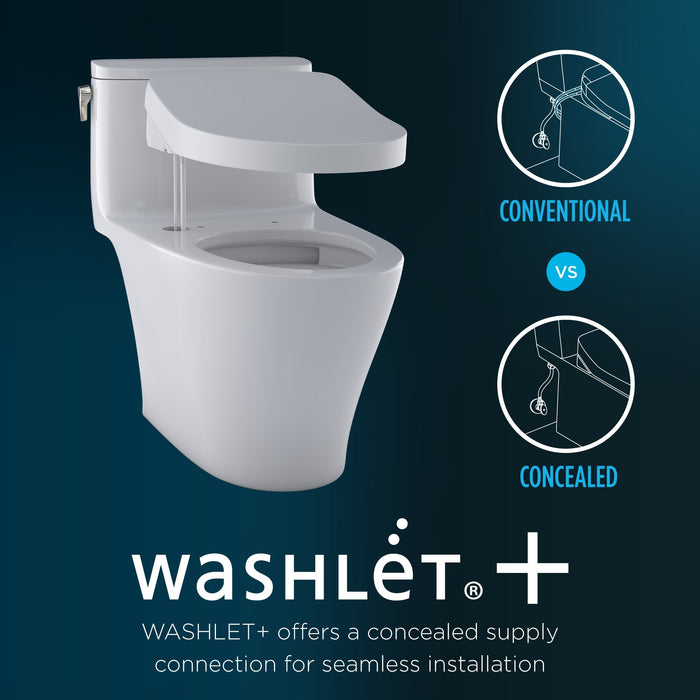

The TOTO T40 Washlet+ Vespin II 1G two-piece elongated 1.0 GPF Toilet and Washlet C5 Bidet Seat is designed to conceal the Washlet power cord and water supply hose for a seamless installation. Part of the newly redesigned C Series, the Washlet C5 features a soft rear spray, rear cleanse, and front cleanse with the option of an oscillating or pulsating stream.
The temperature and pressure of the water are adjustable, each with five settings. The controls are located on a slim, wireless remote.

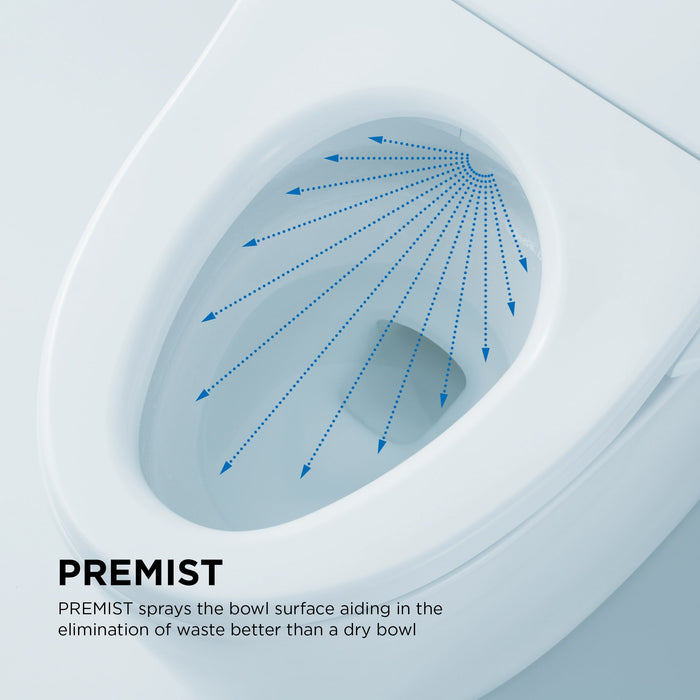

Premist wets the surface of the toilet bowl, aiding in the removal of waste and resulting in a better clean. The C5 model utilizes TOTO's eWater+ system when the wand self-cleans. eWater+ transforms the water into a safe and powerful compound, creating peace of mind by cleaning the inside and outside of the wand before and after every use.

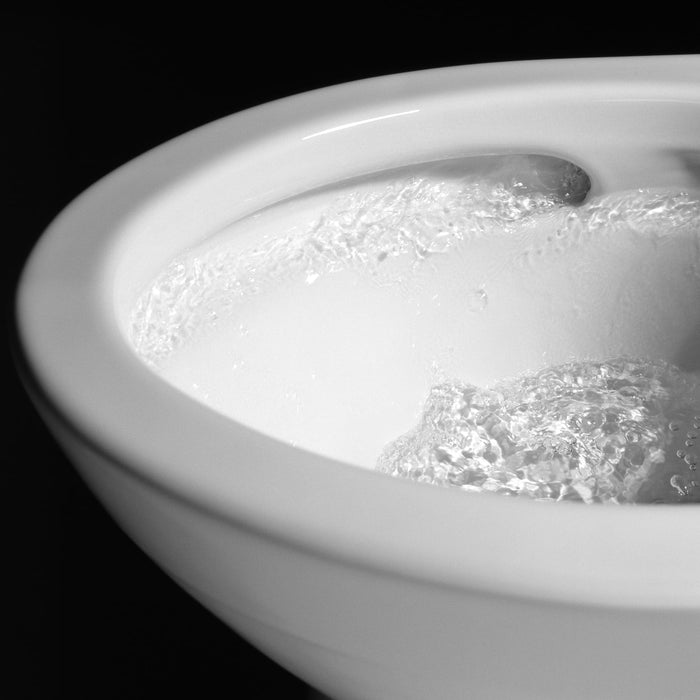

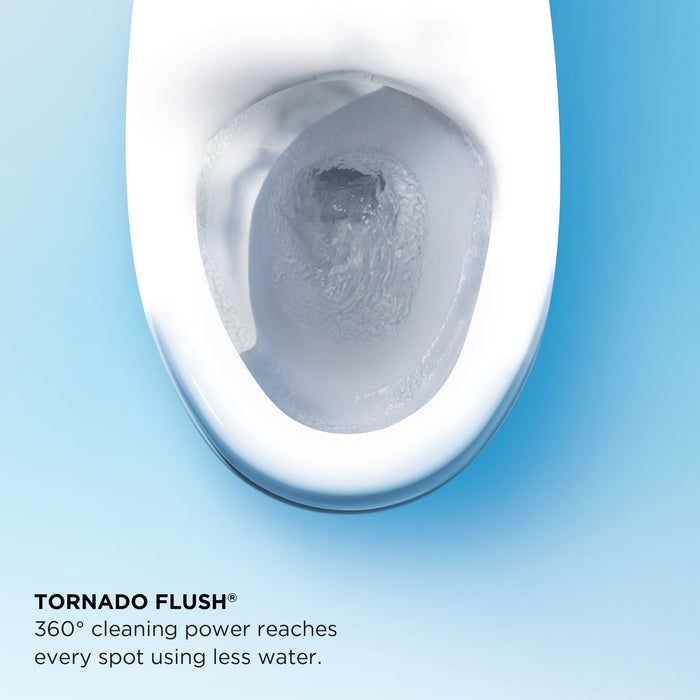

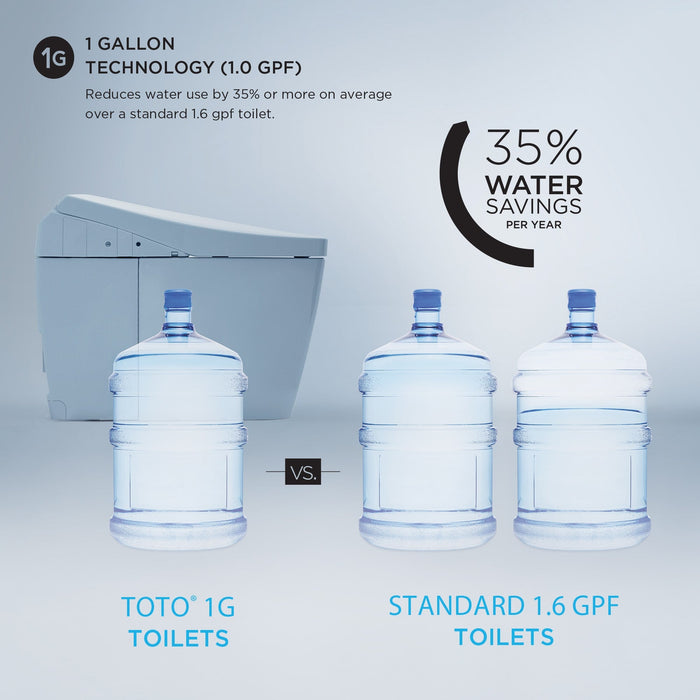

The Washlet features a heated SoftClose seat with five temperature settings. The Washlet features an air deodorizer and a warm air dryer with five temperature settings. The Vespin II 1G features TOTO's Tornado Flush, a hole-free rim design with dual-nozzles that creates a centrifugal washing action that assists in rinsing the bowl more efficiently. TOTO's industry leading 1G technology offers a powerful flush that flushes completely and fully with only one gallon of water.

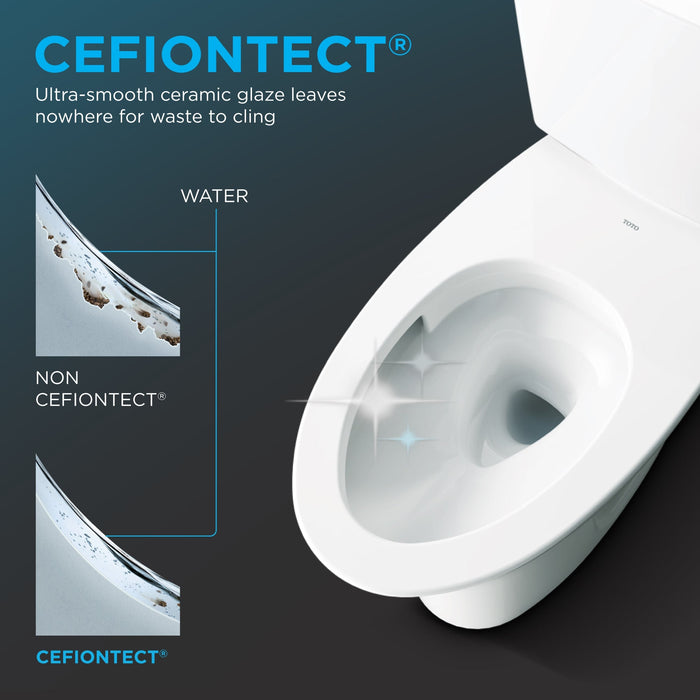

This version of the TOTO Vespin II 1G includes CEFIONTECT, a layer of ceramic glaze that minimizes waste from sticking to ceramic surfaces. This feature, coupled with the Washlet Premist and Tornado Flush, assists to reduce the frequency of toilet cleanings, minimizing the usage of water, harsh chemicals, and time required for cleaning. The TOTO Vespin II 1G is designed in TOTO's Universal Height, which allows for a more comfortable seat position across a wide range of users.
This Washlet+ includes the Washlet with water supply adapter, Vespin II bowl and tank set with hardware, and toilet bolt caps. Compatible with T40 Washlet+ electronic bidet seat and toilet bowl components only. The Vespin II may be adapted for 10" or 14" rough-in with the purchase of a separately sold rough-in. Additional items needed for installation must be purchased separately: wax ring, toilet mounting bolts, and toilet water supply lines.
TOTO MW4743084CUFG#01 Toilet Features and Overview
- Washlet+ bidet seat and toilet, specially designed to conceal the Washlet water supply and power cord
- Premist wets the surface of the toilet bowl, aiding in the removal of waste and resulting in a better clean.
- Wand self cleans inside and out with eWater+ advanced technology
- Front and rear warm water washing with five adjustable temperature and pressure controls. Oscillating or pulsing stream option
- Heated seat and warm air dryer with five variable settings
- Automatic air deodorizer removes odors while sitting on the seat
- Remote control operated with easy to read illuminated touch pad and 2 user memory to save preferred settings
- Water saving 1G Tornado Flush system with CEFIONTECT glaze to reduce bowl friction
- Skirted design, Universal Height elongated bowl; ADA, WaterSense, CALGreen, and CEC compliant
- Included parts: Washlet installation hardware, tank to bowl gasket, tank to bowl hardware, and toilet bolt caps
- Purchased separately: wax ring, toilet mounting bolts, and water supply lines
- Compatible with T40 Washlet+ components only
- May be adapted for 10" or 14" rough-in with optional parts: TSU01W.10R or TSU01W.14R (sold separately)
