TOTO MW6144726CUFG#01 Carlyle II 1G Toilet and S7 Bidet Seat Specifications

  • Component #1: CST614CUFGAT40#01
  • Component #2: SW4726AT40#01

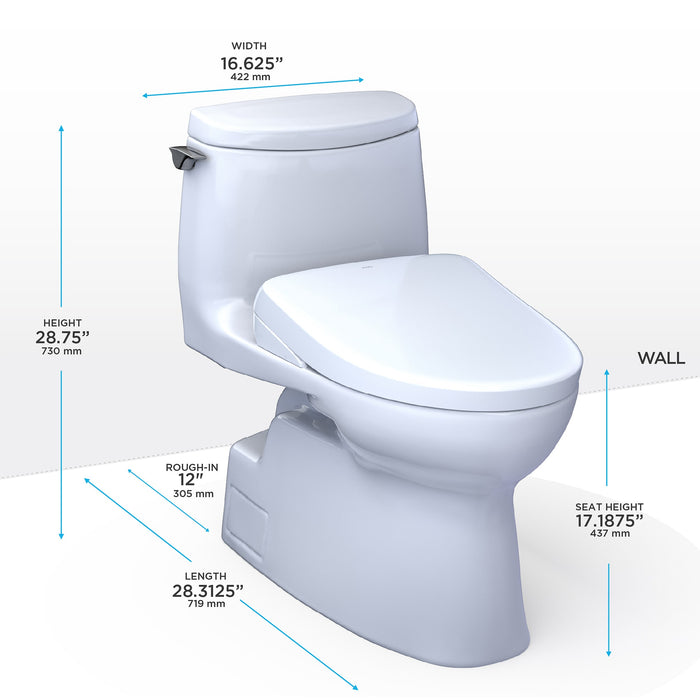

  • Length (in.): 28.25
  • Width (in.): 16.625
  • Height (in.): 28.75
  • Weight (lb): 125.6
  • Rim Height (in.): 16.125
  • Seat Height (in.): 17.1875
  • ADA Compliant: Yes
  • CalGreen: Yes
  • CEC: Yes
  • Battery Included: Yes
  • Battery Type: Alkaline
  • Mounting/Installation: Floor Mount/Floor Outlet
  • Water Consumption (GPF): 1.0

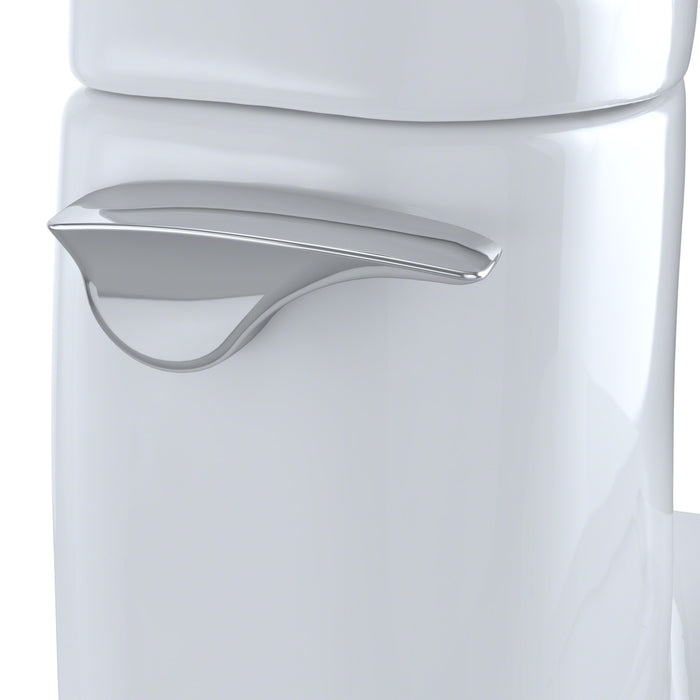

  • Flush Lever Location: Left
  • Rough-in Size (in.): 12
  • Flush Valve (in.): 3
  • Trapway Diameter (in.): 2.125
  • Shape: Elongated
  • Material: Vitreous China/Plastic
  • Warranty: Manufacturer One Year Limited
  • Collection: WASHLET+
  • Category: WASHLET+ One-Piece Toilets
  • Finish: Cotton White
  • UPC Code: 739268445444

TOTO MW6144726CUFG#01 Carlyle II 1G Toilet and S7 Bidet Seat Documentation


TOTO MW6144726CUFG#01 WASHLET+ Carlyle II 1G One-Piece Toilet and WASHLET+ S7 Bidet Seat, Cotton White

  • $1,951.00 Save $836

Free Shipping
on All Orders!

Free Shipping on All Orders!
No Sales Tax Outside of PA!


The TOTO T40 WASHLET+ Carlyle II 1G Two-Piece Elongated 1.0 GPF Toilet and Contemporary WASHLET S7 Bidet Seat is designed to conceal the WASHLET power cord and water supply hose for a seamless installation. The WASHLET S7 features TOTO's technologically advanced EWATER+ system that mists the wand and toilet bowl, reducing the need for harsh cleaning chemicals. PREMIST wets the surface of the toilet bowl, aiding in the removal of waste and resulting in a better clean.

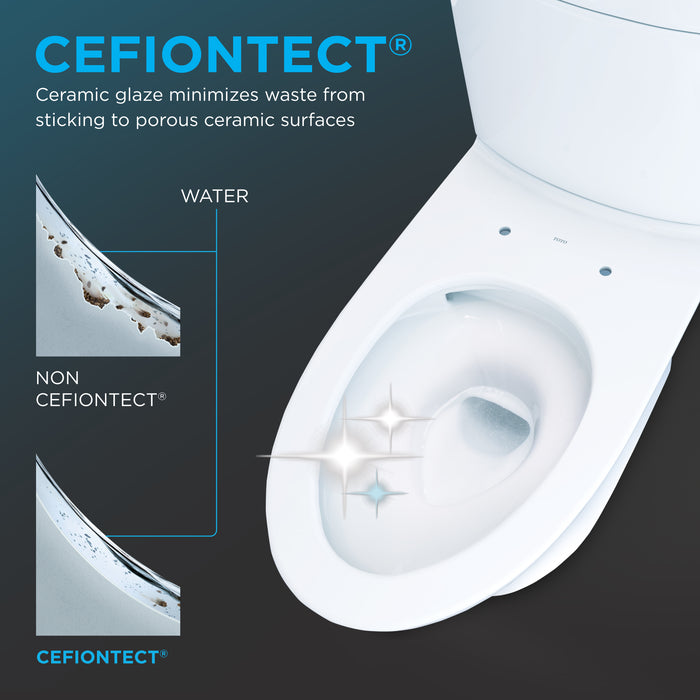

The TOTO WASHLET S7 is fully automated, including an illuminated remote control with 5 spray settings, heated seat, and instantaneous water heating. The Carlyle II 1G features TOTO's TORNADO FLUSH, a hole-free rim design with dual-nozzles that creates a centrifugal washing action that assists in rinsing the bowl more efficiently. TOTO's industry leading 1G technology offers a powerful flush that flushes completely and fully with only one gallon of water. This version of the TOTO Carlyle II 1G includes CEFIONTECT, a layer of ceramic glaze that minimizes waste from sticking to ceramic surfaces. This feature, coupled with the WASHLET PREMIST and TORNADO FLUSH, assists to reduce the frequency of toilet cleanings, minimizing the usage of water, harsh chemicals, and time required for cleaning. The TOTO Carlyle II 1G is designed in TOTO's Universal Height, which allows for a more comfortable seat position across a wide range of users.

This kit includes the WASHLET with water supply adapter, Carlyle II bowl and tank set with hardware, and toilet bolt caps. Compatible with T40 WASHLET+ toilet bowl components only. The Carlyle II may be adapted for 10" or 14" rough-in with the purchase of a separately sold rough-in. Additional items needed for installation must be Purchased separately: wax ring, toilet mounting bolts, and toilet water supply lines.

TOTO MW6144726CUFG#01 Carlyle II 1G Toilet and S7 Bidet Seat Features

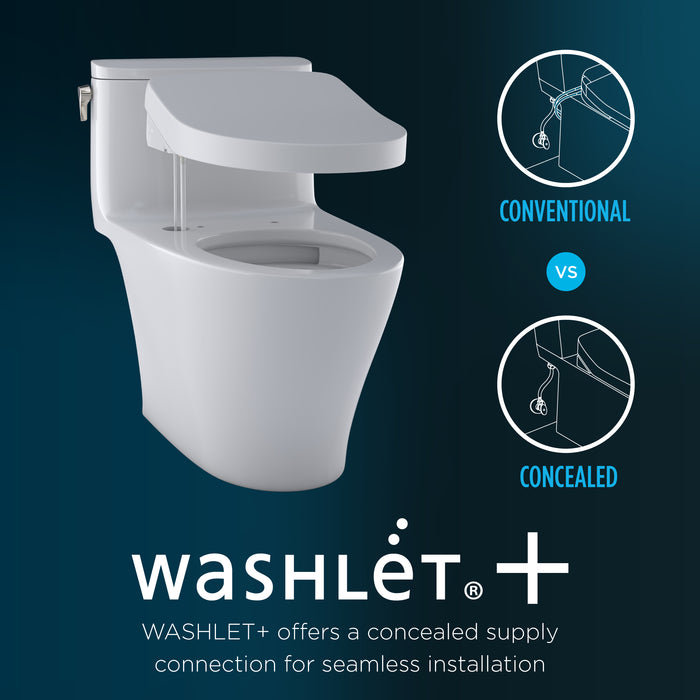

  • WASHLET+ bidet seat and toilet, specially designed to conceal the WASHLET water supply and power cord

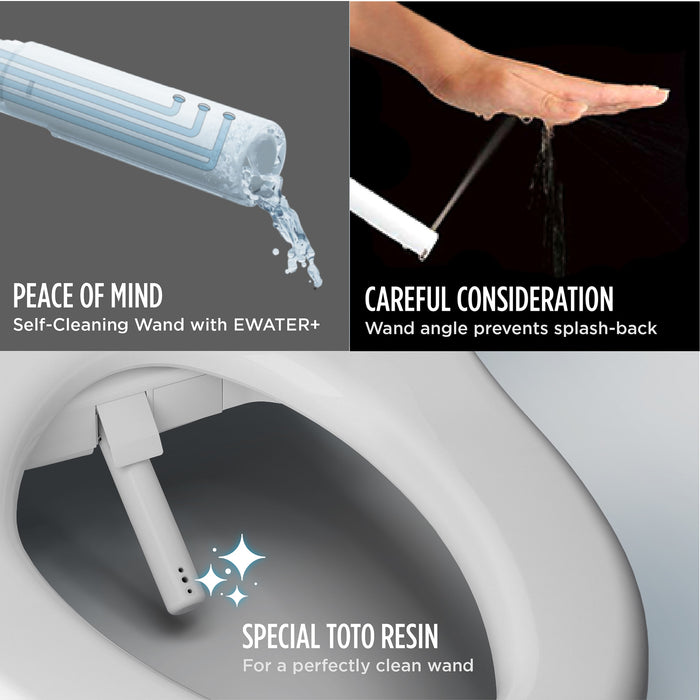

  • EWATER+ mists the wand and toilet bowl, reducing the need for harsh cleaning chemicals.
  • Front and rear warm water washing with five adjustable temperature and pressure controls. Oscillating or pulsing stream option

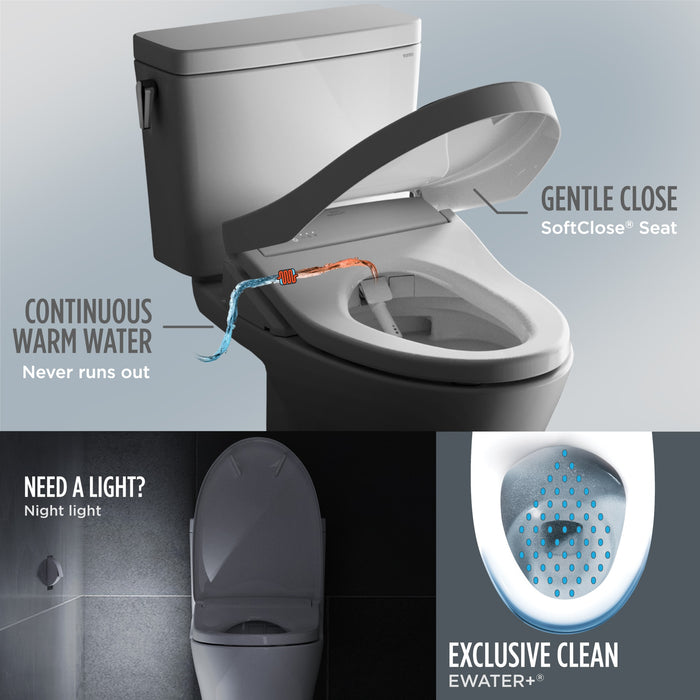

  • Tankless, instantaneous water heating means never running out of warm water

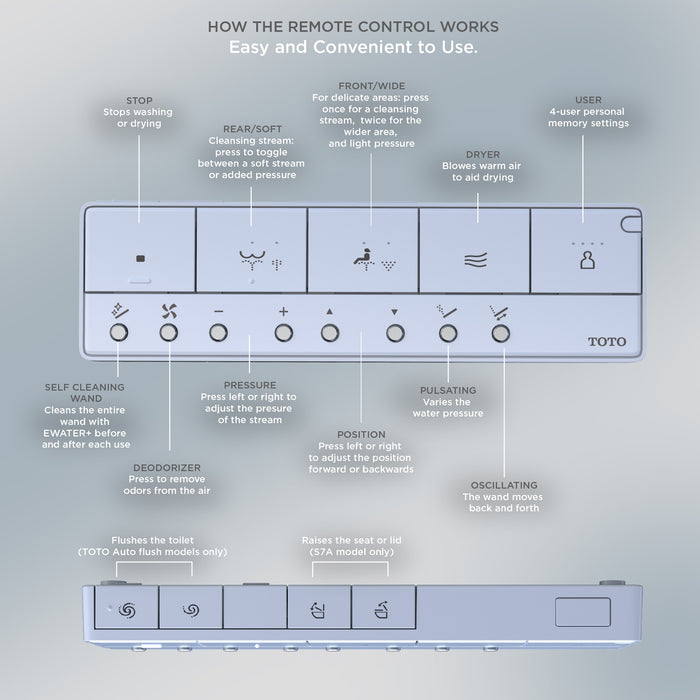

  • Remote control operated with easy to read illuminated touch button with 4-user memory storage to save preferred settings

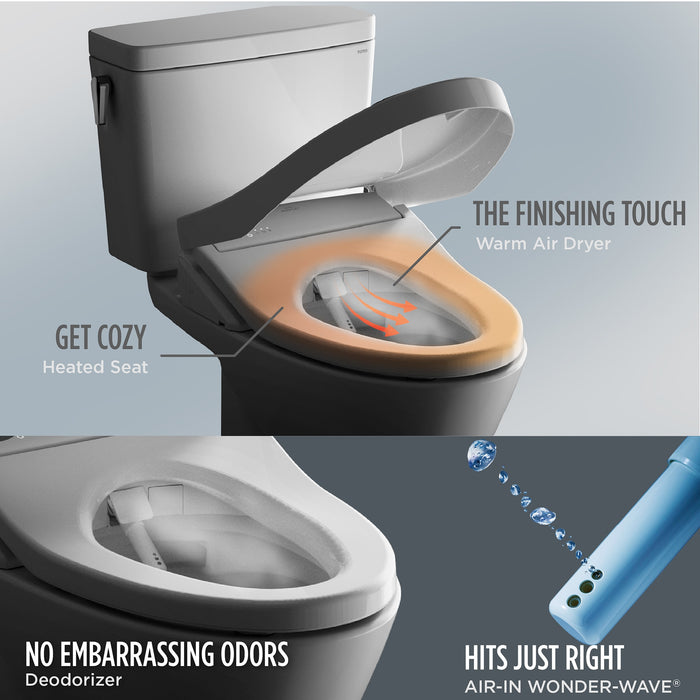

  • SoftClose heated seat, automatic air deodorizer, and warm air dryer with five adjustable temperatures

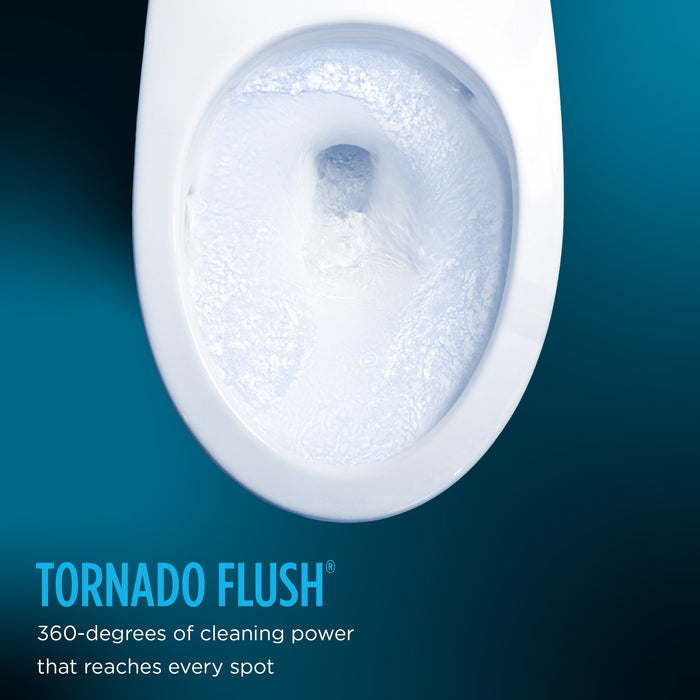

  • Water saving 1G TORNADO FLUSH system with CEFIONTECT glaze to reduce bowl friction
  • PREMIST wets the surface of the toilet bowl, aiding in the removal of waste and resulting in a better clean.
  • Skirted design, Universal Height elongated bowl; ADA, WaterSense, CALGreen, and CEC compliant
  • Included parts: WASHLET installation hardware, tank to bowl gasket, tank to bowl hardware, and toilet bolt caps; Purchased separately: wax ring, toilet mounting bolts, and water supply lines
  • Compatible with T40 WASHLET+ components only
  • May be adapted for 10" or 14" rough-in with optional parts: TSU01W.10R or TSU01W.14R (sold separately)
