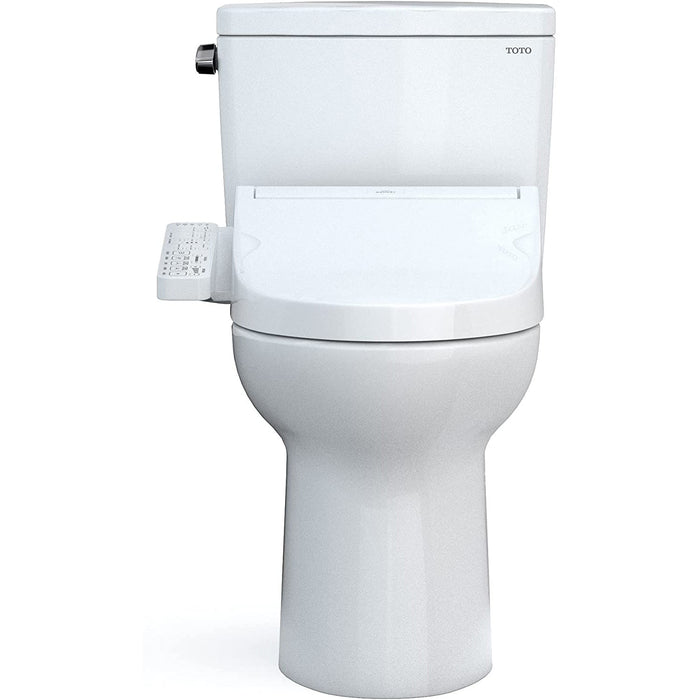

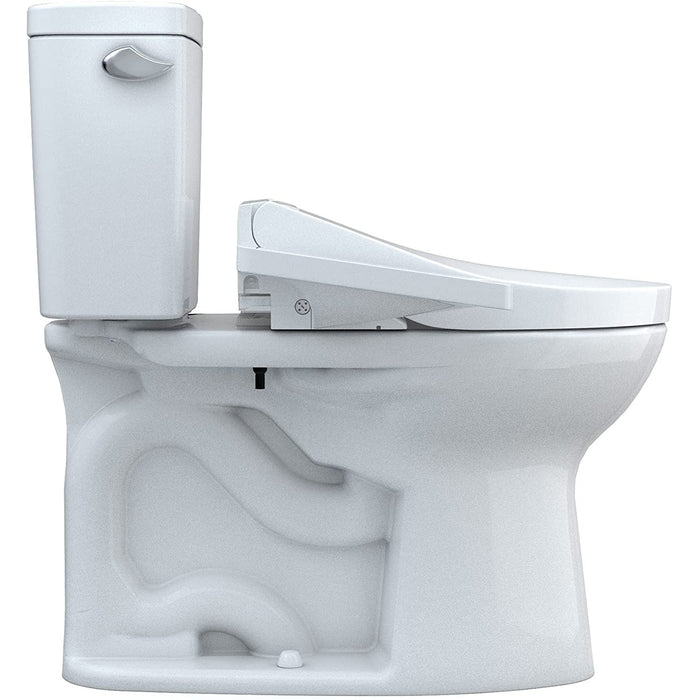

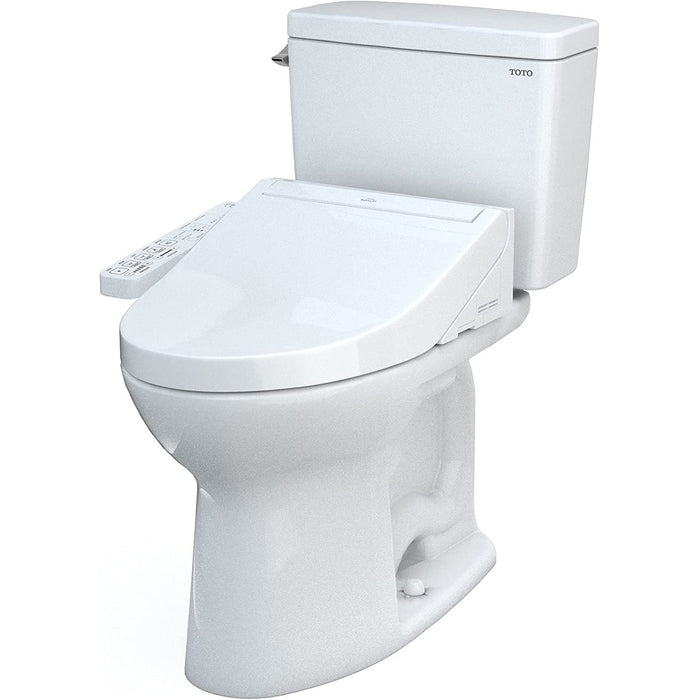

TOTO MW7763074CEFG.10#01 Drake 2-Piece Toilet Features
- High-tech Electronic Bidet Seat and Toilet Combination
- Concealed supply connection for seamless installation
- Tornado Flush advanced flushing system
- CEFIONTECT ceramic glaze
- Universal Height
- Elongated front bowl and tank set with Washlet
- EWATER+ auto cleans the wand
- Water Premist of bowl before each use

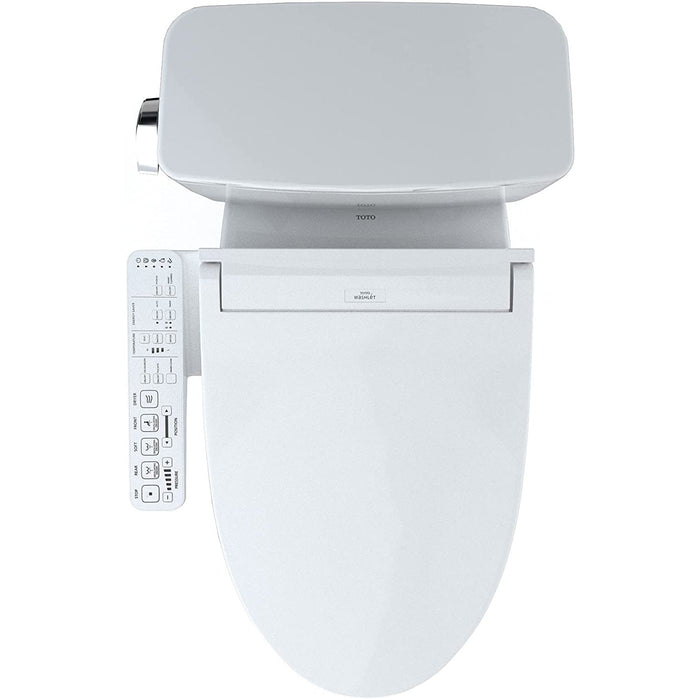

- Convenient arm control panel
- Gentle Aerated, Warm Water, Dual Action Spray with Oscillating and Pulsating feature

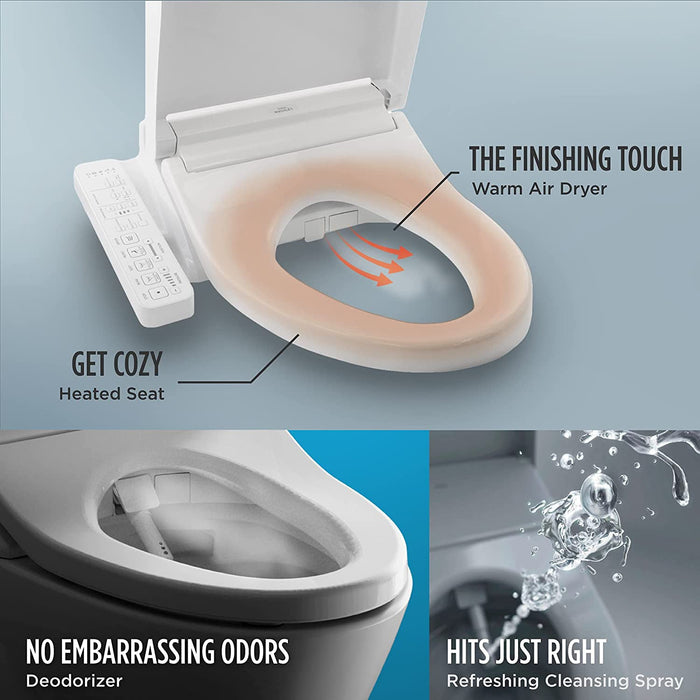

- Heated seat with temperature control
- Automatic air deodorizer
- Warm air Drying with three variable temperature settings
- Quick release feature
- Adjustable water temperature and volume

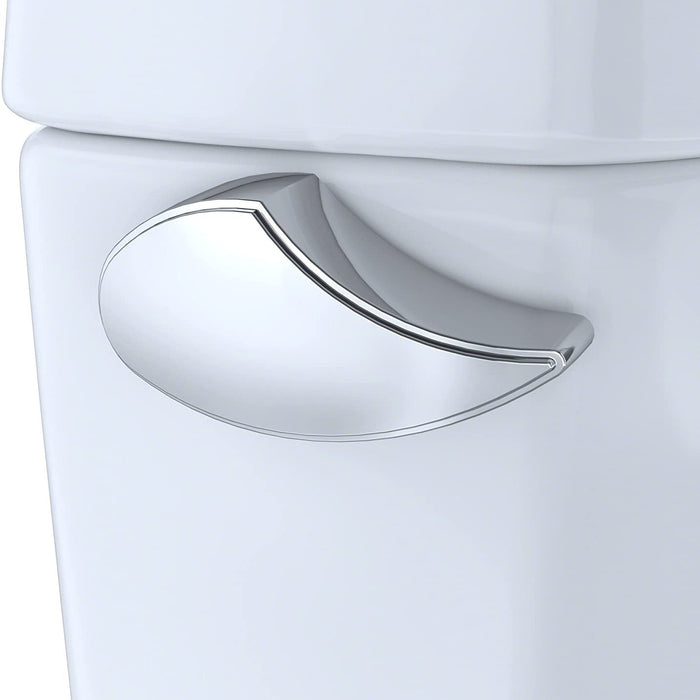

- Chrome plated trip lever included
TOTO MW7763074CEFG.10#01 Drake 2-Piece Toilet Specifications

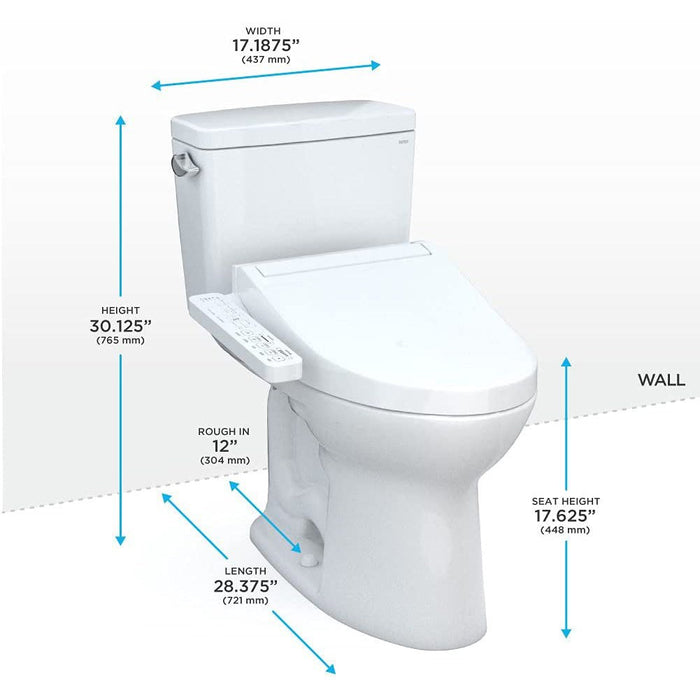

- Bowl Height: 16.125 in. (Universal Height)
- Depth: 28.375 in.
- Flush Valve Size: 3 in.
- Gallons Per Flush: 1.28
- Height: 30.125 in.
- Product Weight: 94 lbs.
- Rough In: 10 in.
- Trapway: 2.125 in.
- Width: 17.1875 in.
- Seat Included: Yes
- Bowl Shape: Elongated
- Concealed Trapway: No
- Dual Flush: No
- Electronic: Yes
- Heated Seat: Yes
- Installation Type: Floor Mounted
- Material: Vitreous China
- Soft Close: Yes
- Trip Lever Placement: Left
- ADA Compliant
TOTO MW7763074CEFG.10#01 Drake Two-Piece 1.28 GPF Washlet+ Toilet with C2 Bidet Seat (for 10" Rough ins)
No Sales Tax Outside of PA!
This TOTO Drake two-piece universal height elongated toilet comes with a 1.28 GPF Tornado Flush, and C2 Washlet Bidet Seat. The Washlet+ designation implies a special design aimed to accurately conceal the Washlet power cord and water supply hose for a clean look and easy installation. Designed for 10" rough in installations.

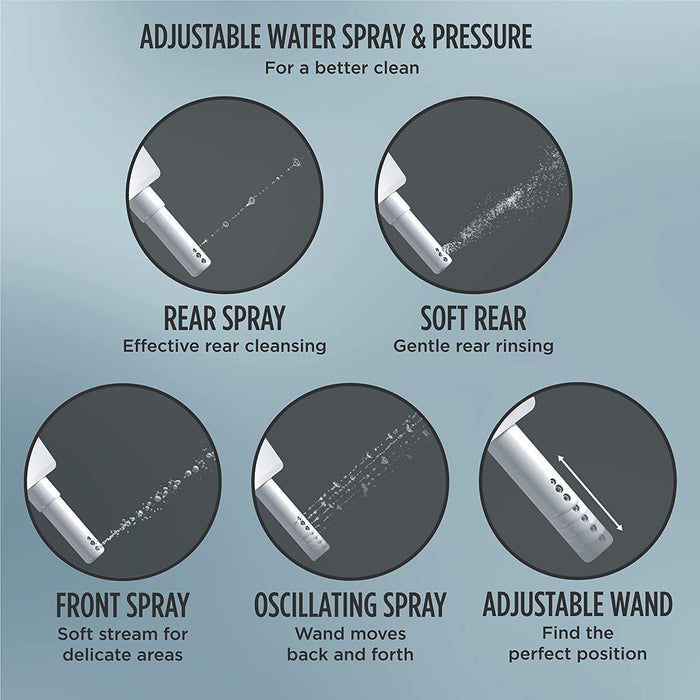

Part of the newly redesigned C Series, the Washlet C2 features a soft rear spray, rear cleanse, and front cleanse with the option of an oscillating stream. The temperature and pressure of the water are adjustable with three temperature settings and five pressure settings. The controls are located on a convenient arm control panel. The Premist function sprays the bowl with water before each use, preventing waste buildup and keeping the toilet bowl clean.
The C2 model utilizes TOTO's EWATER+ system and a self-cleaning wand. EWATER+ uses specially electrolyzed water, transforming the water into a safe and powerful disinfecting compound. This cleaning technology automatically cleans the inside and outside of the wand before and after every use.
The Washlet features a heated SoftClose seat with three temperature settings. The Drake toilet features TOTO's Tornado Flush, a rimless, hole-free design with dual-nozzles that creates a centrifugal washing action that assists in rinsing the bowl more efficiently. This version of the TOTO Drake also features CEFIONTECT, a layer of exceptionally smooth glaze that minimizes waste from sticking to the ceramic. CEFIONTECT, coupled with Premist and Tornado Flush, assists to reduce the frequency of toilet cleanings, minimizing the usage of water, harsh chemicals, and time required for cleaning.
Designed in TOTO's Universal Height, which allows for a more comfortable seat position across a wider range of users.
This Washlet+ toilet includes the Washlet, Drake bowl and tank set with hardware, and toilet bolt caps. Additional items needed for installation must be purchased separately: wax ring, toilet mounting bolts, and toilet water supply lines.
TOTO MW7763074CEFG.10#01 Drake 2-Piece Toilet Documentation
CAD Drawing - MW7763074CEFG.10#01Spec Sheet - MW7763074CEFG.10#01
Installation Manual - MW7763074CEFG.10#01
Spare Parts Manual - MW7763074CEFG.10#01
