TOTO TEU3LAi4#SS Commercial Flush Valve Features and Benefits
- ECOPOWER 0.5 GPF Urinal Flushometer Valve

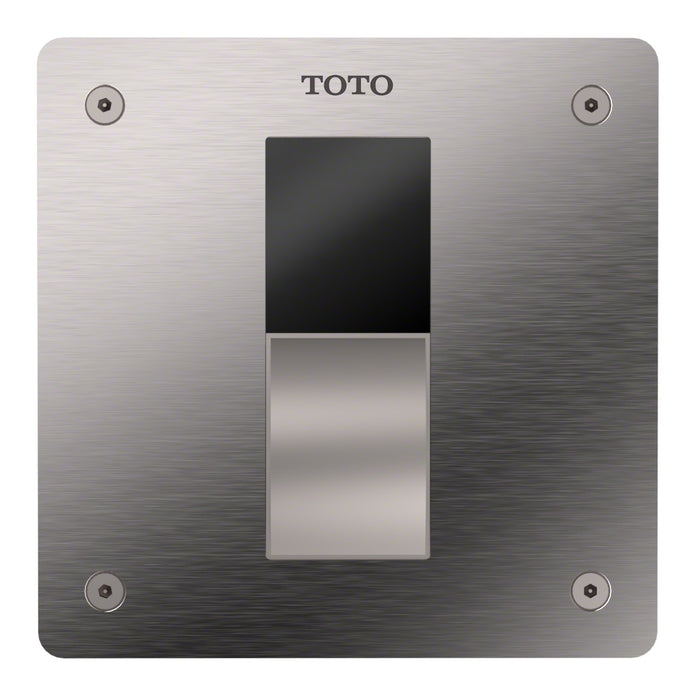

- Concealed valve with brushed stainless steel cover plate provides an additional level of sophistication
- Powered by the force of running water: No external power source or battery replacement is necessary
- Replenishes power stores with no minimum daily usage
- Programmed timing eliminates ghost flushing that wastes water
- Mechanical manual override flush button
- Piston and solenoid mechanism: a marked improvement over traditional rubber diaphragm type valves
- Tailpiece adjusts for neutral rough-in
- WaterSense certified and CA Title 20 and CALGreen compliant
- IoT-enabled product ready to remotely monitor usage rates and performance
- ADA compliant
- Includes flushometer valve
- Purchased separately: angle stop and vacuum breaker set.
TOTO TEU3LAi4#SS Commercial Flush Valve Specifications
- Color: Stainless Steel
- Product Collection: EcoPower
- Warranty: Manufacturer Three Year Limited
- Material: Bronze, Stainless Steel
- Item Length (in.): 4.875
- Item Width (in.): 4.75
- Item Height (in.): 4.75
- Item Weight (lb.): 8
- ADA Compliant: Yes
- WaterSense Certified: Yes
- Installation: Concealed
- Battery Included: Yes
- Battery Type: Lithium Ion
- Water Consumption (GPF): 0.5
TOTO TEU3LAi4#SS Commercial Flush Valve Downloads and Documentation
TOTO TEU3LAi4#SS Touchless 0.5 GPF Urinal Flushometer Valve, IoT-Enabled, Stainless Steel
Frequently Asked Questions
• What does back-spud vs top-spud mean?
Spud refers to where the valve connects to the urinal - back-spud valves enter from the wall behind the urinal, top-spud valves enter from above. Check your existing urinal's water inlet position before ordering. The two aren't interchangeable.
• Does ECOPOWER need batteries or external power?
No batteries and no wiring. ECOPOWER generates its own electricity from the force of water flowing through the valve each time it activates, then stores it for the next use. That's why commercial facilities prefer ECOPOWER - no battery replacement schedule and no electrician needed for installation.
• What's the difference between IoT-Ready and IoT-Enabled?
IoT-Ready means the product is built to work with TOTO's smart-monitoring system but needs a separately-sold communication card to activate. IoT-Enabled comes with the card already installed and ready to connect. Both perform the same core functions - the IoT module adds remote usage tracking, maintenance alerts, and diagnostic data for facility managers.
• Is the 4x4 cover plate included?
Yes. The 4x4-inch brushed stainless cover plate ships with the valve. It covers the concealed-valve cavity and finishes the installation. Compatible with standard commercial urinal cavities.
• Will this work with my existing urinal?
This 0.5 GPF valve is designed for commercial urinals rated for the same flow. Will work with any flushometer-style urinal that has a back-spud water inlet and a matching 0.5 GPF flow rating. Match the GPF to your urinal's rating - installing the wrong rate will cause clogs or wasted water.
TOTO ECOPOWER 0.5 GPF Urinal Flushometer Valve is ideal for high-traffic commercial spaces, providing an elegant water conservation solution. IoT-Enabled: Product comes equipped with IoT communication card to remotely monitor usage rates, water consumption and fixture performance.
Engineered to require no electricity or routine battery replacement, the ECOPOWER Flushometer Valve saves energy and water while providing maximum performance in even the most demanding commercial spaces.
Powered by the force of running water, ECOPOWER hydro-turbines create an electrical current that is stored in rechargeable cells to power the sensor of the valve. The ECOPOWER flush valve is highly efficient, replenishing power stores with no minimum daily usage.
No external power source or battery replacement is necessary. Ensuring that water flows only when needed, the self-adjusting ECOPOWER sensor eliminates ghost flushing that wastes water. A minimum of six seconds in front of the sensor is required to get its acknowledgement, preventing excessive flushing. A mechanical manual override flush button is present when needed.
The piston and solenoid mechanism, a marked improvement over traditional rubber diaphragm type valves, maintains consistent flush volume under a range of supply pressures.
The valve is WaterSense certified and CA Title 20 and CALGreen compliant. The valve is also ADA compliant.
Includes flushometer valve for urinals.
Purchased separately: angle stop, vacuum breaker set, spud nut and escutcheon to connect to the urinal spud, and sweat solder kit.
TOTO TEU3LAi4#SS Commercial Flush Valve UPC Code: 739268462687.
