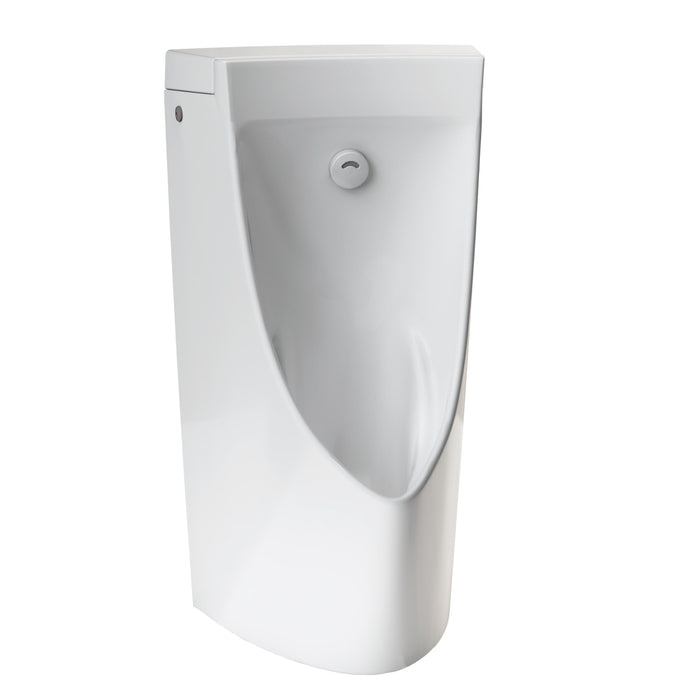

TOTO UE906UVi4G#01 Commercial Urinal Features and Benefits
- Wall-mounted washout urinal with back inlet
- Engineered for optimal performance with the TOTO ECOPOWER flush valve
- Includes urinal, Automatic Flush Valve, and back inlet
- WaterSense certified; Meets CEC requirements
- IoT-enabled product ready to remotely monitor usage rates and performance
- ADA compliant
- CALGreen Certified.
TOTO UE906UVi4G#01 Commercial Urinal Specifications
- Color: Cotton White
- Warranty: Manufacturer One Year Limited
- Material: Vitreous China
- Item Length (in.): 15.3125
- Item Width (in.): 14.9375
- Item Height (in.): 29.25
- Item Weight (lb.): 78
- ADA Compliant: Yes
- WaterSense Certified: Yes
- CALGreen Compliant: Yes
- CEC Compliant: Yes
- Valve Included: Yes
- Mounting Type: Wall-Mount
- Water Consumption (GPF): 0.125
TOTO UE906UVi4G#01 Commercial Urinal Downloads and Documentation
TOTO UE906UVi4G#01 Wall-Mount ADA Compliant 0.125 GPF Urinal with Integrated Flush Valve, Cotton White
Frequently Asked Questions
• What does back-spud vs top-spud mean?
Spud refers to where the valve connects to the urinal - back-spud valves enter from the wall behind the urinal, top-spud valves enter from above. Check your existing urinal's water inlet position before ordering. The two aren't interchangeable.
• Does ECOPOWER need batteries or external power?
No batteries and no wiring. ECOPOWER generates its own electricity from the force of water flowing through the valve each time it activates, then stores it for the next use. That's why commercial facilities prefer ECOPOWER - no battery replacement schedule and no electrician needed for installation.
• What's the difference between IoT-Ready and IoT-Enabled?
IoT-Ready means the product is built to work with TOTO's smart-monitoring system but needs a separately-sold communication card to activate. IoT-Enabled comes with the card already installed and ready to connect. Both perform the same core functions - the IoT module adds remote usage tracking, maintenance alerts, and diagnostic data for facility managers.
• What hardware is included with the valve?
The valve ships with the cover plate and standard mounting hardware. Vacuum breakers and adapter kits for non-standard configurations are sold separately.
• Will this work with my existing urinal?
This 0.125 GPF valve is designed for commercial urinals rated for the same flow. Will work with any flushometer-style urinal that has a back-spud water inlet and a matching 0.125 GPF flow rating. Match the GPF to your urinal's rating - installing the wrong rate will cause clogs or wasted water.
The TOTO Wall-Mount 0.125 GPF Urinal with Integrated Automatic Flush Valve demonstrates TOTO's leadership in water conservation. IoT-Enabled: Product comes equipped with IoT communication card to remotely monitor usage rates, water consumption and fixture performance.
Engineered for optimal performance with the TOTO ECOPOWER Auto Flush valve, the urinal offers superior performance while saving water. The urinal is WaterSense certified, meets CEC and CALGreen requirements, and can be installed in ADA compliant spaces.
Includes urinal with integrated flush valve, and back inlet.
*This product is in TOTO's cotton white color - which is your regular clean white that will match other white bathroom fixtures.
TOTO UE906UVi4G#01 Commercial Urinal UPC Code: 739268995178.
