TOTO T26T51Ei#CP Commercial Faucet Features and Benefits
- NO EXTERNAL WIRING OR BATTERY REPLACEMENT - Powered by the force of running water. The ECOPOWER system generates and stores an electrical current to power the faucet. It is highly efficient and replenishes power stores with no minimum daily usage.
- WATER FLOWS EASILY WITHOUT SEARCHING FOR THE SENSOR - The sensor is strategically positioned underneath the spout head to accurately sense the hands for touchless use. The sensor is concealed within the spout body for a beautiful aesthetic.
- STOPS AUTOMATICALLY TO PREVENT WATER WASTE - The on-demand system allows water flow only when needed. When hands are present, the water will flow. When hands are removed, the water will stop.
- EXCELLENCE IN WATER SAVINGS - The 0.5 GPM 10 second on-demand faucet uses only 0.08 gallons per cycle and is CEC and CALGreen compliant. The ECO CAP aerating technology balances the amount of air bubbles in the water for a comfortable experience while saving water.
- IoT-READY - Product requires communication card sold separately to enable IoT functionality.
- EASY INSTALLATION AND LOW-COST MAINTENANCE - Included items: spout, operating controller and mounting hardware included
- Purchased separately: water supply line for G 1/2 inch connection.
TOTO T26T51Ei#CP Commercial Faucet Specifications
- Color: Polished Chrome
- Product Collection: Helix
- Warranty: Manufacturer Three Year Limited
- Made in Japan
- Material: Brass
- Component #1 Model: TLE26008U1#CP
- Component #2 Model: TLE03502U1i
- Item Length (in.): 5.625
- Item Width (in.): 1
- Item Height (in.): 12.5
- Item Weight (lb.): 4.971373
- Reach (in.): 5
- Spout Height (in.): 8.625
- ADA Compliant: Yes
- CALGreen Compliant: Yes
- CEC Compliant: Yes
- Connection Size and Type: G 1/2
- Installation: Single-Hole
- Battery Included: Yes
- Battery Type: Lithium Ion
- Valve Included: Yes
- Mounting Type: Deck-Mount
- Faucet Holes Required: 1
- Maximum Deck Thickness (in.): 2
- Drain Included: No
- Maximum Flow Rate (gpm): 0.5
TOTO T26T51Ei#CP Commercial Faucet Downloads and Documentation

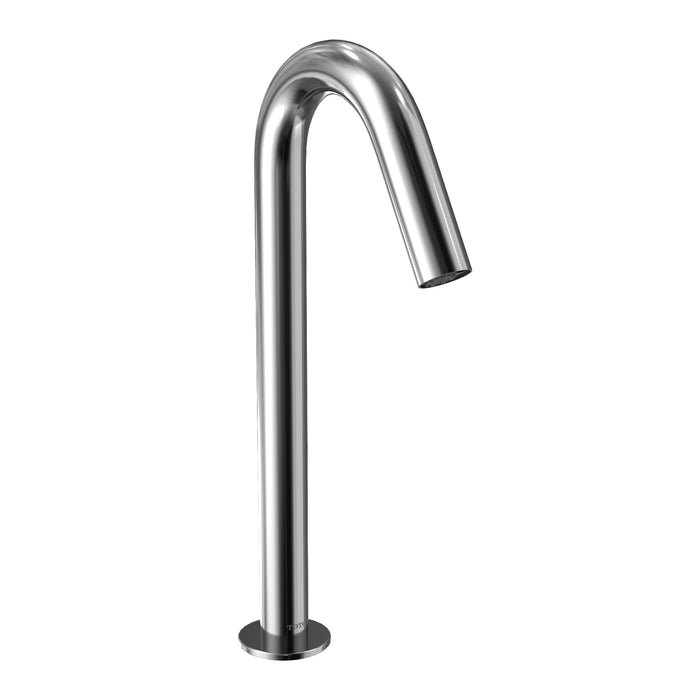

TOTO T26T51Ei#CP Helix Vessel 0.5 GPM Touchless Bathroom Faucet, IoT-Ready, Polished Chrome
Frequently Asked Questions
• What's the difference between IoT-Ready and IoT-Enabled?
IoT-Ready means the product is built to work with TOTO's smart-monitoring system but needs a separately-sold communication card to activate. IoT-Enabled comes with the card already installed and ready to connect. Both perform the same core functions - the IoT module adds remote usage tracking, maintenance alerts, and diagnostic data for facility managers.
• Does ECOPOWER need batteries or external power?
No batteries and no wiring. ECOPOWER generates its own electricity from the force of water flowing through the faucet each time it activates, then stores it for the next use. That's why commercial facilities prefer ECOPOWER - no battery replacement schedule and no electrician needed for installation.
• How does the touchless sensor work?
The sensor sits underneath the spout and detects hands when they enter the activation zone - no waving needed. Water flows automatically and shuts off when hands move away. The 0.5 GPM flow rate means the Helix delivers a steady stream without splashing, ideal for high-traffic commercial restrooms where speed and hygiene both matter.
• What does 0.5 GPM mean for water use?
0.5 GPM (gallons per minute) is meaningfully lower than the federal max of 2.2 GPM and well below typical residential faucets. In a commercial restroom with hundreds of daily activations, that adds up to thousands of gallons saved per year. The aerator delivers a comfortable, well-distributed stream so the lower flow feels normal to users.
• Will this work with my vessel sink?
Yes. The taller spout is designed specifically for above-counter vessel sinks where the basin sits on top of the countertop rather than dropped in. Make sure the spout reach matches your vessel's diameter so water lands centered in the basin, not over the edge.
The TOTO Helix Vessel ECOPOWER 0.5 GPM Touchless Bathroom Faucet, 10 Second On-Demand Flow is ideal for high-traffic spaces, providing an elegant water conservation solution. IoT-Ready: Product requires communication card sold separately to enable IoT functionality.
Powered by the force of running water, the ECOPOWER hydro-turbine creates an electrical current that is stored in rechargeable cells to power operation of the faucet. No external power source, wiring, or battery replacement is necessary.
The ECOPOWER system is highly efficient, replenishing power stores with no minimum daily usage. The sensor is strategically positioned underneath the spout head to accurately sense the hands for touchless use. The 0.5 GPM 10 second on-demand faucet uses only 0.08 gallons per cycle and is CEC and CALGreen compliant.
The on-demand system means that water flows only when needed and cannot be accidentally left running. When hands are present, the water will flow, and when hands are removed, the water will stop. The ECO CAP aerating technology balances the amount of air bubbles in the water for a comfortable experience while saving water.
Included items: spout, operating controller and mounting hardware included.
Purchased separately: water supply line for G 1/2 inch connection.
TOTO T26T51Ei#CP Commercial Faucet UPC Code: 739268995543.
