TOTO CST494CEMF#51 Connelly Dual-Max Toilet Specifications

  • Component #1: CT494CEF#51
  • Component #2: ST494MA#51

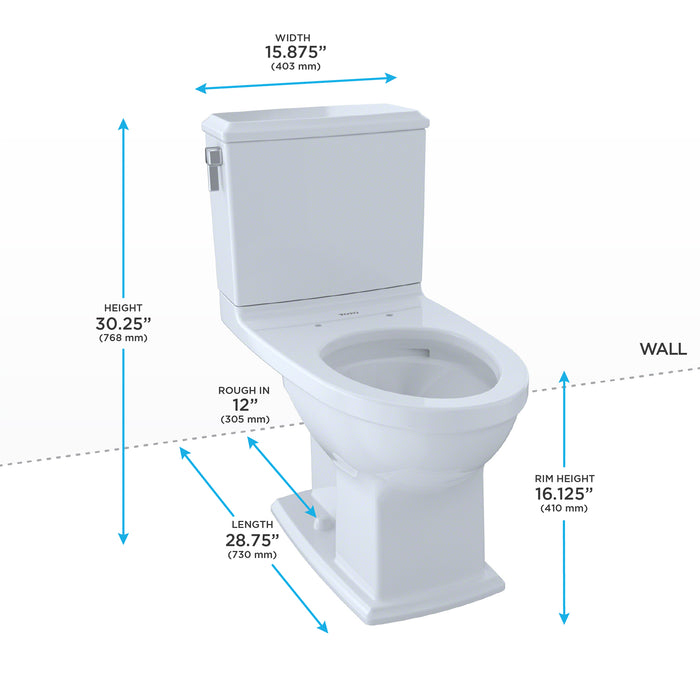

  • Length (in.): 28.75
  • Width (in.): 15.875
  • Height (in.): 30.25
  • Weight (lb): 101
  • Rim Height (in.): 16.125
  • ADA Compliant: Yes
  • WaterSense Certified: Yes
  • CalGreen: Yes
  • CEC: Yes
  • Mounting/Installation: Floor Mount/Floor Outlet
  • Water Consumption (GPF): 0.9/1.28
  • Flush Lever Location: Left
  • Rough-in Size (in.): 12
  • Flush Valve (in.): 2
  • Trapway Diameter (in.): 2.125
  • Shape: Elongated
  • Material: Vitreous China
  • Warranty: Manufacturer One Year Limited
  • Category: Two-Piece Toilets
  • Finish: Ebony
  • UPC Code: 739268259331

TOTO CST494CEMF#51 Connelly Dual-Max Toilet Documentation


TOTO CST494CEMF#51 Connelly Two-Piece Dual-Max, Dual Flush Toilet, Ebony (Black)

  • $854.10 Save $459

Free Shipping
on All Orders!

Free Shipping on All Orders!
No Sales Tax Outside of PA!

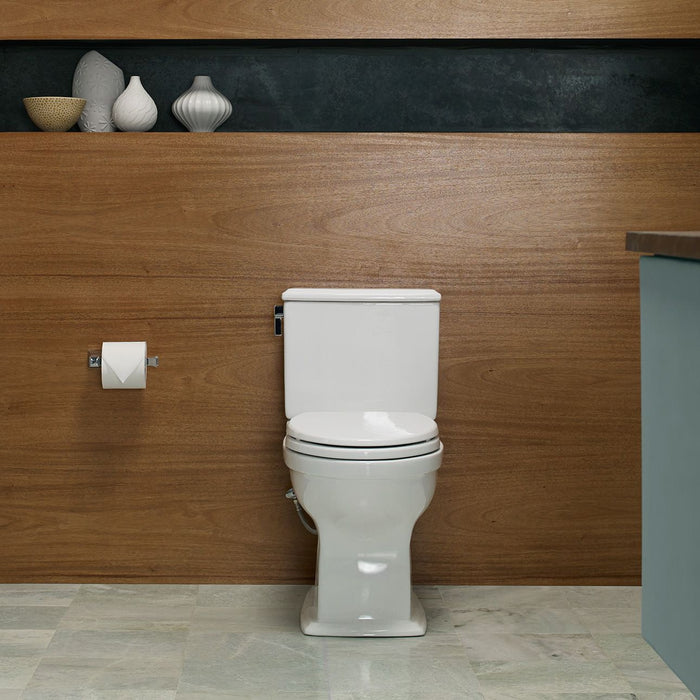

The TOTO Connelly Two-Piece Dual-Max, Dual Flush 1.28 and 0.9 GPF Universal Height Toilet combines contemporary design with innovations in style and water conservation. The Connelly bowl and tank set includes a tank to bowl gasket, tank to bowl hardware, and toilet bolt caps. The Connelly has a concealed trapway, which enhances the elegant look of the toilet and adds an additional level of sophistication.

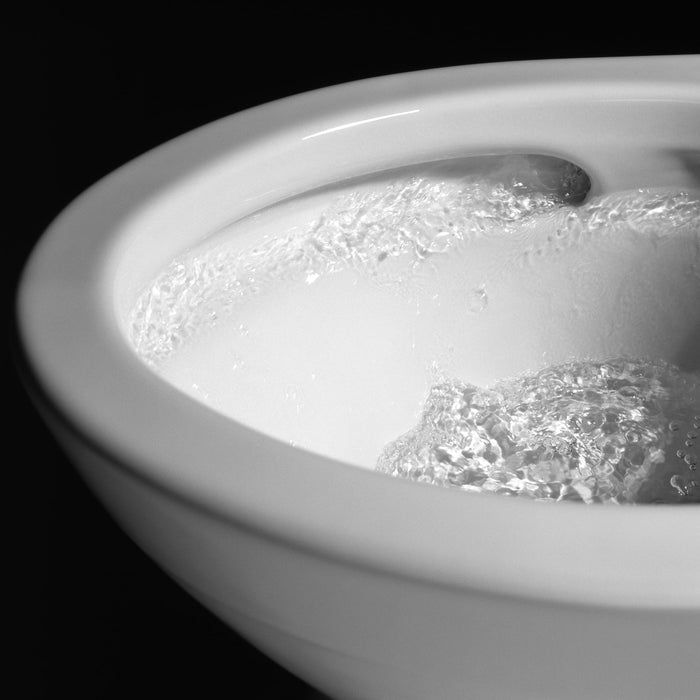

The Connelly features TOTO's 3D TORNADO FLUSH, a hole-free rim design featuring three powerful nozzles that generate a centrifugal, cyclonic rinsing action with the option of 1.28 or 0.9 gallons of water. The left-hand chrome trip lever allows the user to decide the right flush for the appropriate job. Choose between a 0.9 GPF rinse or 1.28 GPF for tougher jobs.

The Connelly is designed to feature TOTO's Universal Height which allows for a more comfortable seat position across a wide range of users. The Connelly is ADA compliant and meets the standards for EPA WaterSense, and California's CEC and CALGreen requirements.

Additional items needed for installation and use must be Purchased separately: wax ring, toilet mounting bolts, water supply lines, and toilet seat.

TOTO CST494CEMF#51 Connelly Dual-Max Toilet Features

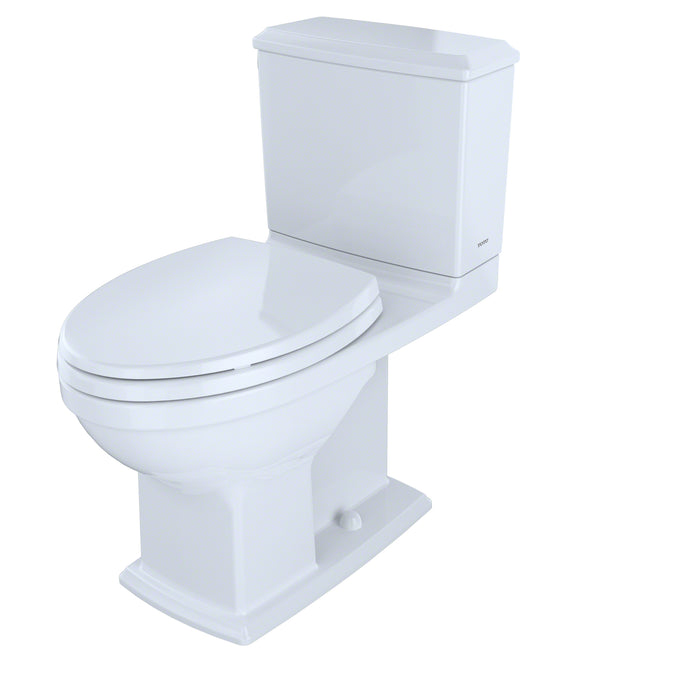

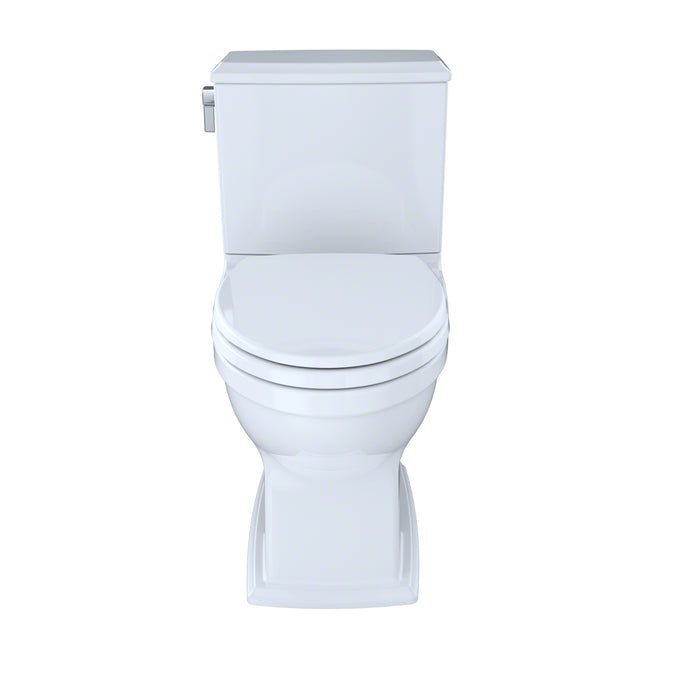

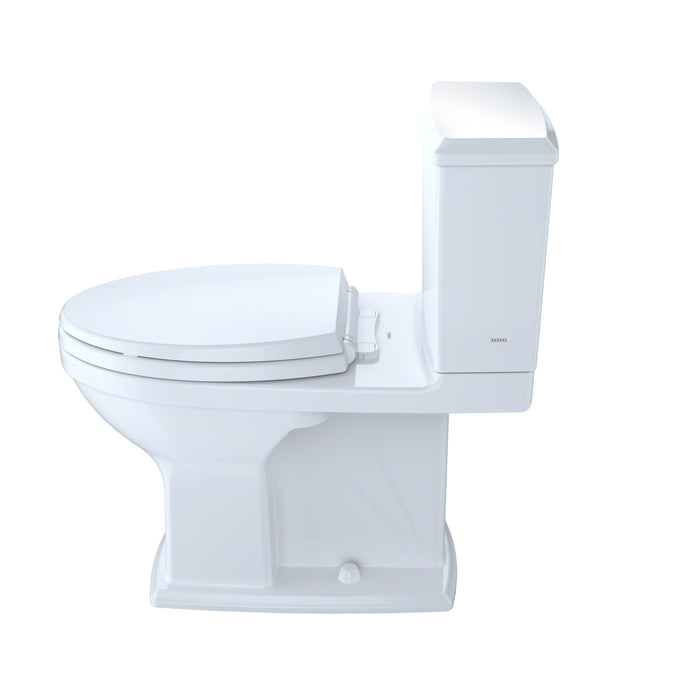

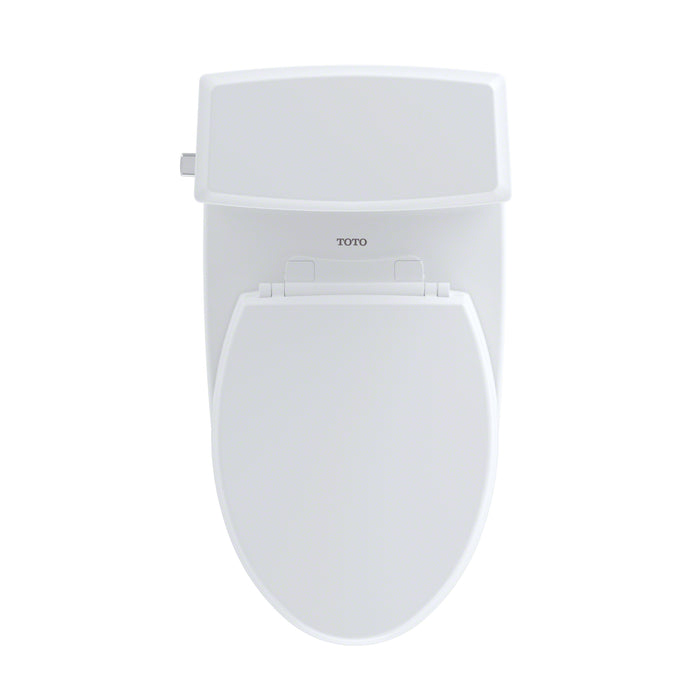

  • Contemporary two-piece elongated bowl and tank set
  • Concealed trapway for a sophisticated look
  • 1.28 and 0.9 GPF 3D Tornado Flush technology for a powerful centrifugal rinse
  • Universal Height for more comfort across a broader range of individuals

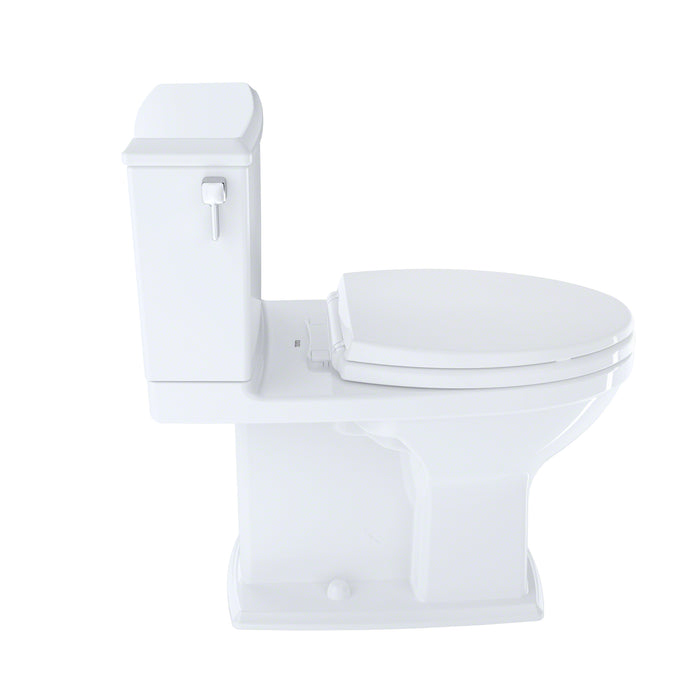

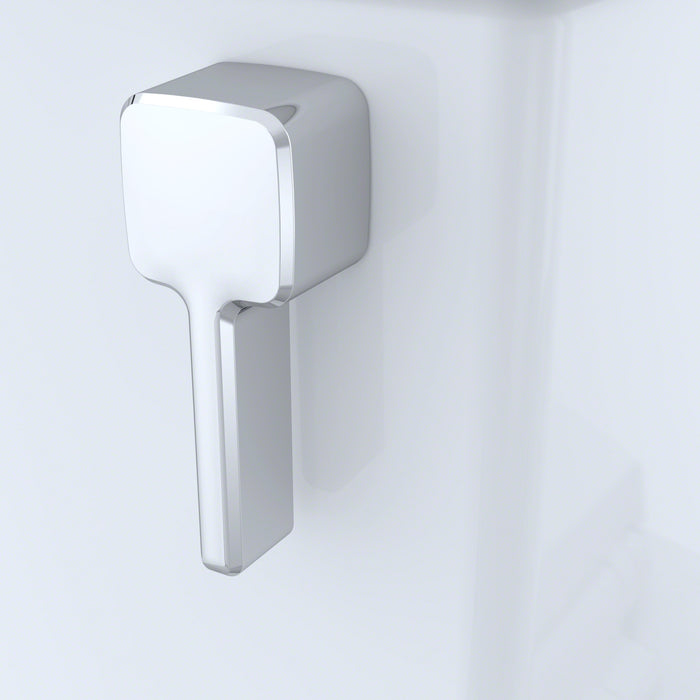

  • Left-hand chrome trip lever
  • Glazed trapway
  • ADA, WaterSense, CALGreen, and CEC compliant
  • Included parts: tank to bowl gasket, tank to bowl hardware, and toilet bolt caps
  • Purchased separately: wax ring, toilet mounting bolts, water supply lines, and toilet seat
