The Broan 120 Pint Dehumidifier delivers superior indoor air quality with it's MERV 13 filtration and dedicated humidity control. With a 120 pints per day removal capacity this unit is well suited for medium to larger homes. The system design provides excellent energy efficiency to provide humidity control for large spaces.

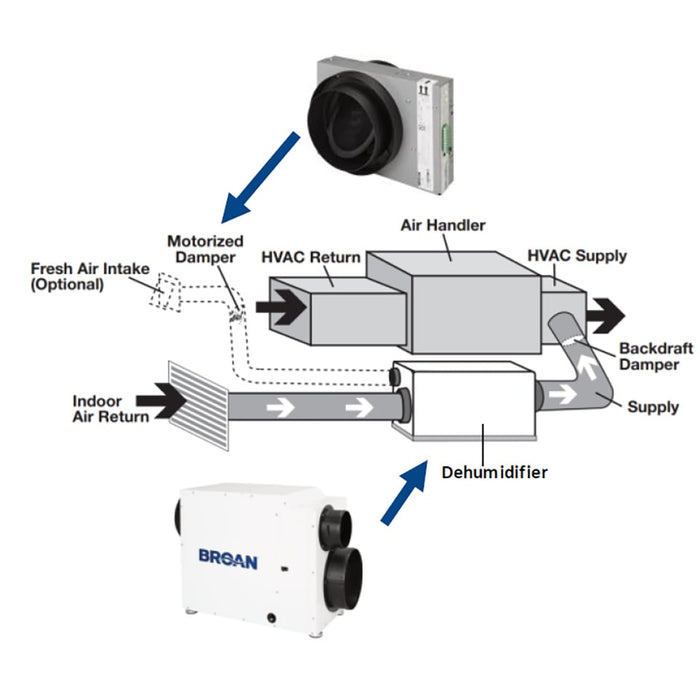

Bring fresh, filtered air into the home while removing excess moisture from the indoor air by combining the Broan FIN-6MD motorized supply damper with any of our ducted whole-home dehumidifiers. This unique solution reduces the overall energy usage to provide the fresh ventilation air by utilizing the dehumidifier fan in place of the air handler central fan while still allowing the dehumidifier compressor to run only when dehumidification is needed in the home.
Broan B120DHV Dehumidifier Features
- Removes up to 120 pints of water per day
- Provides up to 3,000 sq. ft. of coverage to provide humidity control to larger homes

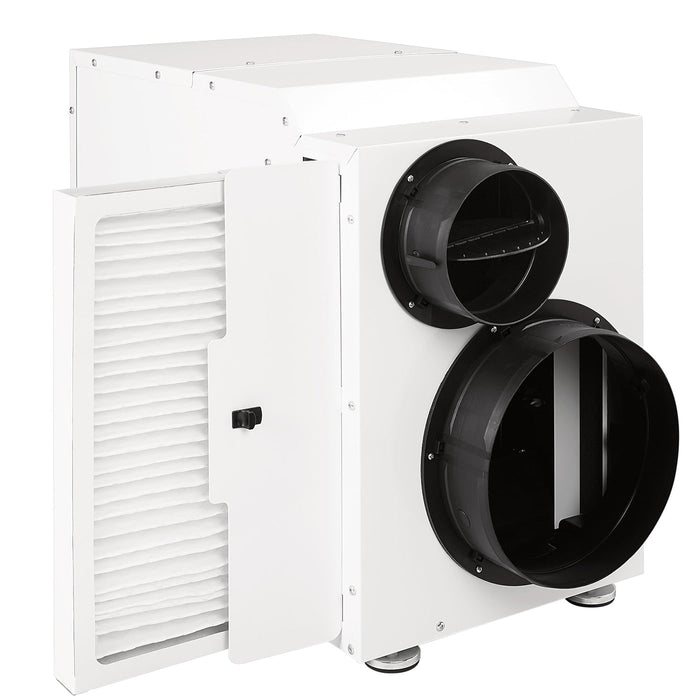

- MERV 13 filtration installed standard to provide superior air filtration
- Discharge duct can be installed in either a horizontal or vertical orientation providing additional install flexibility
- Humidity control be done easily using either our DEH 3000 digital controller that is mounted in the interior space or with the DEH 3000 R digital controller with its remote sensor that is mounted in the interior space where the humidity level needs to be managed
- Included fresh air inlet provides the option for fresh outdoor air to be ducted to the unit
Broan B120DHV Dehumidifier Documentation

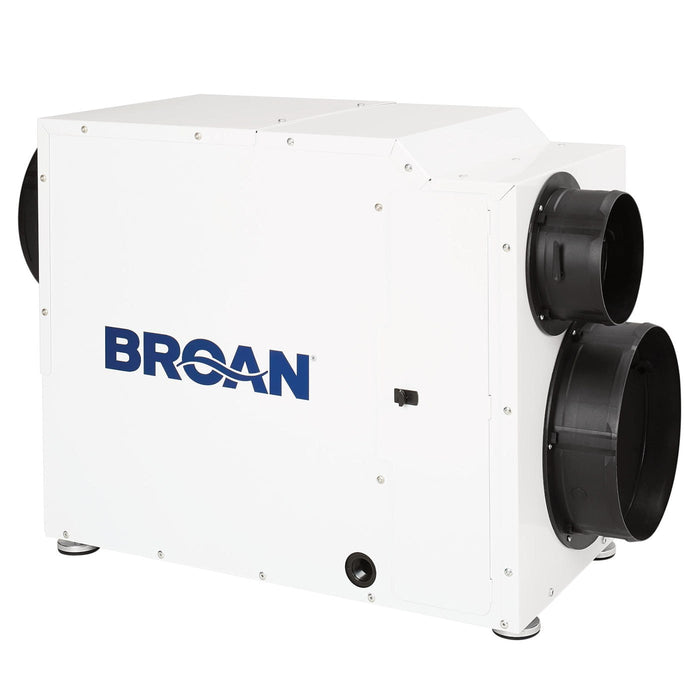

Broan B120DHV 120 Pint 3,000 sq. ft Dehumidifier with MERV 13 Filtration
Free Shipping. No sales tax outside of PA!
FAQ
• What if I receive my order damaged?
While we take great care in the packaging and handling of all orders, certain circumstances during transit may be beyond our control. We ask that customers inspect all shipments within 48 hours of delivery, and in the rare event that your order arrives damaged, please send us an email with a photo depicting the damages (so we can file a claim with the carrier), and let us know whether you prefer a free replacement or a full refund.
• What if I need to return the item I purchased?
We’re happy to accommodate returns within 30 days of receiving your order. Please be aware that return shipping costs are the responsibility of the customer unless the item received is incorrect, defective, or damaged during transit. To initiate a return, simply send us an email detailing the item(s) you wish to return, and we’ll guide you through the steps.
• Why do you collect phone numbers?
Some shipping carriers, particularly those handling freight deliveries, require a phone number to coordinate your delivery. We respect your privacy and want to assure you that your phone number, or any other information you provide, will never be shared with third parties — except when expressly required by the carrier to facilitate delivery arrangements.
Broan B120DHV Dehumidifier Specs
| Water Removal Capacity @ 80F & 60% RH (pints/day) | 121 |
|---|---|
| Efficiency (pints/kWh) | 6.1 |
| Energy Factor (liters/kWh) | 2.9 |
| Power (Watts) @ 80°F & 60% RH | 840 |
| Airflow (CFM) @ 0.0 in. WG | 350 |
| Airflow (CFM) @ 0.2 in. WG | 285 |
| Airflow (CFM) @ 0.4 in. WG | 210 |
| Filtration | MERV 13 |
| Optional Fresh Air Duct | 6" Round |
| Inlet Duct Size | 10" Round |
| Outlet Duct Size | 10" Round |
| Operating Current (Amps) | 7.3 |
| Power Cord | 9' Type B Plug |
| Integrated Circuit Breaker | Yes |
| Refrigerant Type | R410A |
| Refrigerant Qty (oz.) | 26 |
| Drain Connection | 3/4" Threaded Female NPT |
| Coverage (sq. ft) | 3000 |
| Product Weight (Lbs) | 91 |
| Manufacturer Warranty | 6 Year |

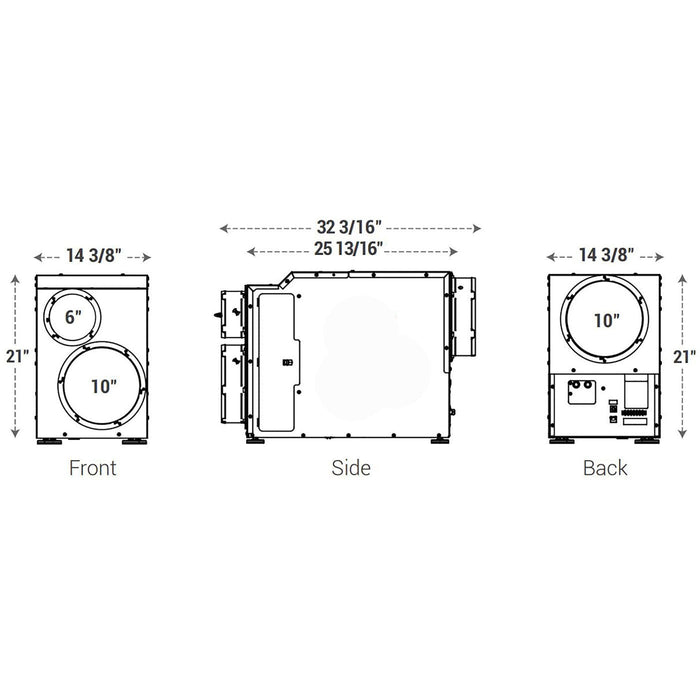

| Product Dimensions | 14.375"W x 21"H x 32.1875"D |
| Controls | DEH 3000 / DEH 3000R |
