Broan AE50110DC Flex DC Series Exhaust Bath Fan, ENERGY STAR offers easy, room side installation, with "No Attic Access Required". Ceiling mounted ventilation fan features foldable mounting ears and EZ Duct connector for easy installation. New duct damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts. This energy efficient fan operates at a selectable CFM range of 50-80-110 at a quiet operation of <0.3-0.4-0.9 sones.

Broan AE50110DC Bathroom Exhaust Fan Features

  • FlexFlow technology, select between 50, 80 or 110 CFM
  • Quiet operation at <0.3-0.4-0.9 sones
  • Powerful ventilation reduces humidity to quickly eliminate fogged mirrors and manage moisture, so your vision will always be clear and your surroundings will always be comfortable
  • Retrofit installations can be done entirely from the room-side – no attic access required. This means a faster, easier installation, so you can move on to something else
  • Flex DC fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts
  • Plug in, permanently lubricated, brushless DC motor – engineered for continuous operation
  • Can be installed in a wall if mounted 8-ft. or more above the floor
  • UL Listed for use over tubs and showers with a GFCI circuit; so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
  • ENERGY STAR certified product
  • Compatible with Overture Connected IAQ System

Broan AE50110DC Bathroom Exhaust Fan Downloads

  • Specification Sheet
  • Installation Guide
  • Catalog Sheet
  • Wall Controls Selection Guide

  • Broan AE50110DC Bathroom Exhaust Fan, ENERGY STAR, 50-110 CFM

    • $161.00

    Free Shipping
    on All Orders!

    Ships within 1 - 2 business days
    Free Shipping on All Orders!
    No Sales Tax Outside of PA!


    Broan AE50110DC Bathroom Exhaust Fan Specs

    CFM 50-80-110
    Color Finish White
    Duct Size 4
    ENERGY STAR certified Yes
    Grille Length 11.5
    Grille Width 12

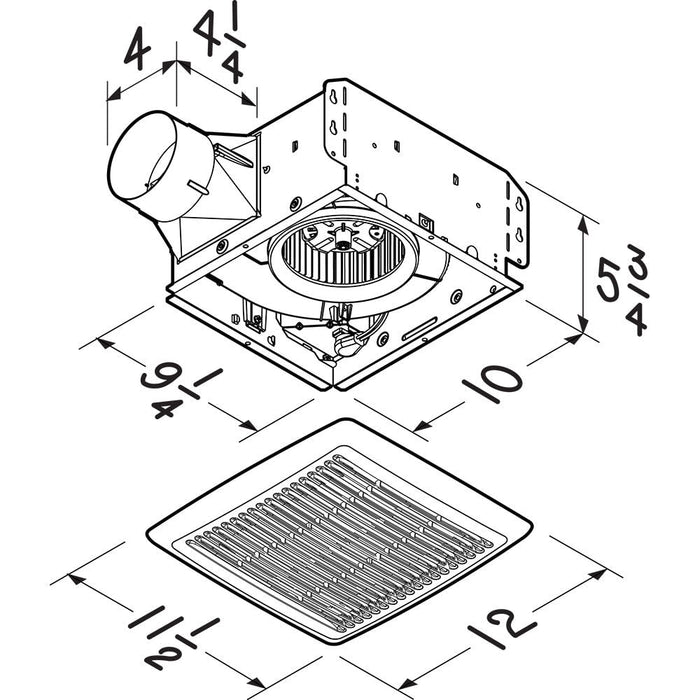

    Housing Dimensions 9-1/4" x 10" x 5-3/4"
    Sound Level (Sones) 0
    UL Listed Yes
    Grille Finish White
    Humidity Sensing No
    Motion Sensing No
    Motor Engineered For Continuous Operation Yes
    Night Light No
    Radiation Damper Available Yes
    Room Side Installation Yes
    UL Listed for use over bathtubs or showers when connected to a GFCI circuit Yes
    Heater Wattage 0
    Recommended Room Size (Sq Ft) 105
    Rated Amps 0.3
    Voltage 120
    Can Be Used To Comply With Title 24 No
    Minimum Construction Space Required 2" x 6"
    Manufacturer Warranty 3 Years
    High Efficiency Luminaire No

    Broan NuTone
