Broan AE50110DCS Flex DC Series Humidity Sensing Exhaust Bath Fan, ENERGY STAR offers easy, room side installation, with "No Attic Access Required". Ceiling mounted ventilation fan features foldable mounting ears and EZ Duct connector for easy installation. New duct damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts.
The humidity sensing feature will automatically turn the fan on when a preset level has been reached, thus allowing for proper ventilation throughout the room. This energy efficient fan operates at a selectable CFM range of 50-80-110 at a quiet operation of <0.3-0.4-0.9 sones.
- FlexFlow™ technology, select between 50, 80 or 110 CFM
- Quiet operation at <0.3-0.4-0.9 sones
- Sensaire™ Humidity control automatically turns fans ON when a rapid to moderate (user adjustable) increase of humidity is sensed or when humidity rises above the user-adjustable set-point (50% to 80% RH)
- Powerful ventilation reduces humidity to quickly eliminate fogged mirrors and manage moisture, so your vision will always be clear and your surroundings will always be comfortable

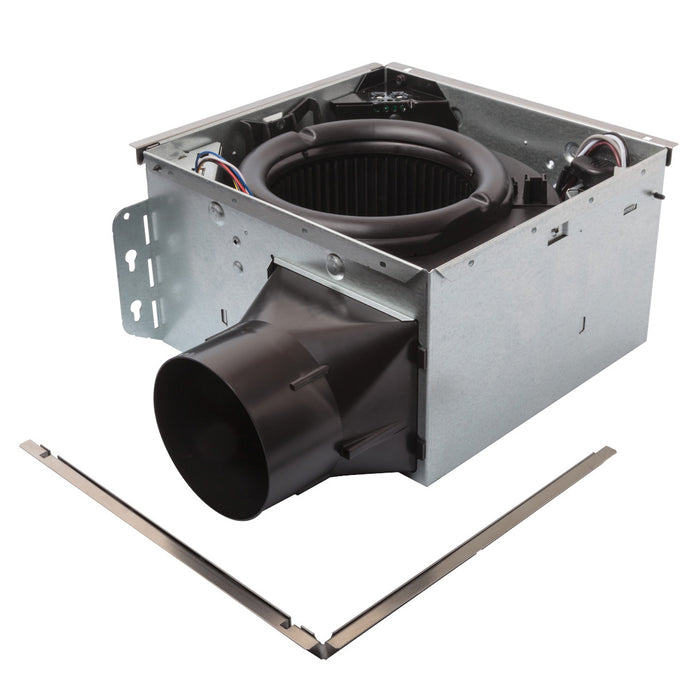

- Retrofit installations can be done entirely from the room-side – no attic access required. This means a faster, easier installation
- Flex DC fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts
- Plug in, permanently lubricated, brushless DC motor – engineered for continuous operation
- UL Listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only)
- ENERGY STAR® certified product
Broan NuTone AE50110DCS Exhaust Fan Documentation
Broan NuTone AE50110DCS Humidity Sensing Bathroom Exhaust Fan ENERGY STAR, 50-110 CFM
Free Shipping. No sales tax outside of PA!
FAQ
• What if I receive my order damaged?
While we take great care in the packaging and handling of all orders, certain circumstances during transit may be beyond our control. We ask that customers inspect all shipments within 48 hours of delivery, and in the rare event that your order arrives damaged, please send us an email with a photo depicting the damages (so we can file a claim with the carrier), and let us know whether you prefer a free replacement or a full refund.
• What if I need to return the item I purchased?
We’re happy to accommodate returns within 30 days of receiving your order. Please be aware that return shipping costs are the responsibility of the customer unless the item received is incorrect, defective, or damaged during transit. To initiate a return, simply send us an email detailing the item(s) you wish to return, and we’ll guide you through the steps.
• Why do you collect phone numbers?
Some shipping carriers, particularly those handling freight deliveries, require a phone number to coordinate your delivery. We respect your privacy and want to assure you that your phone number, or any other information you provide, will never be shared with third parties — except when expressly required by the carrier to facilitate delivery arrangements.
| CFM | 50-80-110 |
|---|---|
| Color Finish | White |
| Duct Size | 4 |
| ENERGY STAR certified | Yes |
| Grille Length | 11.5 |
| Grille Width | 12.25 |

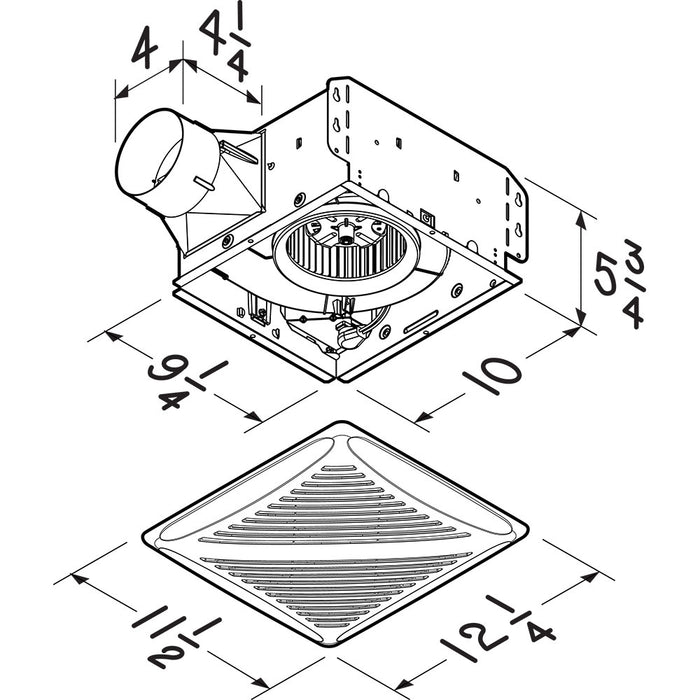

| Housing Dimensions | 9-1/4" x 10" x 5-3/4" |
| Sound Level (Sones) | 0 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | Yes |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | Yes |
| Room Side Installation | Yes |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | Yes |
| Heater Wattage | 0 |
| Recommended Room Size (Sq Ft) | 105 |
| Rated Amps | 0.3 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Minimum Construction Space Required | 2" x 6" |
| Manufacturer Warranty | 3 Years |
| High Efficiency Luminaire | No |
