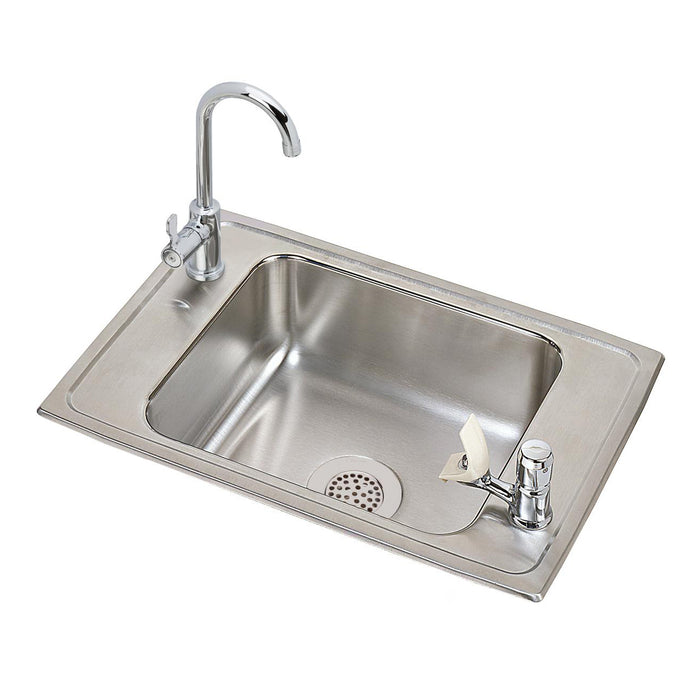

Elkay CDKR2517VRC Stainless Steel 2-Hole Single-Bowl Drop-In Sink Kit

newmisctag

Elkay CDKR2517VRC Single-Bowl Drop-In Sink Kit Specifications

  • Product Type: Single-Bowl Drop-In Sink Kit
  • Material: Stainless Steel
  • Finish: Brushed Satin
  • Length (in.): 25
  • Width (in.): 17
  • Height (in.): 6-7/8
  • Weight (lb.): 15
  • Mounting Type: Drop-in
  • Country of Origin: United States
  • CEC Listed: Yes
  • ASME Standards: ASME A112.19.3; ASME A112.18.1; ASME A112.18.2
  • CSA Standards: CSA B45.4; CSA B125.1; CSA B125.2
  • NSF/ANSI 61: Yes
  • NSF/ANSI 372: Yes
  • Plumbing Certification: cUPC
  • NPCC: Yes
  • Lead Law Compliant: Yes
  • Lead Law Third-Party Certification: Yes
  • NSF/ANSI/CAN 61 / AB100 Compliance: Y
  • NSF/ANSI/CAN 61 / AB100 Third-Party Certification: Y
  • NSF/ANSI/CAN 61 / AB100 Marking: Y
  • ADA Compliant: No
  • Sink Base Model: CDKR2517VRC
  • Minimum Cabinet Size (in.): 30
  • Number of Bowls: 1
  • Sink Depth (in.): 7
  • Faucet Hole Configuration: 2
  • Mounting Hardware: Part # 64090012 included for countertops up to 3/4" (19mm) thick
  • Mounting Hardware Quantity: 1

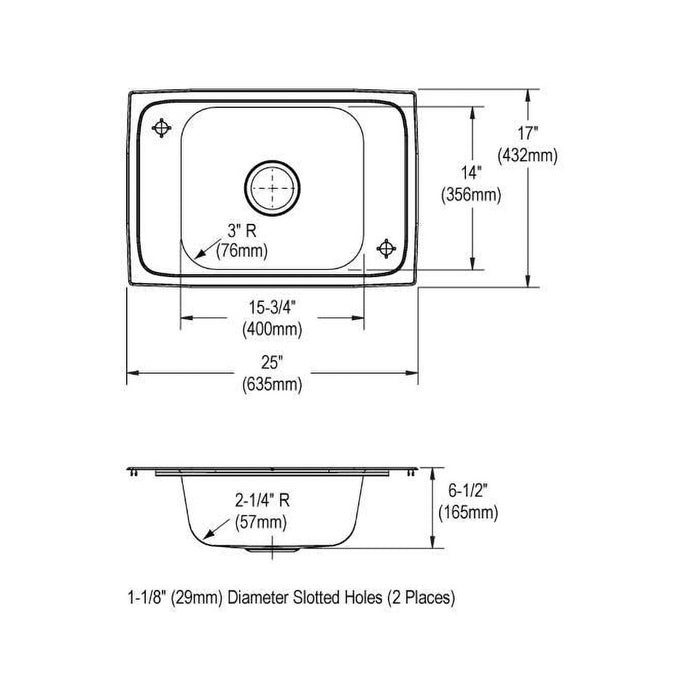

  • Countertop Cutout Dimensions: 24-3/8" x 16-3/8" (619mm x 416mm) with 1-1/2" (38mm) corner radius
  • Stainless Steel Gauge: 20
  • Sound Deadening: Bottom only pads
  • Bowl 1 Shape: Rectangular
  • Bowl 1 Length (in.): 16
  • Bowl 1 Width (in.): 14
  • Bowl 1 Depth (in.): 7
  • Bowl 1 Drain Opening (in.): 4
  • Bowl 1 Drain Placement: Center Center

Elkay CDKR2517VRC Single-Bowl Drop-In Sink Kit Documentation

Elkay CDKR2517VRC Drop-In Sink Installation Video

Elkay CDKR2517VRC Single-Bowl Drop-In Sink Kit UPC Code: 094902228884.

Elkay CDKR2517VRC 25" x 17" Stainless Steel 2-Hole Single-Bowl Drop-In Sink Kit in Brushed Satin

by Elkay
Save 50% Save 50%
$2,210.00
$2,210.00 - $2,210.00
$2,210.00
$1,095.99
$1,095.99 - $1,095.99
$1,095.99
Only 1 left!
 →
Free 1-3 Day Delivery | No tax outside of CA, IL, NJ, PA, and WA.
Autumn Kickoff Sale
Ends Friday Oct 16
Email or Message us about volume discounts

The Elkay CDKR2517VRC is a single-bowl drop-in sink kit in brushed satin. Drop-in installation places the finished rim above the countertop.

Elkay CDKR2517VRC Single-Bowl Drop-In Sink Kit Features

  • 20-gauge thickness and Type 304 stainless steel for everyday lasting durability, performance and finish.
  • Sound-deadening pads reduce noise and vibration during use.
  • Mounting clips slide into the U-channel before installation to simplify work beneath the sink.
  • Drain is conveniently placed in the center of the sink.
  • This sink has a drain that works with standard garbage disposals, if space allows.

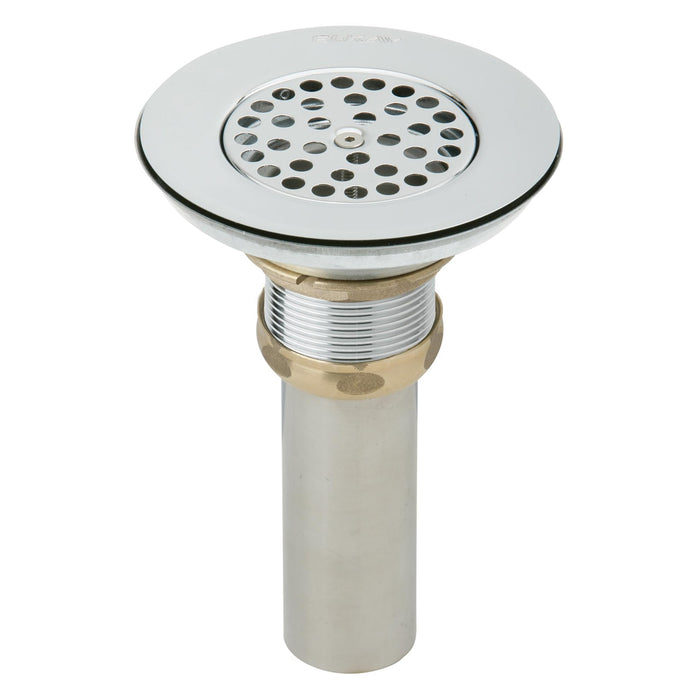

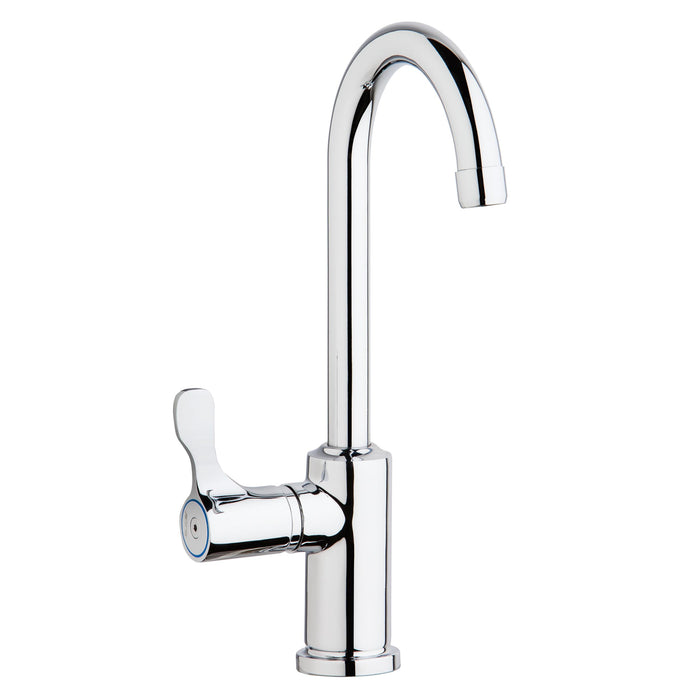

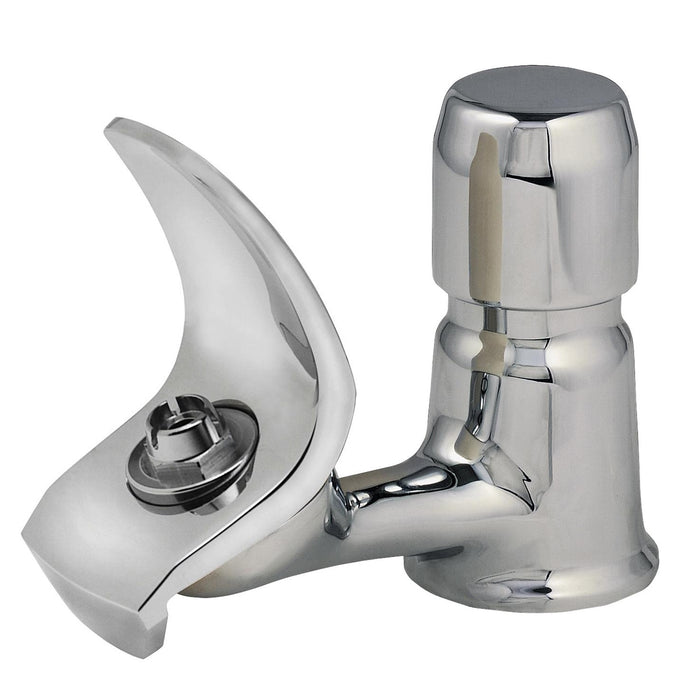

  • Includes LKDVR208513LC faucet, LKVR18 drain, LKVR1141A bubblers.
  • Included accessories: LKDVR208513LC;LKVR1141A;LKVR18.
  • Included with product: LKDVR208513LC faucet, LKVR18 drain, LKVR1141A bubblers.
