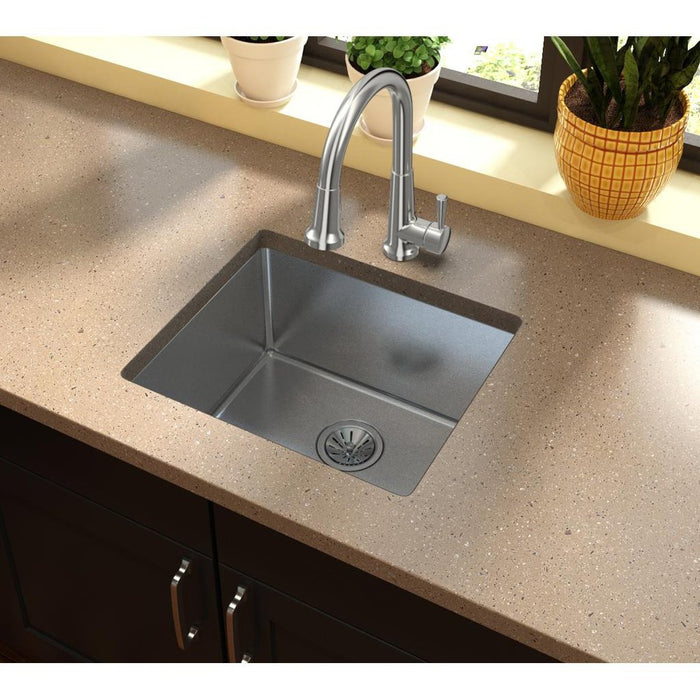

Elkay Crosstown is the ultimate mix of beauty, function and modern design. Tight corners provide more space inside the sink for stacking and washing dishes. The striking geometric aesthetic has universal appeal and makes an impact in any space.

Downloads & Documentation


Product Video

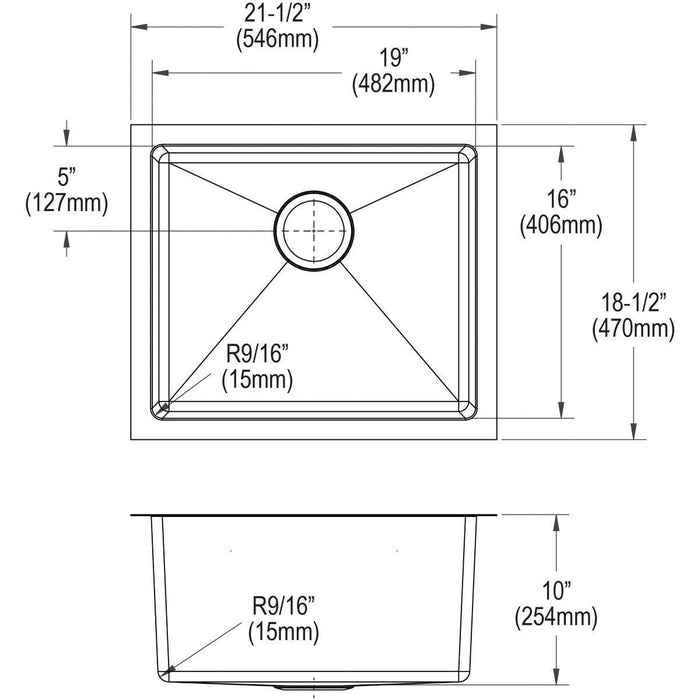

  • Download Dimensional Drawing for this product

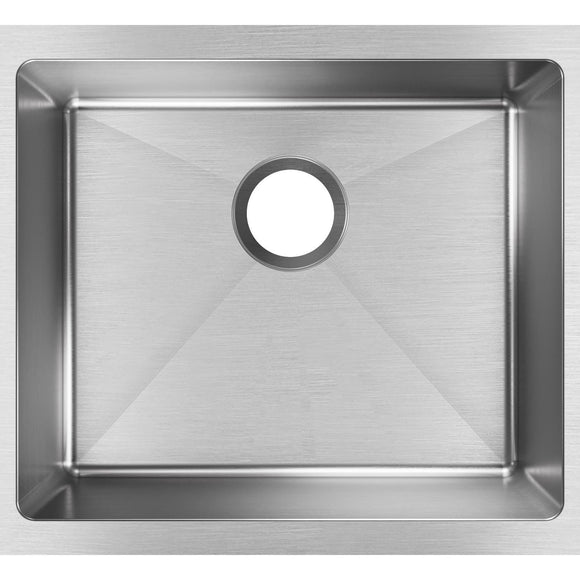

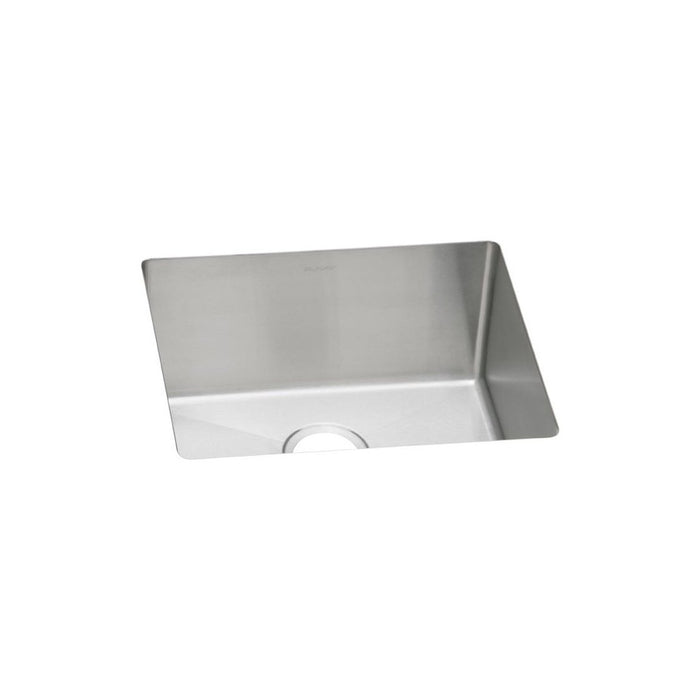

  • Elkay EFRU191610T Crosstown 16 Gauge Stainless Steel, 21-1/2" x 18-1/2" x 10" Undermount Kitchen Sink

    • $211.05 Save $179

    Free Shipping
    on All Orders!

    Ships within 2 - 3 business days
    Free Shipping on All Orders!


    Product Features

    • UNDERMOUNT INSTALLATION: Sink is installed beneath the countertop creating a seamless appearance between the sink and the countertop.
    • SINGLE BOWL: Bowl gives you uninterrupted space for washing and stacking dishes or other household tasks.
    • 16-GAUGE STAINLESS STEEL: Premium 16-gauge thickness and Type 304 stainless steel for immense durability, performance and lustrous beauty.
    • QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
    • TIGHT CORNERS: Fresh, geometric design offers straight sidewalls and a flat bottom for a modern look and more usable space; easy to clean.
    • OFFSET DRAIN: Drain placement provides more usable space on the bottom of the sink and in the cabinet below.
    • LARGE CAPACITY: Straight sidewalls give the sink a flat bottom and offer more usable space for stacking, soaking and washing dishes; easy to clean.
    • EXTRA DEEP BOWLS: High-capacity bowls offer more room inside for stacking dishes, filling stockpots, and handling large baking sheets and roasters.
    • CROSS BREAKS: Creased accent lines in the sink bottom deliver superior drainage and give the sink a professional appearance.
    • DRAIN OPENING: Sink drain opening measures 3-1/2".

    Technical Specifications

    • Length: 21.5"; Width: 18.5"; Height: 10"
    • Sink Depth: 10"
    • Style: Transitional
    • Material: Stainless Steel
    • Finish: Polished Satin
    • Intended Use: Residential/Multi-Family
    • ADA: No
    • Installation Type: Undermount
    • Template Included: Yes
    • Recommended Installation Hardware: LKUCLIP8
    • Number of Bowls: 1
    • Bowl 1 Length: 19"; Bowl 1 Width: 16"; Bowl 1 Depth: 10"
    • Drain Size (Bowl 1): 3.5"
    • Soundproofing: Sound Guard
    • Minimum Cabinet Size: 27"
    • Optional Grid: CTXBG1815
    • Optional Drain: LKDD, LK35
    • Optional Faucet: LKAV1031, LKAV2031, LKAV3041
    • Gauge: 16
    • Code Compliance: ASME A112.19.3/CSA B45.4IAPMO (through supplier)
