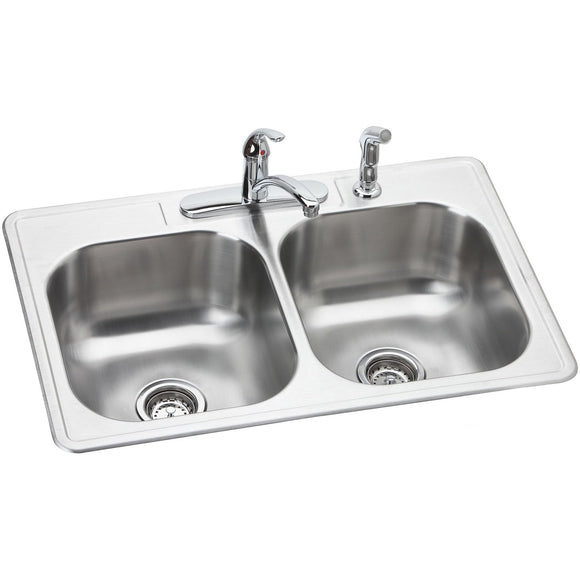

Elkay DSE233224DF Dayton Stainless Steel 33" x 22" x 8-1/16", 2-Bowl Top Mount Kitchen Sink and Faucet Kit

Dayton offers a complete line of sinks, drains and accessories. From top mount to undermount and dual mount styles, Dayton sinks come in an array of sizes and configurations and offer product lines and packages to meet every budget. Our products are backed with the quality assurance of domestic manufacturing and great customer care.

Product Features

• TOP MOUNT INSTALLATION: Sink is designed for drop-in installation to make the sink a focal point of your room.
• DOUBLE BOWLS OF EQUAL SIZE: Conveniently use bowls independently for washing, soaking, rinsing, drying and other household tasks.
• 20-GAUGE STAINLESS STEEL: Commercial grade 20-gauge thickness and 300 Series stainless steel for everyday use.
• QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
• U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install.
• CENTER DRAIN: Drain is conveniently placed in the center of the sink.
• DRAIN OPENING: Sink drain opening measures 3-1/2".
• KIT INCLUDES: DSE233224 sink, LK1001CR faucet, two drains; save the time of having to purchase each item separately.

Technical Specifications

• Length: 33"; Width: 22"; Height: 8.0625"
• Sink Depth: 8.0625"
• Material: Stainless Steel
• Finish: Elite Satin
• Intended Use: Residential/Multi-Family
• ADA: No
• Installation Type: Top Mount, Sink Kits
• Mounting Hardware Included: Part # 64090012 included for countertops up to 3/4" (19mm) thick
• Template Included: No
• Recommended Installation Hardware: LK364, LK463
• Number of Bowls: 2
• Bowl 1 Length: 14"; Bowl 1 Width: 15.75"; Bowl 1 Depth: 7.875"
• Drain Size (Bowl 1): 3.5"
• Bowl 2 Length: 14"; Bowl 2 Width: 15.75"; Bowl 2 Depth: 7.875"
• Drain Size (Bowl 2): 3.5"
• Soundproofing: Bottom only pads
• Faucet Holes Configuration: 4
• Minimum Cabinet Size: 36"
• Countertop Cutout: 32-3/8" x 21-3/8" (822mm x 543mm) with 1-1/2" (38mm) corner radius
• Included Parts: LK1001CR, D1125
• Optional Grid: GBG1415SS
• Optional Cutting Board: CB1516
• Optional Rinsing Basket: LKWERBSS
• Gauge: 20
• Base Material: 304
• Code Compliance: ASME A112.19.3/CSA B45.4, BUY AMERICAN ACT, ASME A112.18.2/CSA B125.2, ASME A112.18.1/CSA B125.1, CEC, NSF 61, NSF 372 (lead free)ASME A112.18.2/CSA B125.2
