Elkay D115161 Single-Bowl Drop-In Sink UPC Code: 094902008370
Elkay D115161 Dayton Stainless Steel 15" x 15" x 5-3/16", Single Bowl Top Mount Bar Sink
Frequently Asked Questions
• What if my order arrives damaged?
While we take great care in the packaging and handling of orders, we ask that customers inspect all shipments within 48 hours of delivery, and in the rare event that your order arrives damaged, please send us an email with a photo showing the damages (so we can file a claim with the carrier), and let us know whether you prefer a free replacement or a refund.
• Why do you ask for phone numbers during checkout?
Some shipping carriers, especially those handling freight, require a phone number to coordinate your delivery. We respect your privacy and guarantee that any information you provide will never be shared with third parties, except for shipping purposes.

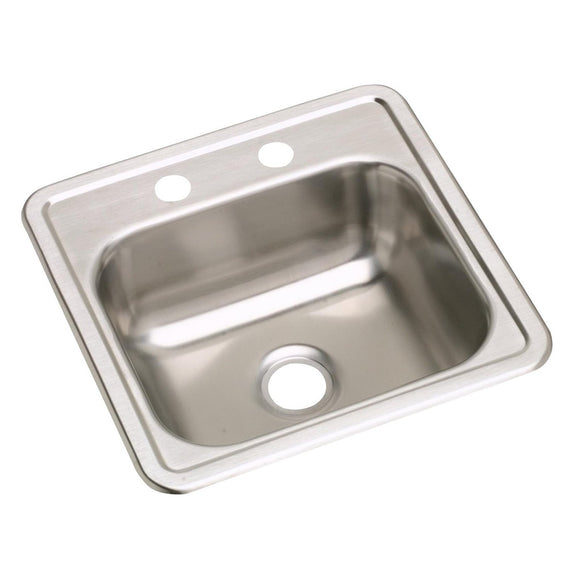

The Elkay D115161 is a single-bowl drop-in sink in Satin. ADA compliant when properly installed.
From top mount to undermount and dual mount styles, Dayton sinks come in an array of sizes and configurations and offer product lines and packages to meet every budget.
Elkay D115161 Single-Bowl Drop-In Sink Features
- Drop-in installation places the finished rim above the countertop.
- Sound-deadening pads reduce noise and vibration during use.
- Mounting clips slide into the U-channel before installation to simplify work beneath the sink.
- Made in the USA.
- 300 series stainless steel: Designed for everyday use.
Elkay D115161 Single-Bowl Drop-In Sink Specifications
- Product Type: Single-Bowl Drop-In Sink
- Material: Stainless Steel
- Finish: Satin
- Length (in.): 15
- Width (in.): 15
- Height (in.): 5.1875
- Weight (lb.): 2
- Mounting Type: Drop-in
- Country of Origin: United States
- ADA Compliant: Yes, when properly installed
- Sink Base Model: D11516
- Minimum Cabinet Size (in.): 18
- Number of Bowls: 1
- Sink Depth (in.): 5.1875
- Faucet Hole Configuration: 1
- Mounting Hardware: Part # 64090004 included for countertops up to 3/4" (19mm) thick
- Mounting Hardware Quantity: 1
- Countertop Cutout Dimensions: 14-3/8" x 14-3/8" (365mm x 365mm) with 1-1/2" (38mm) corner radius
- Capacity to Overflow (gal.): 10.4
- Stainless Steel Gauge: 23
- Sound Deadening: Bottom only pads
- Bowl 1 Shape: Rectangular
- Bowl 1 Length (in.): 12
- Bowl 1 Width (in.): 10
- Bowl 1 Depth (in.): 5
- Bowl 1 Drain Opening (in.): 3.5
- Bowl 1 Drain Placement: Center Center
- Intended Use: Residential/Multi-Family
- Template Included: No
- Recommended Installation Hardware: LK364, LK463
- Space Designation: Entertainment
- Optional Cutting Board: CB912
- Optional Drain: D1125
- Base Material: 301CU
- Code Compliance: ADA & ICC A117.1, ASME A112.19.3/CSA B45.4, BUY AMERICAN ACT, IAPMO (cUPC_sinks)
