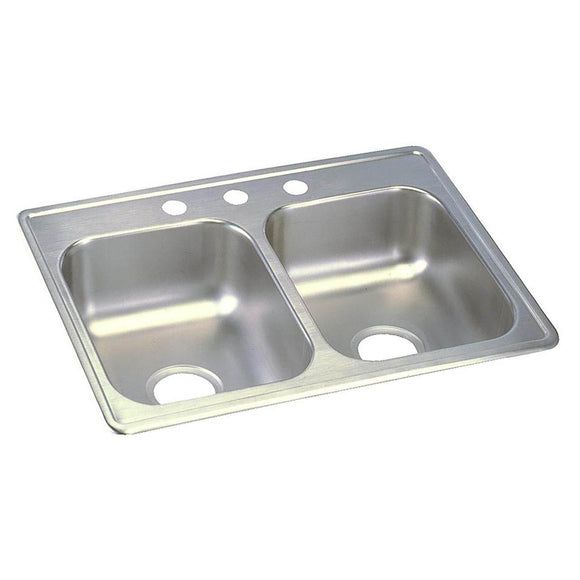

Elkay D225193 Dayton Stainless Steel 25" x 19" x 6-5/16", Double Bowl Top Mount Kitchen Sink
on All Orders!
Dayton offers a complete line of sinks, drains and accessories. From top mount to undermount and dual mount styles, Dayton sinks come in an array of sizes and configurations and offer product lines and packages to meet every budget. Our products are backed with the quality assurance of domestic manufacturing and great customer care.
- ADA COMPLIANT: Product is ADA compliant when properly installed.
- TOP MOUNT INSTALLATION: Sink is designed for drop-in installation to make the sink a focal point of your room.
- DOUBLE BOWLS OF EQUAL SIZE: Conveniently use bowls independently for washing, soaking, rinsing, drying and other household tasks.
- 300 SERIES STAINLESS STEEL: Designed for everyday use.
- QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
- U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install.
- LARGE CAPACITY: Straight sidewalls give the sink a flat bottom and offer more usable space for stacking, soaking and washing dishes; easy to clean.
- MADE IN THE USA: This Elkay product is proudly made in the USA.
- DRAIN OPENING: Sink drain opening measures 3-1/2".
- CABINET SIZE: Minimum cabinet size for this sink is 30".
- Length: 25"; Width: 19"; Height: 6.3125"
- Sink Depth: 6.3125"
- Material: Stainless Steel
- Finish: Satin
- Intended Use: Residential/Multi-Family
- ADA: Yes
- Installation Type: Top Mount
- Mounting Hardware Included: Part # 64090012 included for countertops up to 3/4" (19mm) thick
- Template Included: No
- Recommended Installation Hardware: LK364, LK463
- Number of Bowls: 2
- Bowl 1 Length: 10"; Bowl 1 Width: 14"; Bowl 1 Depth: 6.125"
- Drain Size (Bowl 1): 3.5"
- Bowl 2 Length: 10"; Bowl 2 Width: 14"; Bowl 2 Depth: 6.125"
- Drain Size (Bowl 2): 3.5"
- Soundproofing: Bottom only pads
- Faucet Holes Configuration: 3
- Minimum Cabinet Size: 30"
- Countertop Cutout: 24-3/8" x 18-3/8" (619mm x 467mm) with 1-1/2" (38mm) corner radius
- Optional Cutting Board: CB912
- Optional Rinsing Basket: LKWRB1209SS
- Optional Drain: D1125
- Gauge: 22
- Base Material: 301CU
- Code Compliance: ADA & ICC A117.1, ASME A112.19.3/CSA B45.4, BUY AMERICAN ACT, IAPMO (cUPC_sinks)
