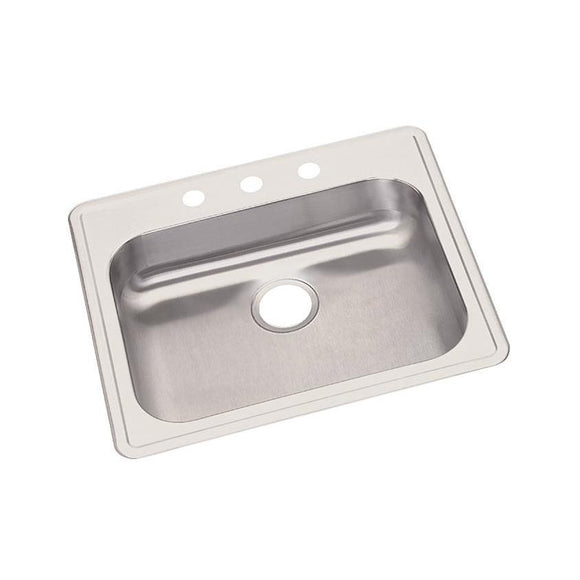

Elkay GE125223 Dayton Stainless Steel 25" x 22" x 5-3/8", Single Bowl Top Mount Kitchen Sink

Dayton offers a complete line of sinks, drains and accessories. From top mount to undermount and dual mount styles, Dayton sinks come in an array of sizes and configurations and offer product lines and packages to meet every budget. Our products are backed with the quality assurance of domestic manufacturing and great customer care.

Product Features

• ADA COMPLIANT: Product is ADA compliant when properly installed.
• TOP MOUNT INSTALLATION: Sink is designed for drop-in installation to make the sink a focal point of your room.
• SINGLE BOWL: Bowl gives you uninterrupted space for washing and stacking dishes or other household tasks.
• 300 SERIES STAINLESS STEEL: Designed for everyday use.
• QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
• U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install.
• OFFSET DRAIN: Drain placement provides more usable space on the bottom of the sink and in the cabinet below.
• LARGE CAPACITY: Straight sidewalls give the sink a flat bottom and offer more usable space for stacking, soaking and washing dishes; easy to clean.
• MADE IN THE USA: This Elkay product is proudly made in the USA.
• DRAIN OPENING: Sink drain opening measures 3-1/2".

Technical Specifications

• Length: 25"; Width: 22"; Height: 5.375"
• Sink Depth: 5.375"
• Material: Stainless Steel
• Finish: Satin
• Intended Use: Residential/Multi-Family
• ADA: Yes
• Installation Type: Top Mount
• Mounting Hardware Included: Part # 64090012 included for countertops up to 3/4" (19mm) thick
• Template Included: No
• Recommended Installation Hardware: LK364, LK463
• Number of Bowls: 1
• Bowl 1 Length: 21"; Bowl 1 Width: 22"; Bowl 1 Depth: 5.25"
• Drain Size (Bowl 1): 3.5"
• Soundproofing: Bottom only pads
• Faucet Holes Configuration: 3
• Minimum Cabinet Size: 30"
• Countertop Cutout: 24-3/8" x 21-3/8" (619mm x 543mm) with 1-1/2" (38mm) corner radius
• Optional Cutting Board: CB1516
• Optional Rinsing Basket: LKWERBSS
• Optional Drain: LK35L
• Gauge: 22
• Base Material: 301
• Code Compliance: ADA & ICC A117.1, ASME A112.19.3/CSA B45.4, BUY AMERICAN ACT, IAPMO (cUPC_sinks)
