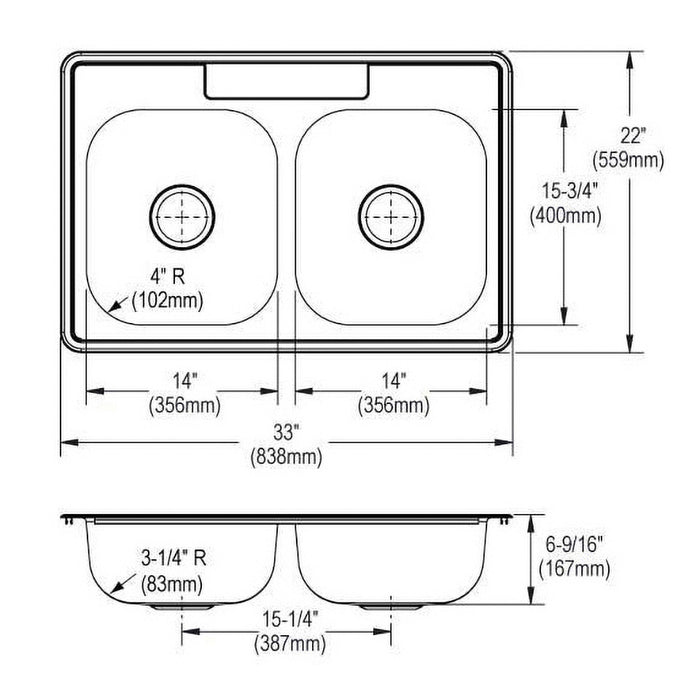

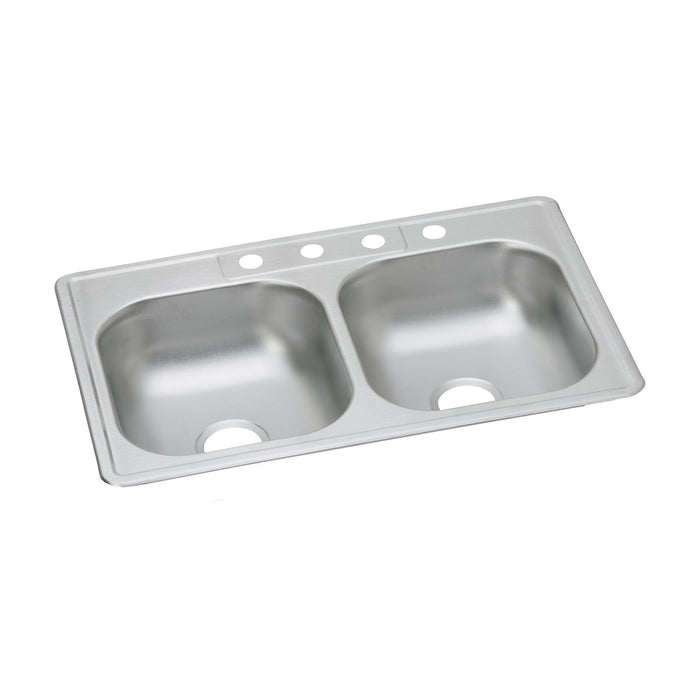

Elkay DW50233223 Double-Bowl Drop-In Sink Specifications

• Product Type: Double-Bowl Drop-In Sink
• Material: Stainless Steel
• Finish: Satin
• Length (in.): 33
• Width (in.): 22
• Height (in.): 6-9/16
• Weight (lb.): 10.5
• Mounting Type: Drop-in
• Country of Origin: United States
• ASME Standards: ASME A112.19.3
• CSA Standards: CSA B45.4
• Plumbing Certification: cUPC
• NPCC: Yes
• ADA Compliant: Yes, when properly installed
• Faucet Hole Size (in.): 1-1/2
• Chilling Capacity / Option: 8.0 GPH
• Sink Base Model: DW5023322
• Minimum Cabinet Size (in.): 36
• Number of Bowls: 2
• Sink Depth (in.): 7
• Bowl Split: 50/50
• Faucet Hole Configuration: 3
• Mounting Hardware: Part # 64090012 included for countertops up to 3/4" (19mm) thick
• Mounting Hardware Quantity: 1
• Countertop Cutout Dimensions: 32-3/8" x 21-3/8" (822mm x 543mm) with 1-1/2" (38mm) corner radius
• Stainless Steel Gauge: 22
• Sound Deadening: Bottom only pads
• Bowl 1 Shape: Rectangular
• Bowl 1 Length (in.): 14
• Bowl 1 Width (in.): 16
• Bowl 1 Depth (in.): 6
• Bowl 1 Drain Opening (in.): 4
• Bowl 1 Drain Placement: Center Center
• Bowl 2 Shape: Rectangular
• Bowl 2 Length (in.): 14
• Bowl 2 Width (in.): 15-3/4
• Bowl 2 Depth (in.): 6-3/8
• Bowl 2 Drain Opening (in.): 3-1/2
• Bowl 2 Drain Placement: Center Center

Elkay DW50233223 Double-Bowl Drop-In Sink Documentation

• Elkay DW50233223 Double-Bowl Drop-In Sink Spec Sheet
• Elkay DW50233223 Double-Bowl Drop-In Sink Use and Care Guide
• Elkay DW50233223 Double-Bowl Drop-In Sink Installation Guide

Elkay DW50233223 Drop-In Sink Installation Videos

Elkay DW50233223 Double-Bowl Drop-In Sink UPC Code: 094902450964.
