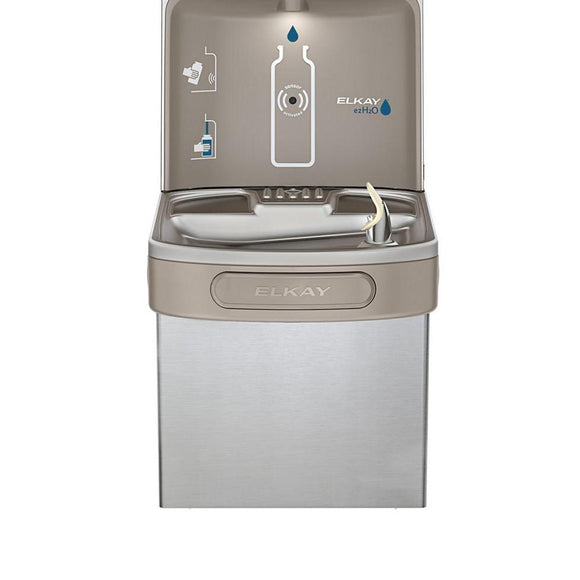

Elkay EZSDWSSK EZH2O Filling Station, Single ADA Water Cooler, Non-Filtered Non-Refrigerated

  • $1,027.24 Save $487

Free Shipping
on All Orders!

Ships within 2 - 4 weeks
Free Shipping on All Orders!


The Elkay EZH2O Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Complete cooler and bottle filling station in a consolidated space saving ADA compliant design. Bottle Filler features sanitary no-touch sensor activation with automatic 20-second shut-off timer.

Product Features

  • Touchless, sensor activation (bottle filler) designed for easy use; easy-to-operate push-bar activation (bubbler).
  • Fill rate is 1.5 GPM.
  • Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste.
  • Laminar flow provides clean fill with minimal splash.
  • Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.
  • Real drain system eliminates standing water.
  • Flexi-Guard bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms.
  • Rated for indoor use.
  • Hands-Free, Green Ticker, Laminar Flow, Antimicrobial, Real Drain

Technical Specifications

  • Length: 18.375"; Width: 19"; Height: 39.06"
  • Material: Stainless Steel
  • Finish: Stainless Steel
  • Intended Use: Schools, Hospitality, Indoor Gym/Fitness, Small Office Building, Large Office Building, High End Architectural, Healthcare Facilities, Government/Municipal, Public Facilities
  • ADA: Yes
  • Bubbler Style: Flexi-Guard Safety
  • Chilling Options: Non-Refrigerated
  • Mounting: Wall Mount (On-Wall)
  • Voltage: 115V/60Hz
  • Rated Watts: 15
  • Activation Mechanism: Electronic Bottle Filler Sensor With Electronic Front and Side Bubbler Pushbar
  • Code Compliance: ADA & ICC A117.1, ASME A112.19.3/CSA B45.4, Buy American Act, CAN/CSA C22.2 No. 120, GreenSpec, NSF 61, NSF 372 (lead free), UL 399ETL, WQA
