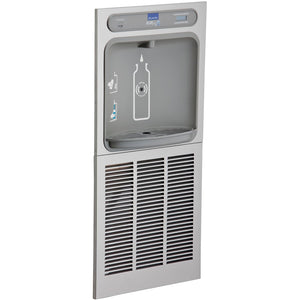

Elkay LZWSM8K EZH2O In-Wall Bottle Filling Station, Filtered 8 GPH Stainless Steel

  • $1,956.13 Save $811

Free Shipping
on All Orders!

Ships within 2 - 3 business days
Free Shipping on All Orders!


The Elkay EZH2O Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Fully recessed in-wall design. Sanitary no-touch sensor activation with automatic 20-second shut-off timer.

Product Features

  • Designed as a stand-alone unit or to be paired with Elkay SwirlFlo or Soft Sides architectural fountains.
  • Touchless, sensor activation (bottle filler) designed for easy use.
  • Fill rate is 1.1 GPM.
  • Visual filter monitor with LED filter status indicator for when filter change is necessary.
  • The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.
  • Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste.
  • Laminar flow provides clean fill with minimal splash.
  • Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.
  • Real drain system eliminates standing water.
  • Rated for indoor use.
  • Hands-Free, Visual Filter Monitor, Filtered, Green Ticker, Laminar Flow, Antimicrobial, Real Drain

Technical Specifications

  • Length: 19.75"; Width: 3.5"; Height: 40.8125"
  • Material: Stainless Steel
  • Finish: Stainless Steel
  • Intended Use: Schools, Hospitality, Indoor Gym/Fitness, Small Office Building, Large Office Building, High End Architectural, Healthcare Facilities, Government/Municipal, Public Facilities
  • ADA: Yes
  • Bubbler Style: No Bubbler
  • Chilling Options: 8.0 GPH
  • Mounting: Wall Mount (In-Wall Frame/Plate)
  • Voltage: 115V/60Hz
  • Rated Watts: 370
  • Activation Mechanism: Electronic Bottle Filler Sensor
  • Code Compliance: ADA & ICC A117.1, Buy American Act, CAN/CSA C22.2 No. 120, GreenSpec, NSF 42, NSF 53, NSF 61, NSF 372 (lead free), UL 399ETL, WQA
