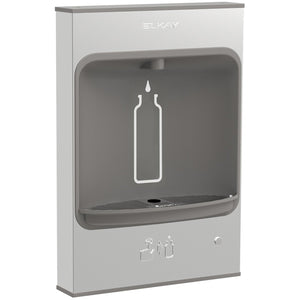

Elkay EMASM EZH2O Mechanical Filling Station Surface Mount, Non-Refrigerated

  • $767.34 Save $372

Free Shipping
on All Orders!

Ships within 2 - 4 weeks
Free Shipping on All Orders!


The Elkay EZH2O Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Non-Electric Surface mount design - ideal for installations where electrical wiring is not easily accessible or locations looking to reduce electrical usage. push-button activation delivers 1.0 gpm

Product Features

  • Mechanical push button designed for use in limited wall depth applications, for areas where electric is not available.
  • Fill rate is 1.5 GPM.
  • Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste.
  • Able to pair with a remote chiller.
  • Laminar flow provides clean fill with minimal splash.
  • Silver Ion Antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.
  • Real Drain System eliminates standing water.
  • Rated for indoor use.
  • Laminar Flow, Antimicrobial, Real Drain

Technical Specifications

  • Length: 17.875"; Width: 6.25"; Height: 25.875"
  • Material: Stainless Steel
  • Finish: Stainless Steel
  • Intended Use: Schools, Hospitality, Indoor Gym/Fitness, Small Office Building, Large Office Building, Healthcare Facilities, Government/Municipal, Public Facilities
  • ADA: Yes
  • Bubbler Style: No Bubbler
  • Chilling Options: Non-Refrigerated
  • Mounting: Wall Mount (On-Wall)
  • Full Load Amps: 0
  • Activation Mechanism: Mechanical Bottle Filler Button
  • Code Compliance: ADA & ICC A117.1, Buy American Act, GreenSpec, NSF 61, NSF 372 (lead free)WQA
