Elkay EZWSGRNM8K In-Wall Bottle Fill Station Specifications
- Product Type: In-Wall Bottle Fill Station
- Finish: Stainless Steel
- Length (in.): 19-3/4
- Width (in.): 3-1/2
- Height (in.): 40-13/16
- Country of Origin: United States
- Power Source: Hardwired
- Voltage (V): 115
- Power (W): 260
- CSA Standards: CSA C22.2 No. 120
- NSF/ANSI 61: Yes
- NSF/ANSI 372: Yes
- UL Standard: UL 399
- Lead Law Compliant: Yes
- Lead Law Third-Party Certification: Yes
- NSF/ANSI/CAN 61 / AB100 Compliance: Y
- NSF/ANSI/CAN 61 / AB100 Third-Party Certification: Y
- NSF/ANSI/CAN 61 / AB100 Marking: Y
- ADA Compliant: Yes, when properly installed
- Activation Type: Electronic Bottle Filler Sensor
- Bubbler Style: No Bubbler
- Chilling Capacity / Option: 8.0 GPH
- Mounting Type: Wall Mount (In-Wall Frame/Plate)
- Number of Stations: 1
- Installation Location: Indoor
Elkay EZWSGRNM8K In-Wall Bottle Fill Station Documentation
- Elkay EZWSGRNM8K In-Wall Bottle Fill Station Spec Sheet
- Elkay EZWSGRNM8K In-Wall Bottle Fill Station Installation Guide 1
- Elkay EZWSGRNM8K In-Wall Bottle Fill Station Installation Guide 2
- Elkay EZWSGRNM8K In-Wall Bottle Fill Station Installation Guide 3
Elkay EZWSGRNM8K Bottle Filling Station Installation Video
Elkay EZWSGRNM8K In-Wall Bottle Fill Station UPC Code: 094902766966.

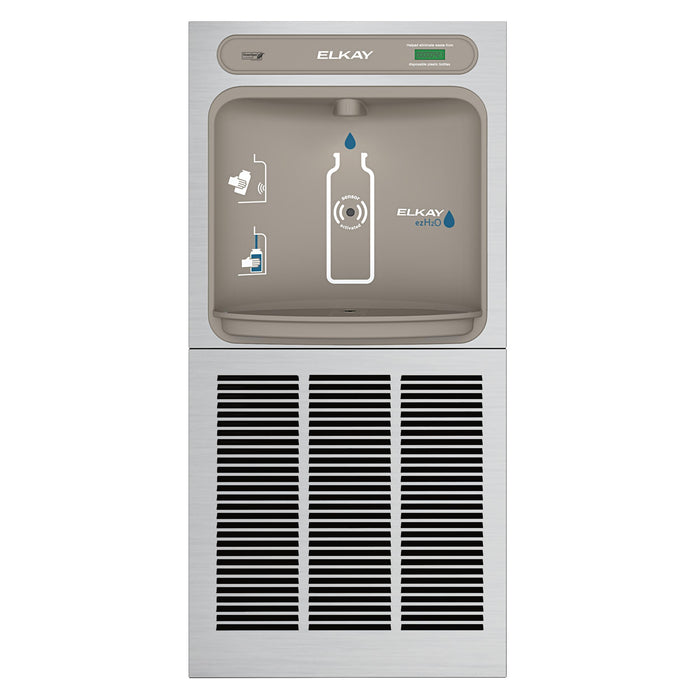

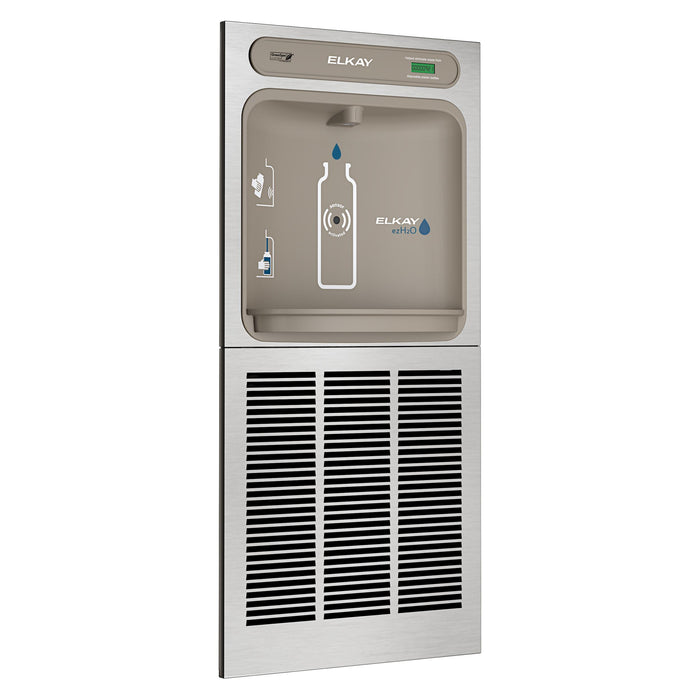

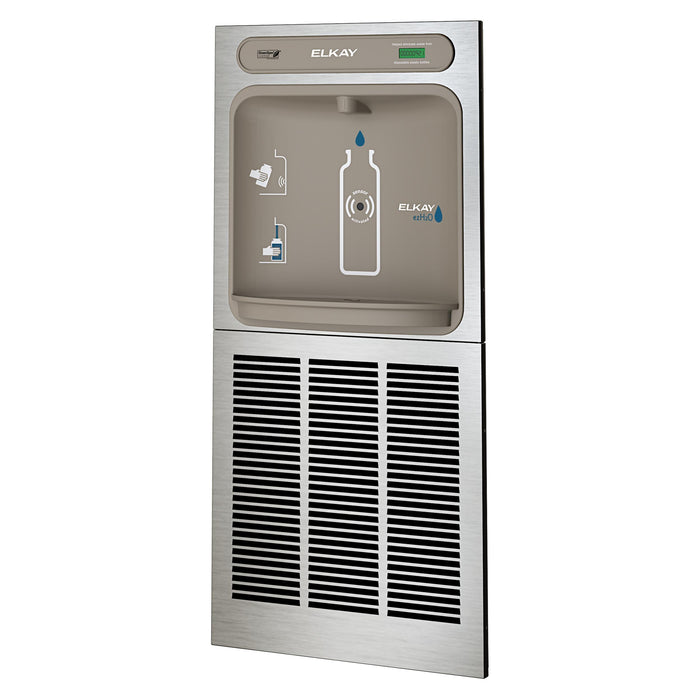

Elkay EZWSGRNM8K In-Wall Bottle Fill Station in Stainless Steel
by Elkay
Sold out
Original price
$5,260.00
Original price
$5,260.00
-
Original price
$5,260.00
Original price
$5,260.00
Current price
$3,185.99
$3,185.99
-
$3,185.99
Current price
$3,185.99
Out of stock
Free 1-3 Day Delivery
|
No tax outside of CA, IL, NJ, PA, and WA.
The Elkay EZWSGRNM8K is an in-wall bottle fill station in stainless steel. The Elkay ezH2O Bottle Filling Station delivers a quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Fully recessed in-wall design with high-efficiency ECH8GRN water chiller.
Elkay EZWSGRNM8K In-Wall Bottle Fill Station Features
- Designed as a stand-alone unit or to be paired with Elkay SwirlFlo or Soft Sides¨ architectural fountains.
- Hermetically sealed refrigeration system provides chilled water to satisfy thirst.
- Touchless, sensor-activated bottle filler designed for easy use.
- Fill rate is 1.1 GPM.
- High-performance compressor and insulation greatly reduces energy consumption.
- Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste.
- Key plastic components are manufactured with silver ion antimicrobial agent helping to provide clean, stain- and odor-free surfaces.
- Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.
- Real drain system eliminates standing water.
- Rated for indoor use.
- Hands-free operation.
- High Efficiency.
- Laminar water flow.
- Kit components: ECH8GRN, EZWSM8C, MFWS100.
- Included with product: Bottle Filler (EZWSM8C), Mounting Frame (MFWS100), Chiller (ECH8GRN).
