Elkay LK940HA08L2H Wall Faucet 8" High Arc Spout 2" Handle Specifications
- Product Type: Wall Faucet 8" High Arc Spout 2" Handle
- Material: Chrome-plated Brass
- Finish: Chrome

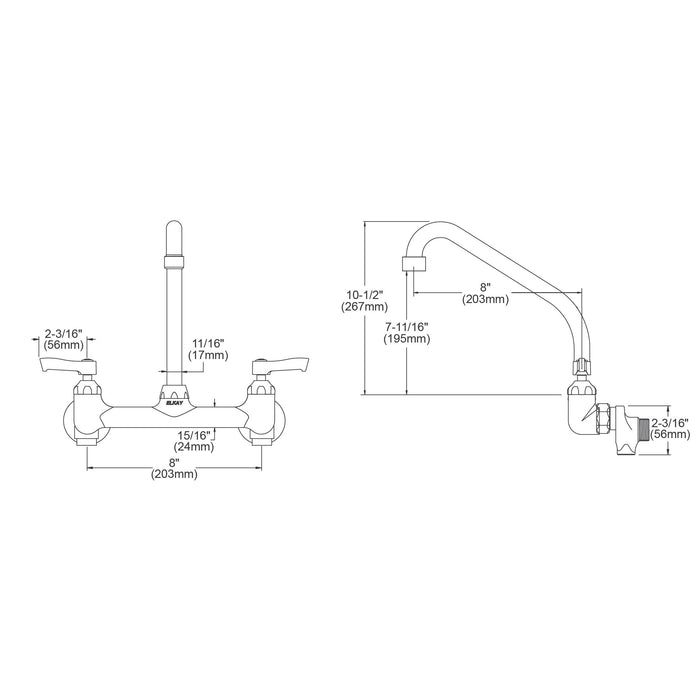

- Length (in.): 8
- Width (in.): 8
- Height (in.): 10-1/2
- Weight (lb.): 6
- Mounting Type: Wall-mount
- Country of Origin: China
- CEC Listed: Yes
- ASME Standards: ASME A112.18.1
- CSA Standards: CSA B125.1
- NSF/ANSI 61: Yes
- NSF/ANSI 372: Yes
- Plumbing Certification: cUPC
- NPCC: Yes
- Lead Law Compliant: Yes
- Lead Law Third-Party Certification: Yes
- NSF/ANSI/CAN 61 / AB100 Compliance: Y
- NSF/ANSI/CAN 61 / AB100 Third-Party Certification: Y
- NSF/ANSI/CAN 61 / AB100 Marking: Y
- ADA Compliant: Yes, when properly installed
- Connection 1: Shutoff Valve 1/2" NPT FM Inlt
- Connection 2: Shutoff Valve 1/2" NPT FM Inlt
- Cartridge Type: Quarter Turn Ceramic Disc
- Number of Handles: 2
- Handle Type: 2" Lever Handle
- Spout Height (in.): 10-1/2
- Spout Reach (in.): 8
- Spout Type: High Arc
- Deck Clearance (in.): 7-11/16
- Faucet Hole Size (in.): 1-1/2
- Faucet Hole Spread (in.): 8
- Faucet Holes Required: 2
Elkay LK940HA08L2H Wall Faucet 8" High Arc Spout 2" Handle Documentation
- Elkay LK940HA08L2H Wall Faucet 8" High Arc Spout 2" Handle Spec Sheet
- Elkay LK940HA08L2H Wall Faucet 8" High Arc Spout 2" Handle Use and Care Guide
- Elkay LK940HA08L2H Wall Faucet 8" High Arc Spout 2" Handle Installation Guide
Elkay LK940HA08L2H Wall Faucet 8" High Arc Spout 2" Handle UPC Code: 094902393759.

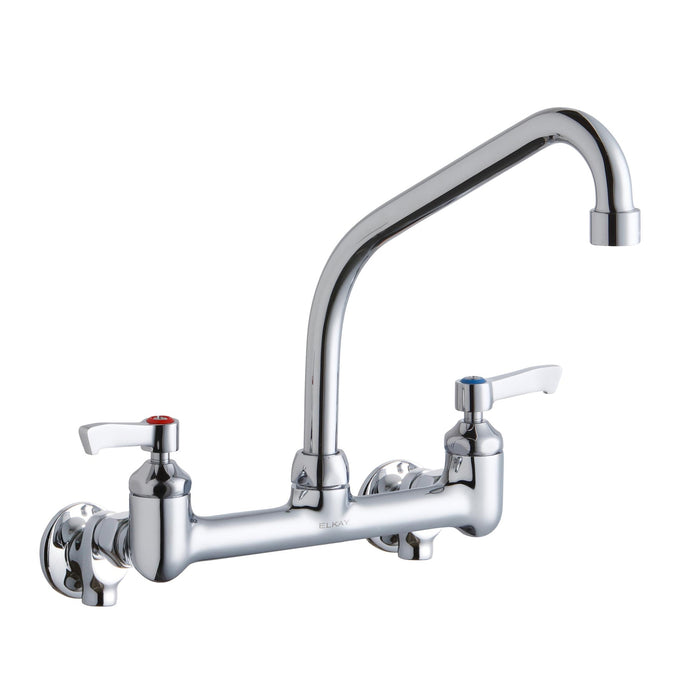

Elkay LK940HA08L2H Wall Faucet 8" High Arc Spout 2" Handle in Chrome
New to Bath4All? Email us with any questions or use the chat. Chat is loading. Please try again in a moment.
Elkay LK940HA08L2H features a wall faucet 8" high arc spout 2" handle in chrome. ADA compliant when properly installed.
Elkay LK940HA08L2H Wall Faucet 8" High Arc Spout 2" Handle Features
- Certified and tested to NSF/ANSI/CAN 61 and 372 to meet all federal and state regulations for low or no-lead products.
- Includes water-saving features.
- Built for long-term durability.
- Comes installed with 1.5 GPM water-saving, vandal-resistant aerator; 2.2 and.5 GPM aerator inserts also included.
- Special pin locks faucet into stationary position for required applications.
- Adjustable water inlets with shutoffs that stop water flow at the faucet for easy maintenance.
- Faucet designed to be installed using two faucet holes.
- Low-flow design.
- Solid Brass Construction.
- Spout Swing Restriction Pin.
- 1/2" adjustable inlets with integral stops.
- Note: 1.5 GPM VR aerator installed with 2.2 and.5 GPM inserts included.
