Elkay LR15172 Single-Bowl Drop-In Bar/Prep Sink Documentation
- Elkay LR15172 Single-Bowl Drop-In Bar/Prep Sink Spec Sheet
- Elkay LR15172 Single-Bowl Drop-In Bar/Prep Sink Use and Care Guide
- Elkay LR15172 Single-Bowl Drop-In Bar/Prep Sink Installation Guide
- Elkay LR15172 Single-Bowl Drop-In Bar/Prep Sink Product Warranty
- Elkay LR15172 Single-Bowl Drop-In Bar/Prep Sink Installation Guide
Product Video
Elkay LR15172 Single-Bowl Drop-In Bar/Prep Sink UPC Code: 094902070216

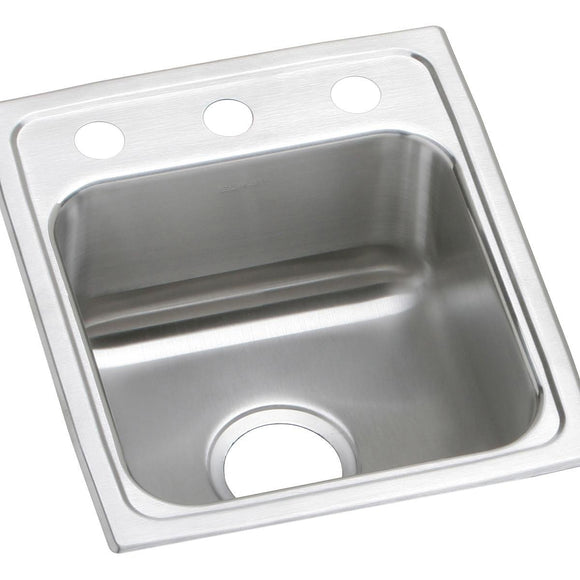

Elkay LR15172 Lustertone Stainless Steel 15" x 17-1/2" x 7-5/8", 1-Bowl Top Mount Bar Sink
New to Bath4All? Email us with any questions or use the chat. Chat is loading. Please try again in a moment.
Black Friday/Cyber Monday pricing
Black Friday Price — Locked In Through End of 2026
This is our lowest price of the season. If it drops, we'll
Our Black Friday Price Promise
This year we didn't want you to wait. We lowered prices to Black Friday/Cyber Monday levels on November 1 — and if our price on your item drops before the end of 2026, we'll refund the difference.
Click here to submit a case.
Frequently Asked Questions
• What if my order arrives damaged?
While we take great care in the packaging and handling of orders, we ask that customers inspect all shipments within 48 hours of delivery, and in the rare event that your order arrives damaged, please send us an email with a photo showing the damages (so we can file a claim with the carrier), and let us know whether you prefer a free replacement or a refund.
• Why do you ask for phone numbers during checkout?
Some shipping carriers, especially those handling freight, require a phone number to coordinate your delivery. We respect your privacy and guarantee that any information you provide will never be shared with third parties, except for shipping purposes.
The Elkay LR15172 is a single-bowl drop-in bar/prep sink in Lustrous Satin. The rich, uniform grain is scratch resistant for heavy-duty use, whether it's a kitchen sink or a prep, bar, laundry or commercial sink. Light scratches, which occur with everyday use, naturally blend into the finish of this durable sink with time.
Elkay LR15172 Single-Bowl Drop-In Bar/Prep Sink Features
- Finish is scratch resistant, standing up to everyday use. Deep scratches are repairable. Grain radiates light for a luminous look.
- Drop-in installation places the finished rim above the countertop.
- Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty.
- Sound-deadening pads reduce noise and vibration during use.
- Mounting clips slide into the U-channel before installation to simplify work beneath the sink.
- Made in the USA.
Elkay LR15172 Single-Bowl Drop-In Bar/Prep Sink Specifications
- Product Type: Single-Bowl Drop-In Bar/Prep Sink
- Material: Stainless Steel
- Finish: Lustrous Satin
- Length (in.): 15
- Width (in.): 17.5
- Height (in.): 7.625
- Weight (lb.): 9.75
- Mounting Type: Drop-in
- Country of Origin: United States
- ADA Compliant: No
- Style: Traditional
- Room / Application: Bar/Prep
- Sink Base Model: LR1517
- Minimum Cabinet Size (in.): 18
- Number of Bowls: 1
- Sink Depth (in.): 7.625
- Faucet Hole Configuration: 2
- Mounting Hardware: Part # 64090010 included for countertops up to 3/4" (19mm) thick
- Mounting Hardware Quantity: 1
- Countertop Cutout Dimensions: 14-3/8" x 16-7/8" (365mm x 429mm) with 1-1/2" (38mm) corner radius
- Capacity to Overflow (gal.): 4.3
- Stainless Steel Gauge: 18
- Sound Deadening: Bottom only pads
- Bowl 1 Shape: Square
- Bowl 1 Length (in.): 12
- Bowl 1 Width (in.): 12
- Bowl 1 Depth (in.): 7.5
- Bowl 1 Drain Opening (in.): 3.5
- Bowl 1 Drain Placement: Center Center
- Intended Use: Residential/Multi-Family
- Template Included: No
- Recommended Installation Hardware: LK364, LK463
- Optional Soap Dispenser: LKGT1054
- Optional Cutting Board: CB912
- Optional Rinsing Basket: LKWRB1209SS
- Optional Drain: LK99
- Optional Faucet: LKGT1042, LKGT2042
- Base Material: 304
- Code Compliance: ASME A112.19.3/CSA B45.4, BUY AMERICAN ACT, IAPMO (cUPC_sinks)
