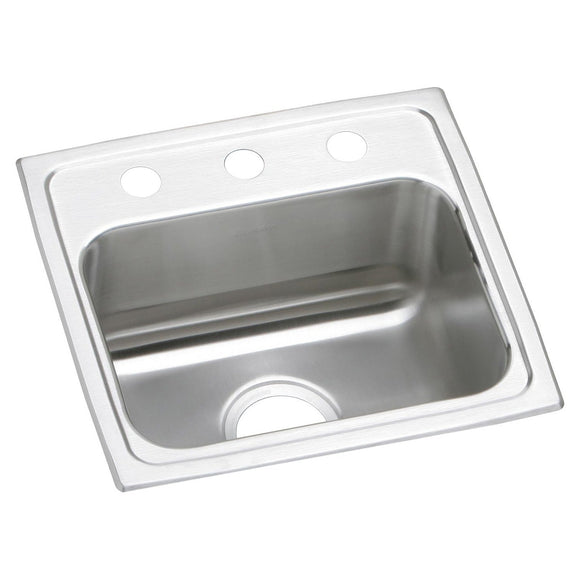

Elkay LR17163 Lustertone Stainless Steel 17" x 16" x 7-5/8", Single Bowl Top Mount Kitchen Sink
on All Orders!
No Sales Tax Outside of PA!
An Elkay Lustertone sink looks as great on day 3,000 as it does on day one. Our signature finish is handcrafted with a rich, uniform grain that adds to the beauty of the sink. Light scratches, which occur with everyday use, naturally blend into the finish with time.
- LUSTERTONE FINISH: Durable, handcrafted finish looks as great on day 3,000 as on day one. Light scratches naturally blend into sink finish with time.
- TOP MOUNT INSTALLATION: Sink is designed for drop-in installation to make the sink a focal point of your room.
- SINGLE BOWL: Bowl gives you uninterrupted space for washing and stacking dishes or other household tasks.
- 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty.
- QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
- U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install.
- LARGE CAPACITY: Straight sidewalls give the sink a flat bottom and offer more usable space for stacking, soaking and washing dishes; easy to clean.
- MADE IN THE USA: This Elkay product is proudly made in the USA.
- DRAIN OPENING: Sink drain opening measures 3-1/2".
- CABINET SIZE: Minimum cabinet size for this sink is 21".
- Length: 17"; Width: 16"; Height: 7.625"
- Sink Depth: 7.625"
- Style: Traditional
- Material: Stainless Steel
- Finish: Lustertone
- Intended Use: Residential/Multi-Family
- ADA: No
- Installation Type: Top Mount
- Mounting Hardware Included: Part # 64090010 included for countertops up to 3/4" (19mm) thick
- Template Included: No
- Recommended Installation Hardware: LK364, LK463
- Number of Bowls: 1
- Bowl 1 Length: 14"; Bowl 1 Width: 10"; Bowl 1 Depth: 7.5"
- Drain Size (Bowl 1): 3.5"
- Soundproofing: Sides and Bottom pads
- Faucet Holes Configuration: 3
- Minimum Cabinet Size: 21"
- Countertop Cutout: 16-3/8" x 15-3/8" (416mm x 391mm) with 1-1/2" (38mm) corner radius
- Optional Soap Dispenser: LKGT1054
- Optional Rinsing Basket: LKWRB1209SS
- Optional Drain: LK99; Optional Faucet: LKGT1041, LKGT2041
- Gauge: 18
- Base Material: 304
- Code Compliance: ASME A112.19.3/CSA B45.4, BUY AMERICAN ACT, IAPMO (cUPC_sinks)
